Piston - Pin Connecting Rod Assembly, Floating Pin: Disassembly

WARNING: This page is about a different car, the 2003 Mercury Marauder. However, it is still accessible from the selected car via links, so may be relevant.

Remove the clips.

Fig 1: Removing Clips
Courtesy of FORD MOTOR CO.
Remove the piston pin from the piston and connecting rod assembly.

Fig 2: Removing Piston Pin From Piston And Connecting Rod Assembly
Courtesy of FORD MOTOR CO.

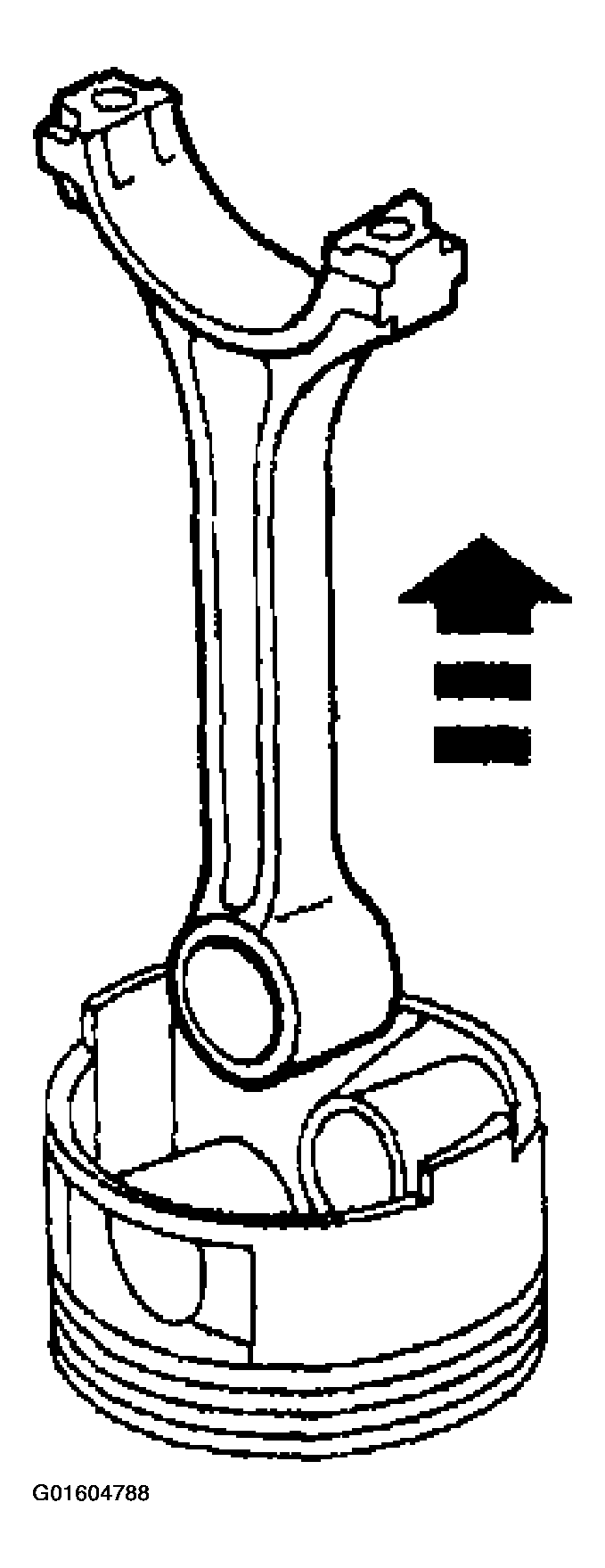

Remove the connecting rod from the piston.

Fig 3: Removing Connecting Rod From Piston
Courtesy of FORD MOTOR CO.
Clean and inspect the piston and connecting rod. For additional information, refer to ENGINE COOLING .
