Fuel Pump Module: Removal

  1. Remove the fuel tank. For additional information, REFER to FUEL TANK .
  2. Disconnect the pressure transducer connector on the top rear corner of the fuel tank.
  3. Clean the area around the fuel pump mounting flange.
    CAUTION: The fuel pump must be handled carefully to avoid damage to the float arm and the filter.
  4. Remove the bolts and the fuel pump.

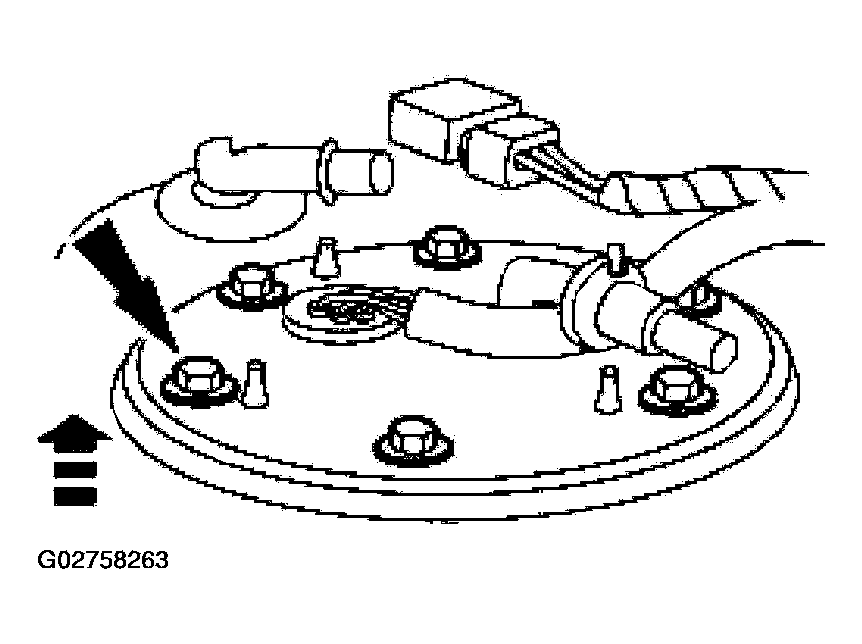

    Fig 1: Removing Bolts And Fuel Pump
    G02758263Courtesy of FORD MOTOR CO.
  5. Remove and discard the fuel pump mounting gasket.
