Ball Joint





Front Lower Balljoint

Measurement Between lower control arm and knuckle

Deflection 0-0.008 in (0-0.2mm)

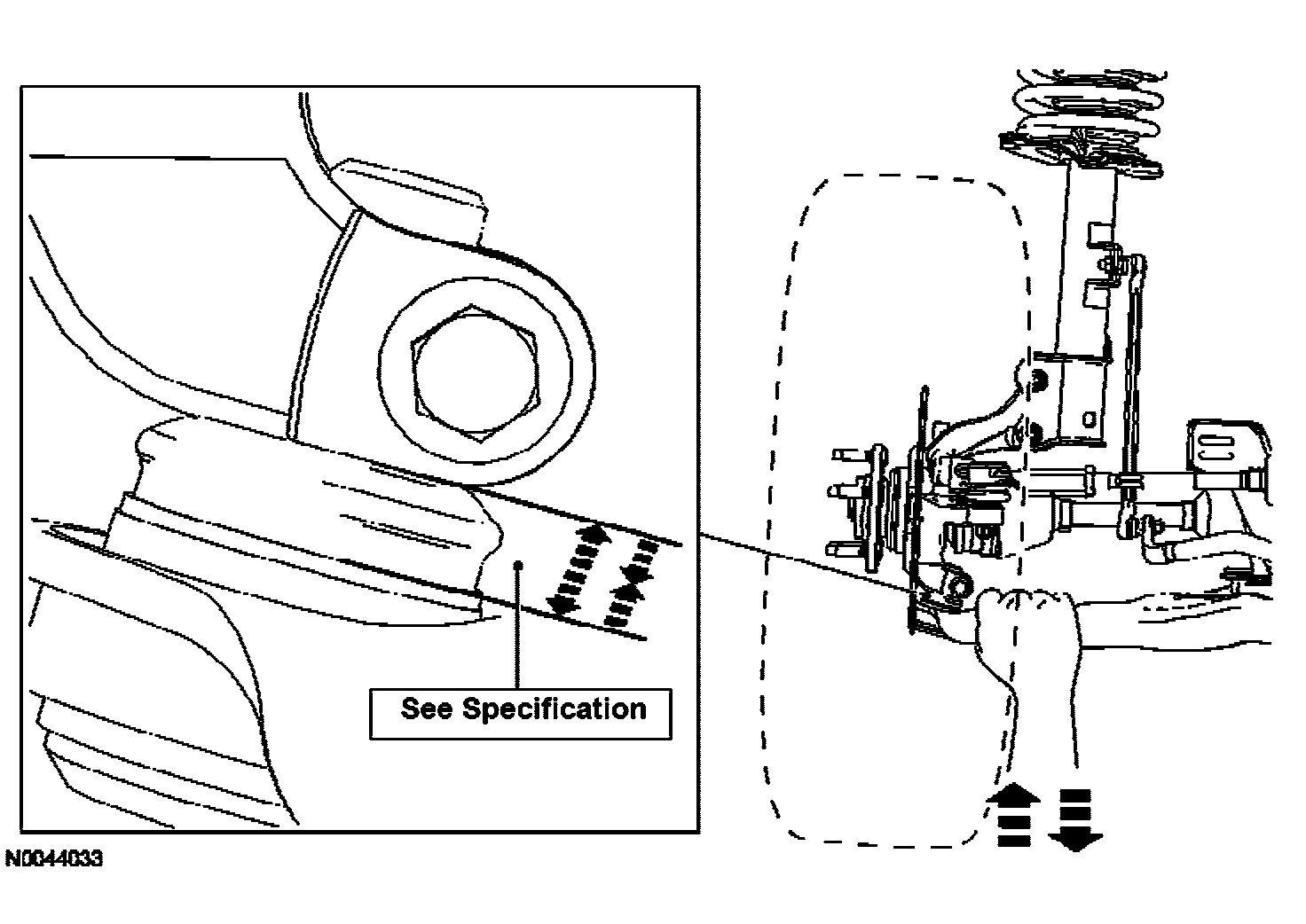

Reference Diagram D
