Test B

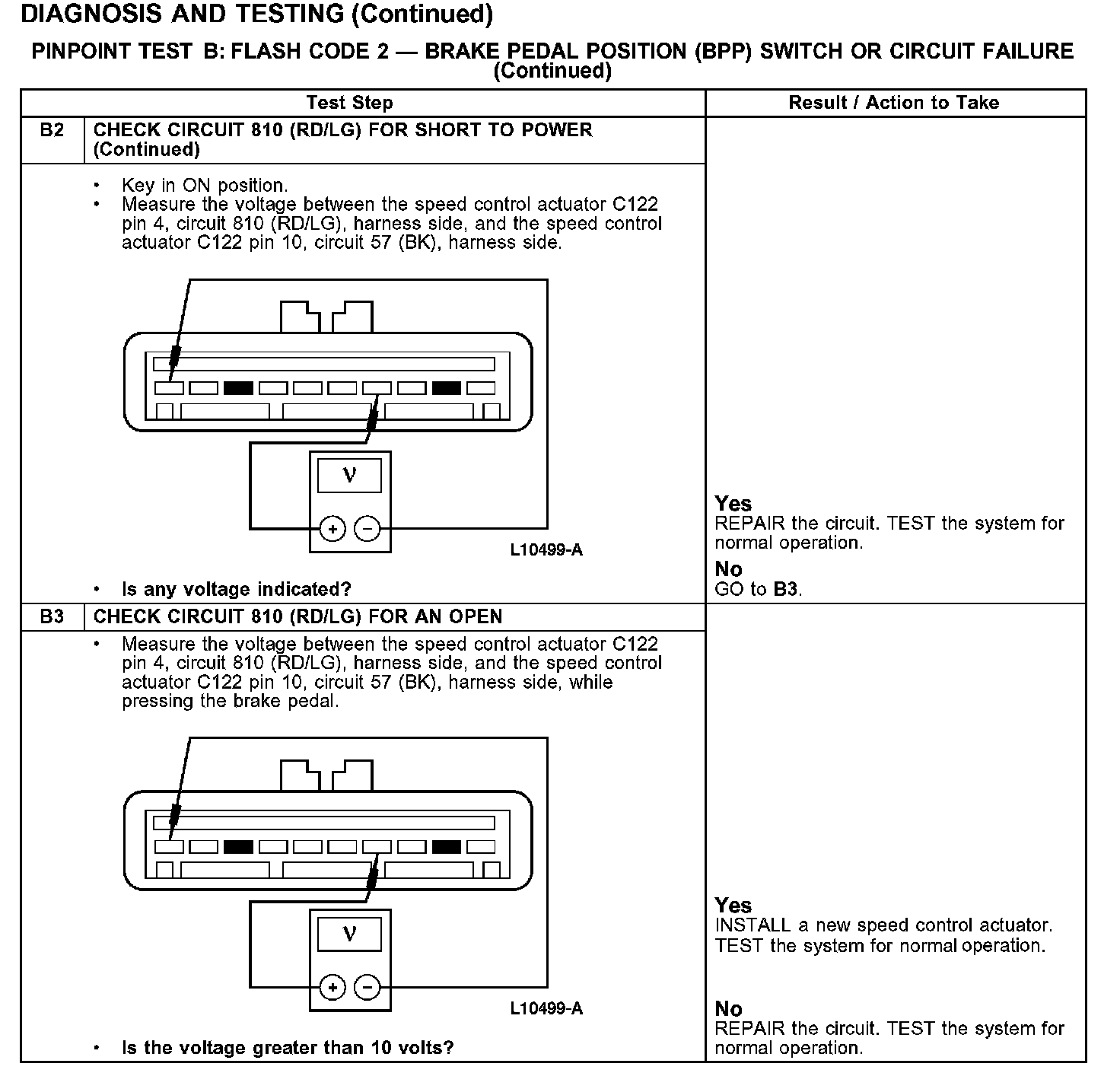

PINPOINT TEST B: FLASH CODE 2 - BRAKE PEDAL POSITION SWITCH OR CIRCUIT FAILURE


Test B1-B2:






Test B2-B3:
