Rear

Rear Suspension - Four Door - Part 1 of 3:



Rear Suspension - Four Door - Part 2 of 3:



Rear Suspension - Four Door - Part 3 of 3:

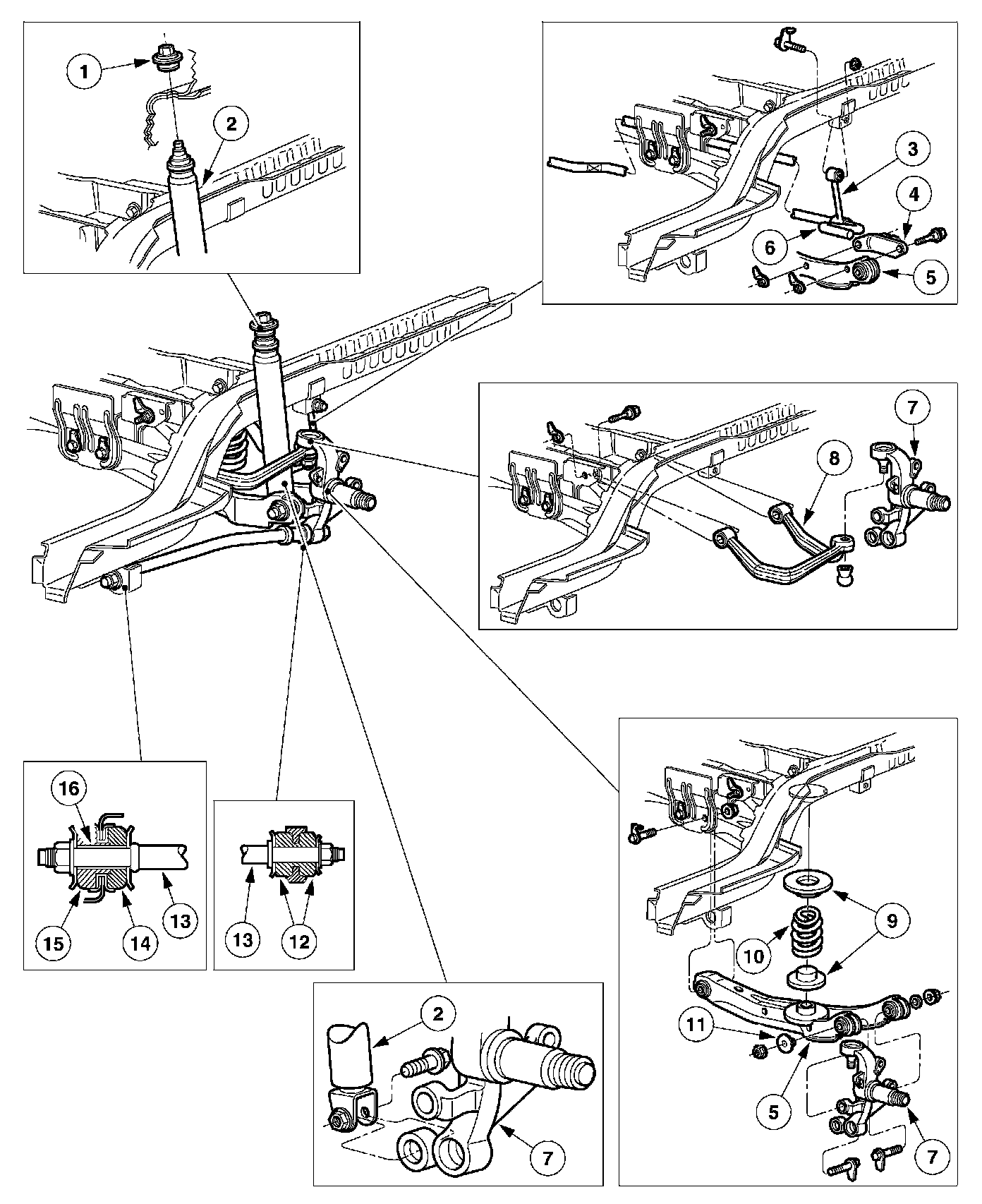

Rear Suspension - Station Wagon - Part 1 of 3:



Rear Suspension - Station Wagon - Part 2 of 3:



Rear Suspension - Station Wagon - Part 3 of 3:

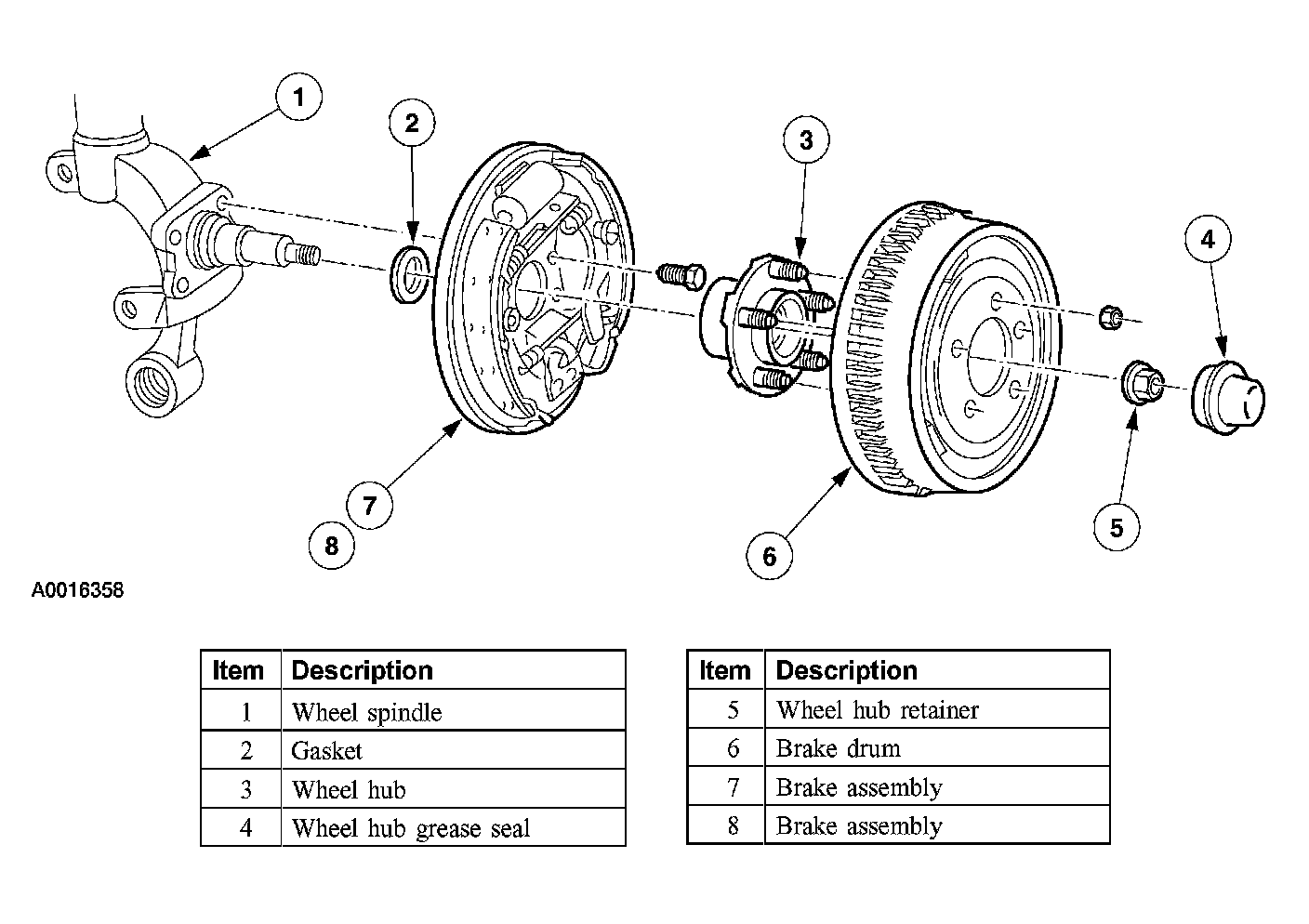

Wheel Assembly - Four Door:

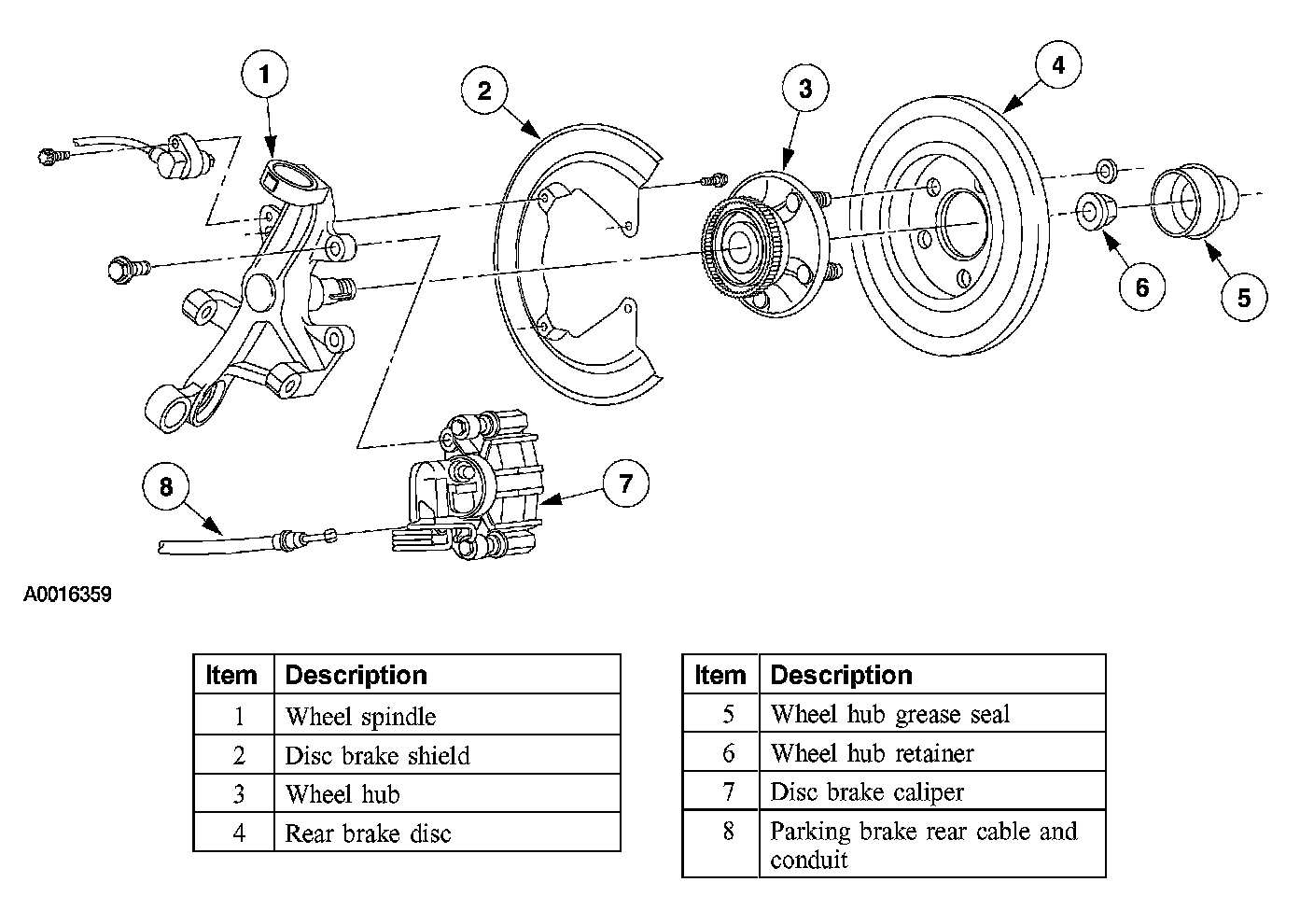

Wheel Assembly - Station Wagon:
