Accelerator Pedal and Shaft: Notes

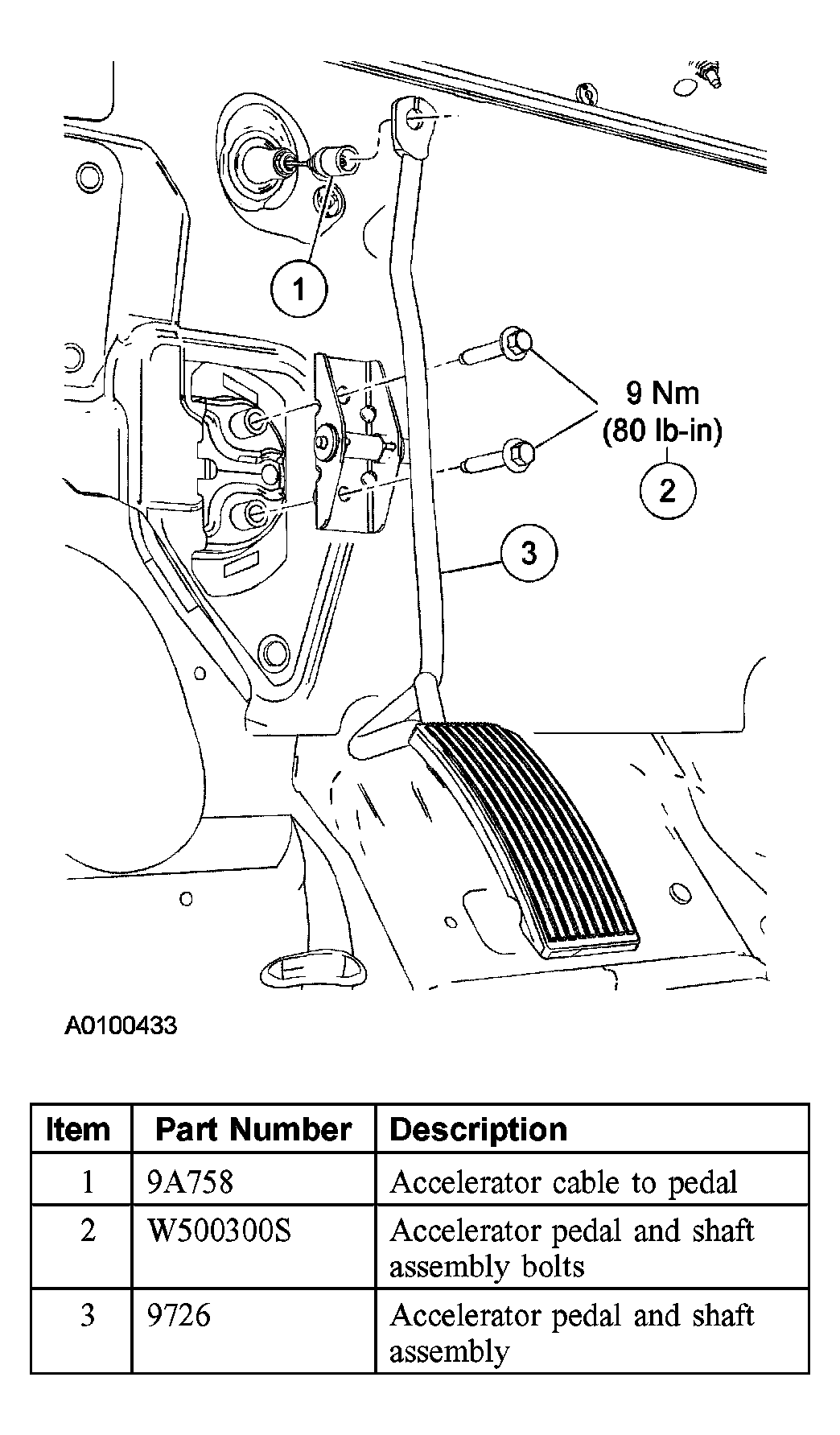

Fig 1: Replacement Components With Torque Specifications Of Accelerator Pedal And Shaft
G03902070Courtesy of FORD MOTOR CO.
