Removal and Installation

  1. Release the tab in the slot and slide the heated seat module off the bracket. Disconnect and remove the heated seat module.

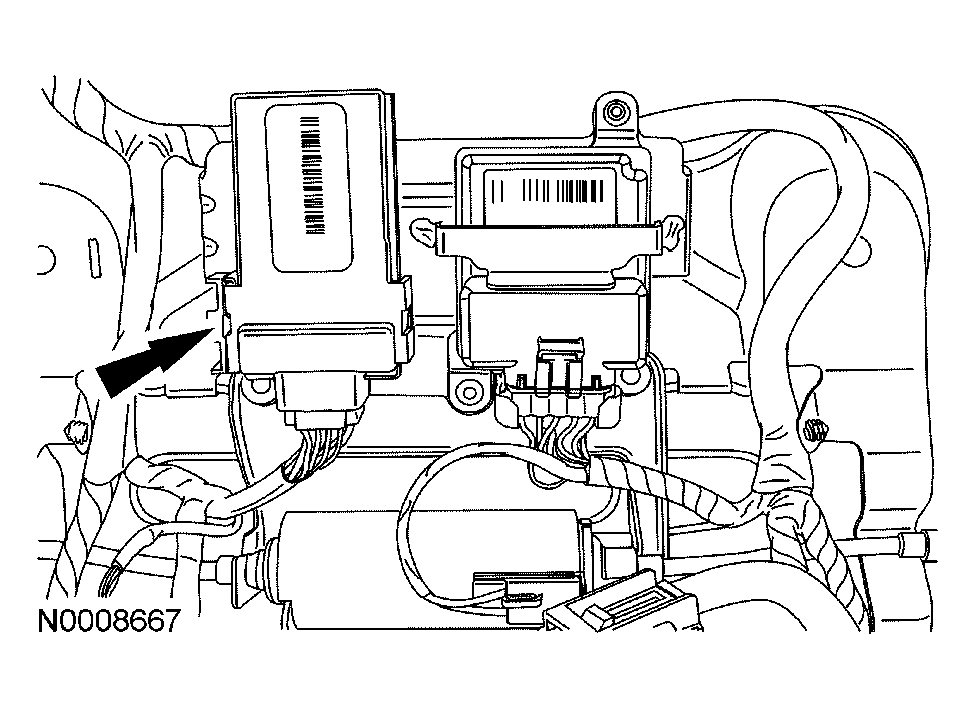

    Fig 1: Disconnecting Heated Seat Module
    G03988896Courtesy of FORD MOTOR CO.
  2. To install, reverse the removal procedure.
