Seat - Front: Notes

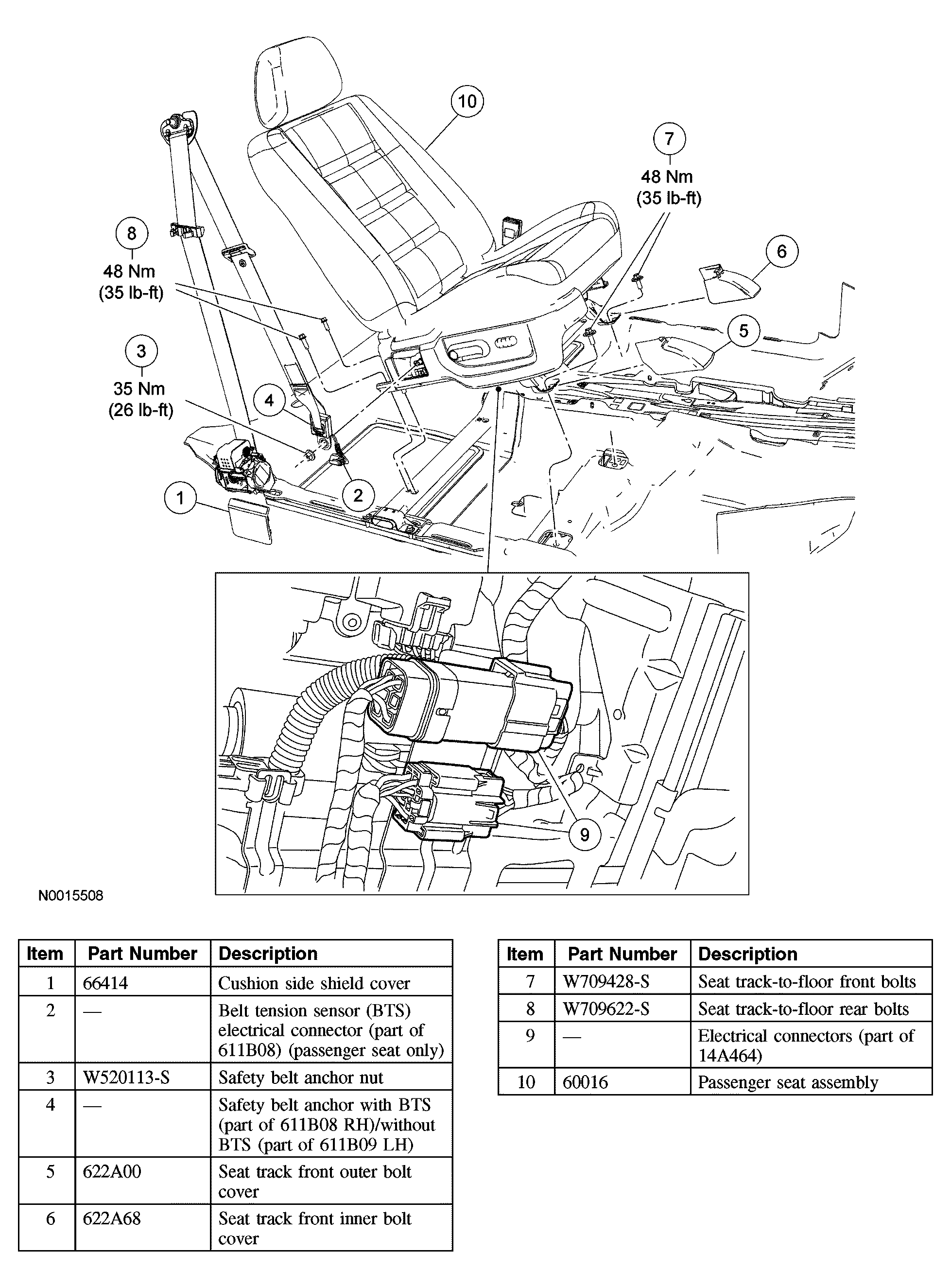

Fig 1: Identifying Seat - Front
G03988873Courtesy of FORD MOTOR CO.

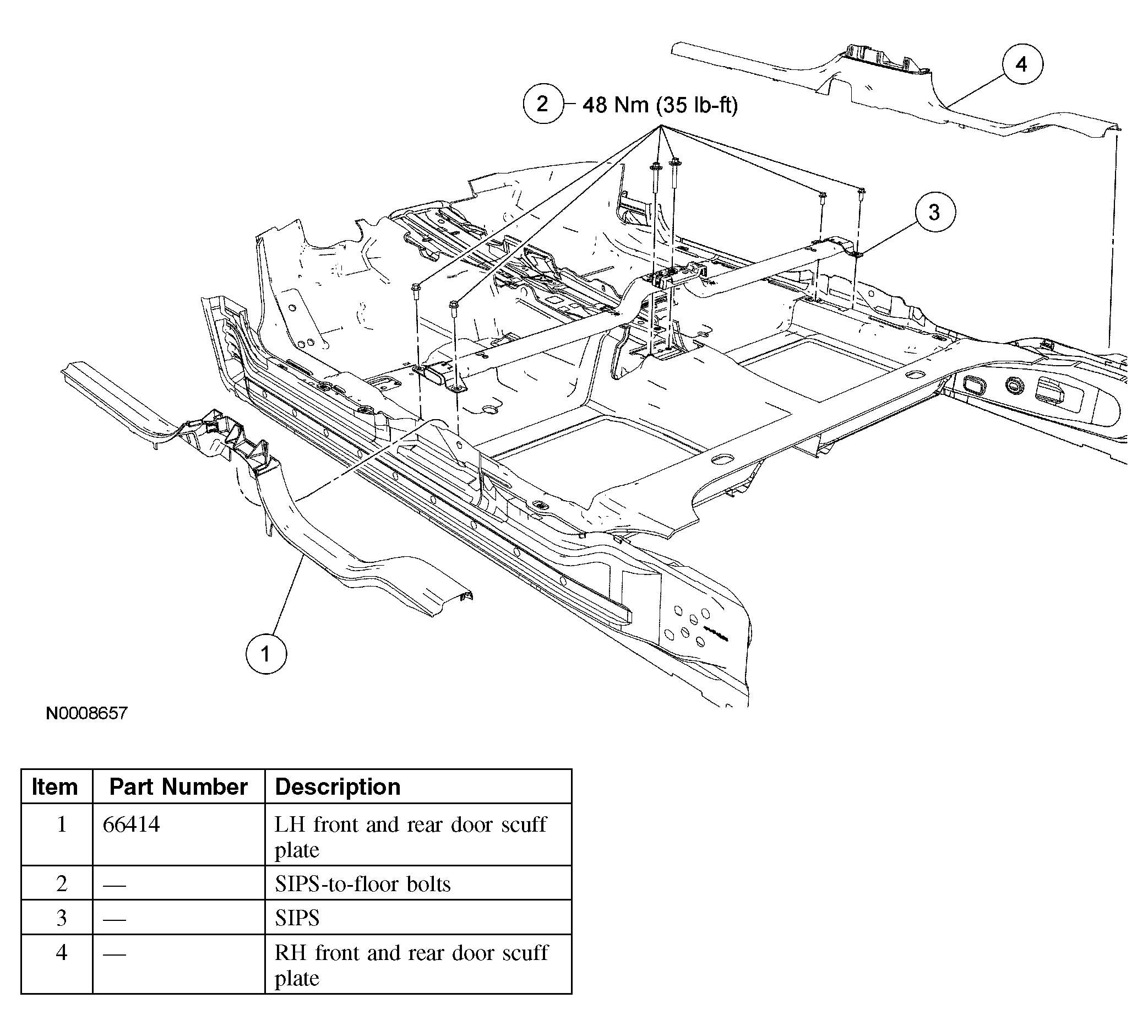

Fig 2: Identifying Side Impact Protection System (SIPS)
G03988874Courtesy of FORD MOTOR CO.
