Rear Toe Adjustment

  1. Loosen the toe link nut approximately one full turn.

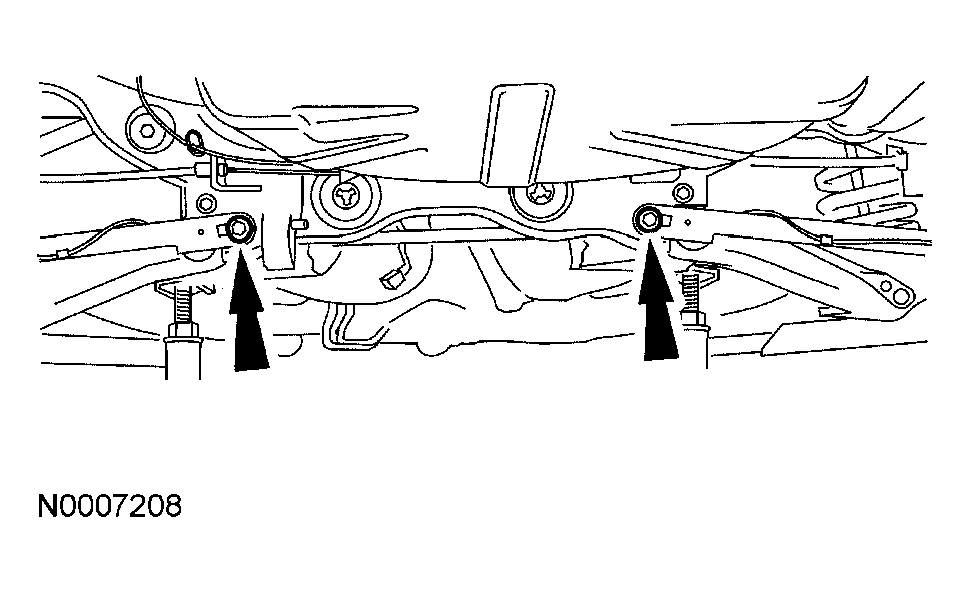

    Fig 1: Identifying Rear Toe Adjustment Point
    G03988273Courtesy of FORD MOTOR CO.
  2. From the opposite side, rotate the toe link bolt to achieve the specified toe setting.
    3. CAUTION: Make sure that the toe settings are not disturbed while tightening the nuts.
  3. While holding the toe link bolt, tighten the nut to 100 Nm (74 lb-ft).
