Forward Clutch: Disassembly

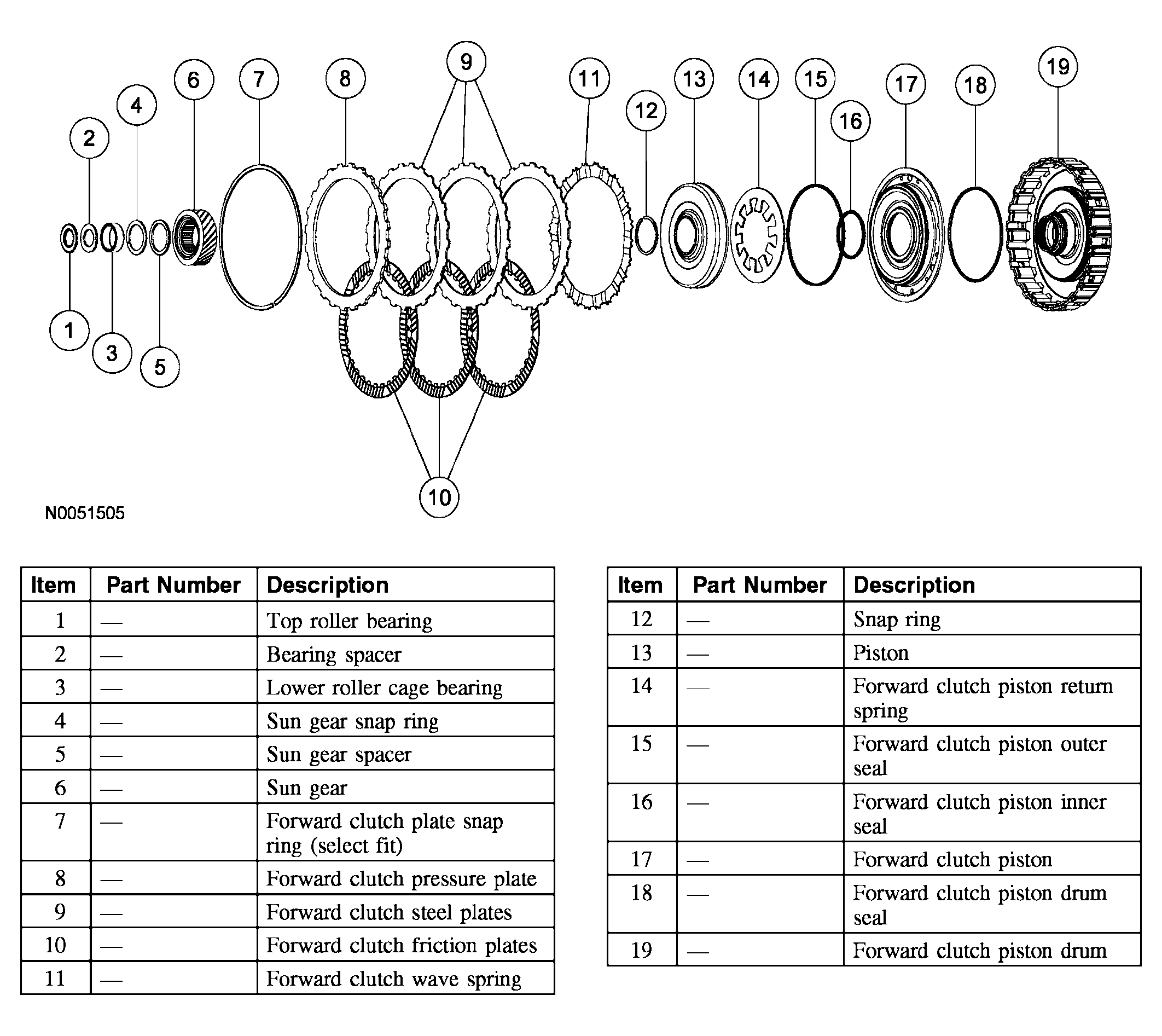

Fig 1: Forward Clutch Assembly - Disassembled View

Courtesy of FORD MOTOR CO.

Remove the forward clutch pack snap ring.

Fig 2: Removing Forward Clutch Pack Snap Ring
Courtesy of FORD MOTOR CO.
Remove the forward clutch plates: pressure plate, steel plates, friction plates and wave spring.

Fig 3: Removing Forward Clutch Plates
Courtesy of FORD MOTOR CO.
Using the special tool, remove and discard the forward clutch piston retaining ring.

Fig 4: Removing Forward Clutch Piston Retaining Ring
Courtesy of FORD MOTOR CO.
Remove the piston cover.

Fig 5: Removing Piston Cover
Courtesy of FORD MOTOR CO.
Remove the return spring.

Fig 6: Removing Return Spring
Courtesy of FORD MOTOR CO.
Remove the piston.

Fig 7: Removing Piston
Courtesy of FORD MOTOR CO.

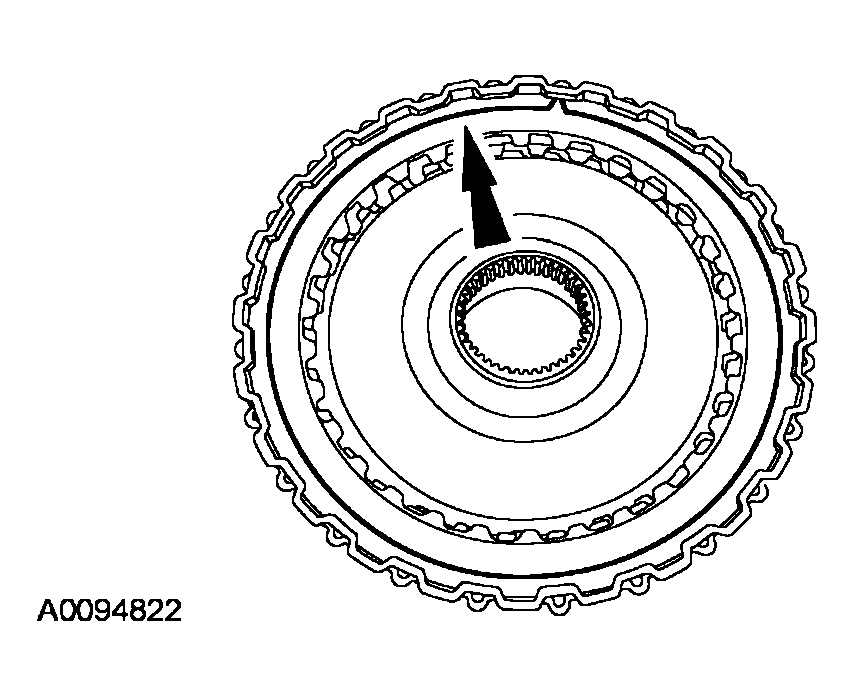

Remove and discard the inner and outer piston seals.

Fig 8: Removing Inner And Outer Piston Seals
Courtesy of FORD MOTOR CO.

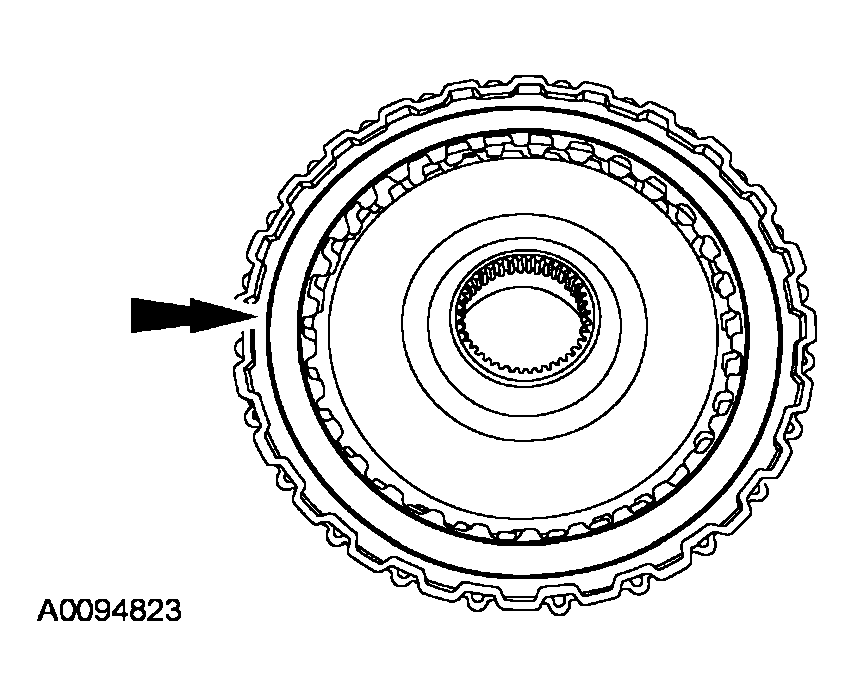

Remove and discard the clutch housing seal.

Fig 9: Removing Clutch Housing Seal
Courtesy of FORD MOTOR CO.
