Side Shaft Gear Assembly: Assembly

  1. If removed, press the gear assembly into the cover.
    Fig 1: Pressing Gear Assembly Into Cover
    G03991126Courtesy of FORD MOTOR CO.
  2. If removed, install a new snap ring.

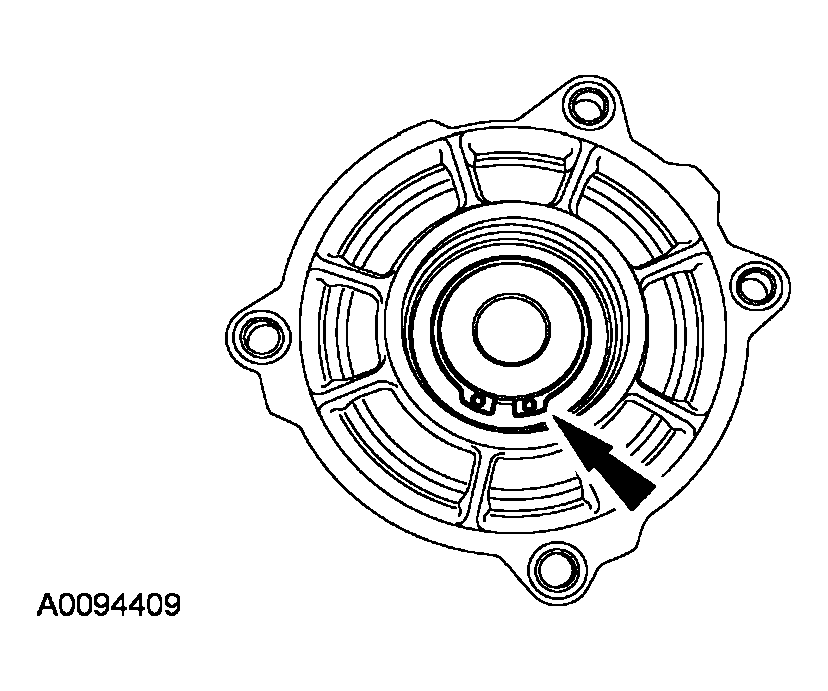

    Fig 2: Installing Snap Ring
    G03991123Courtesy of FORD MOTOR CO.
  3. Using the special tool, install a new rubber dust cover.
    Fig 3: Installing Rubber Dust Cover
    G03991128Courtesy of FORD MOTOR CO.
  4. Install a new side gear assembly O-ring seal.
    Fig 4: Installing Side Gear Assembly O-Ring Seal
    G03990771Courtesy of FORD MOTOR CO.
