Mass Air Flow (MAF) Sensor: Notes

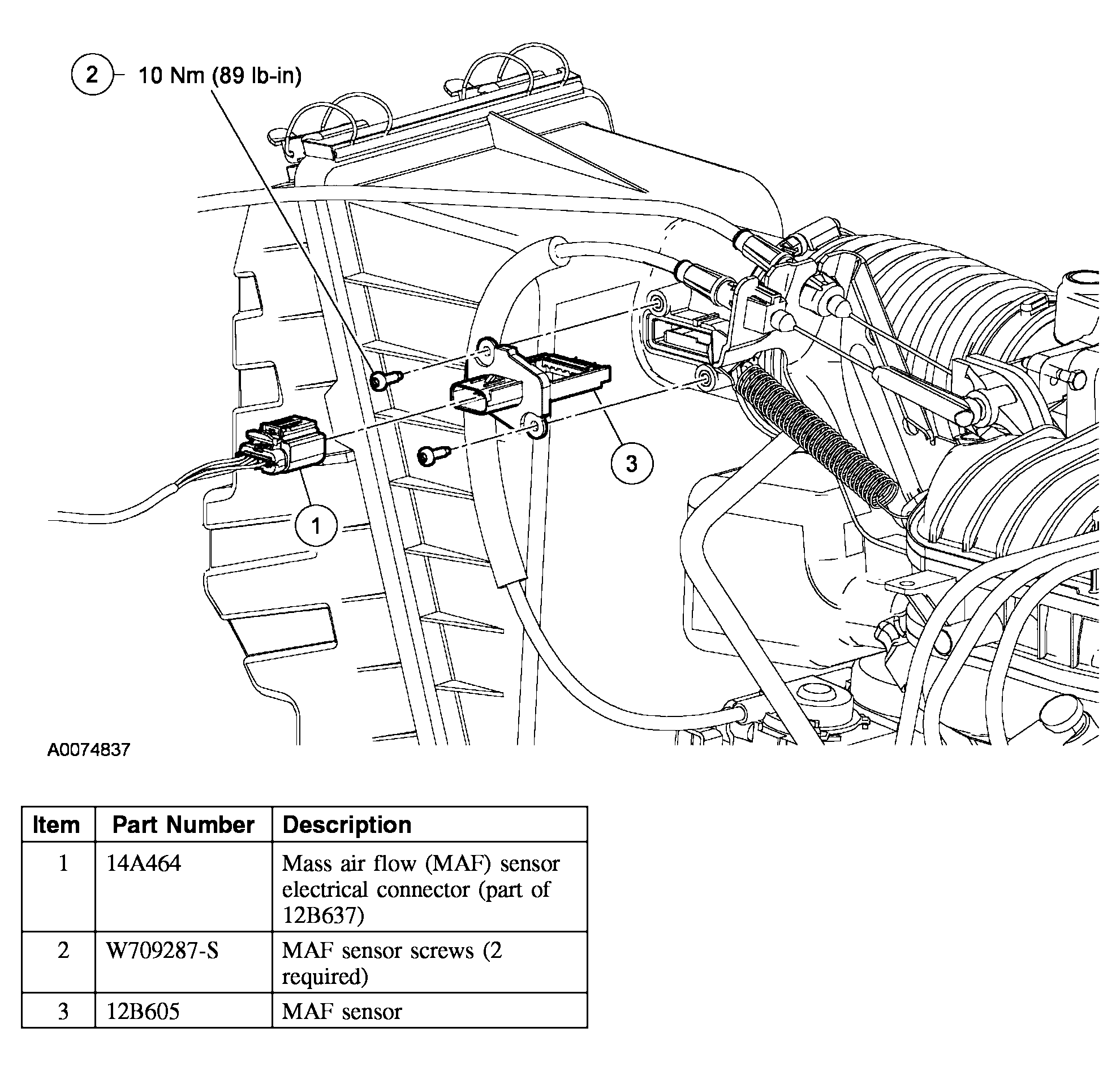

Fig 1: Installing Mass Air Flow Sensor
G04004507Courtesy of FORD MOTOR CO.
