Digital Transmission Range (TR) Sensor: Installation

Verify that the shift selector lever is in NEUTRAL.
Install the digital TR sensor and loosely install the bolts.

Fig 1: Locating Digital TR Sensor
Courtesy of FORD MOTOR CO.
Using the special tool, align the digital TR sensor and tighten the bolts.

Fig 2: Aligning Digital TR Sensor
Courtesy of FORD MOTOR CO.
Connect the connector.

Fig 3: Identifying Digital Transmission Range (TR) Sensor Electrical Connector
Courtesy of FORD MOTOR CO.
Install the manual control lever cable and nut.
1. Install the cable into the bracket.
2. Tighten the nut.

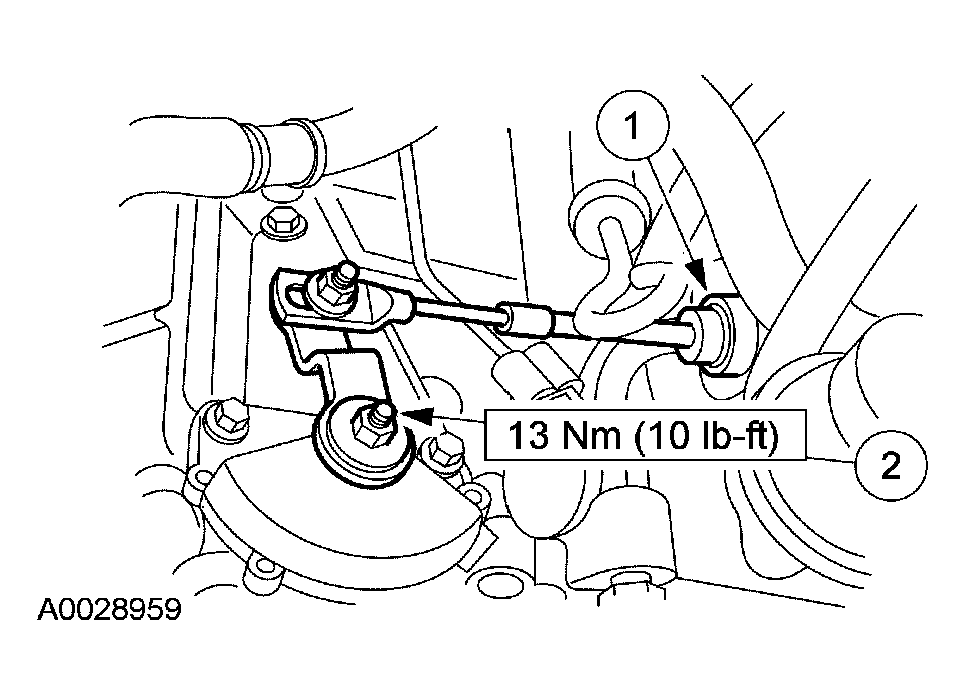

Fig 4: Installing Manual Control Lever Cable Nut - With Torque Specification
Courtesy of FORD MOTOR CO.
Install the air filter assembly.

Fig 5: Identifying Air Filter Assembly
Courtesy of FORD MOTOR CO.
Install the engine air cleaner.

Fig 6: Identifying Engine Air Cleaner Lid
Courtesy of FORD MOTOR CO.
Reconnect the mass air flow (MAF) sensor and the breather tubes.

Fig 7: Identifying Mass Air Flow (MAF) Sensor And Breather Tubes
Courtesy of FORD MOTOR CO.
Check for correct vehicle operation.
