Component Location Index
PLEASE NOTE: If a link on the Component Location Index to a View is not provided, that means that the Component and/or View in question does NOT apply to the vehicle model selected.

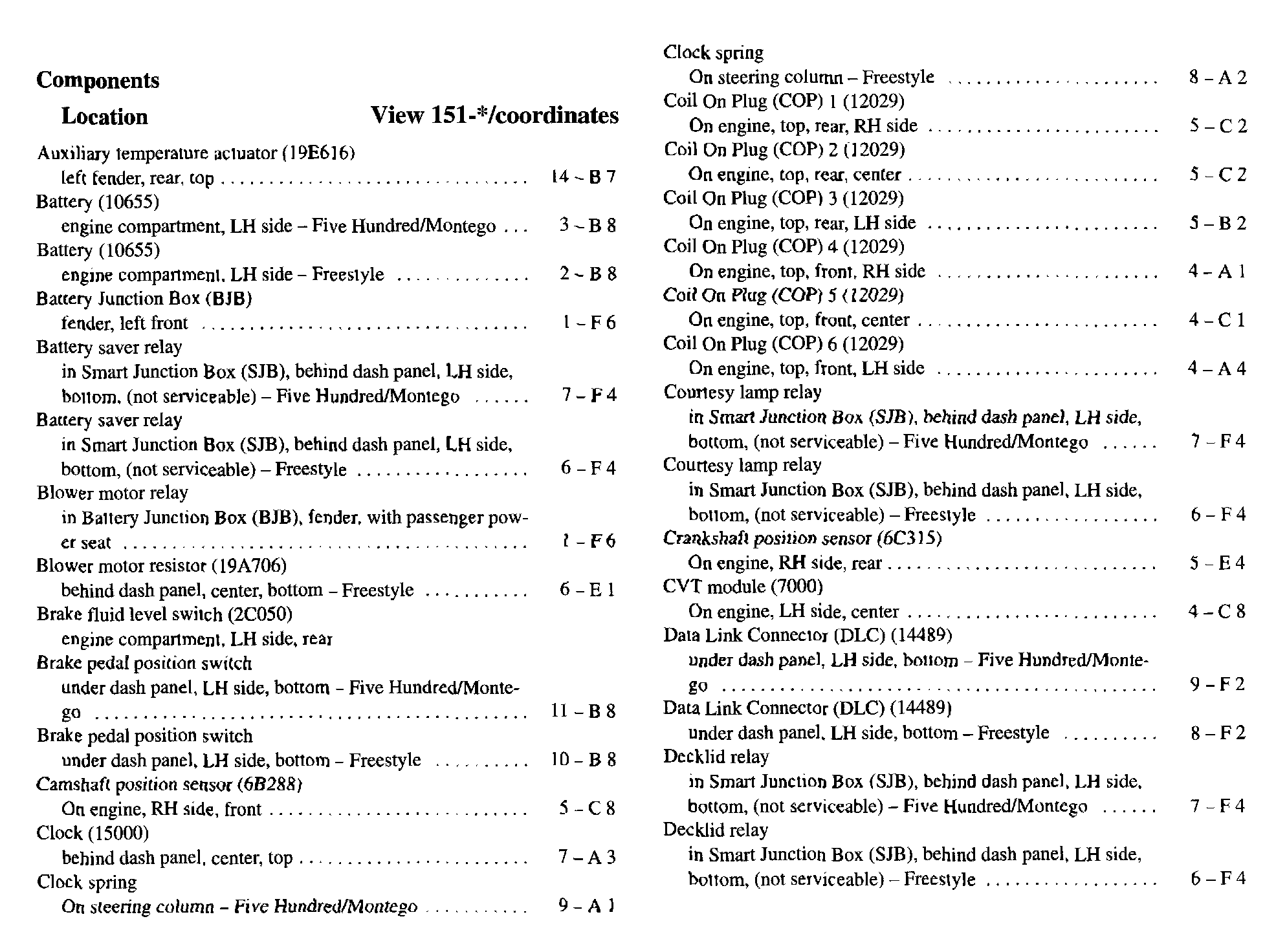

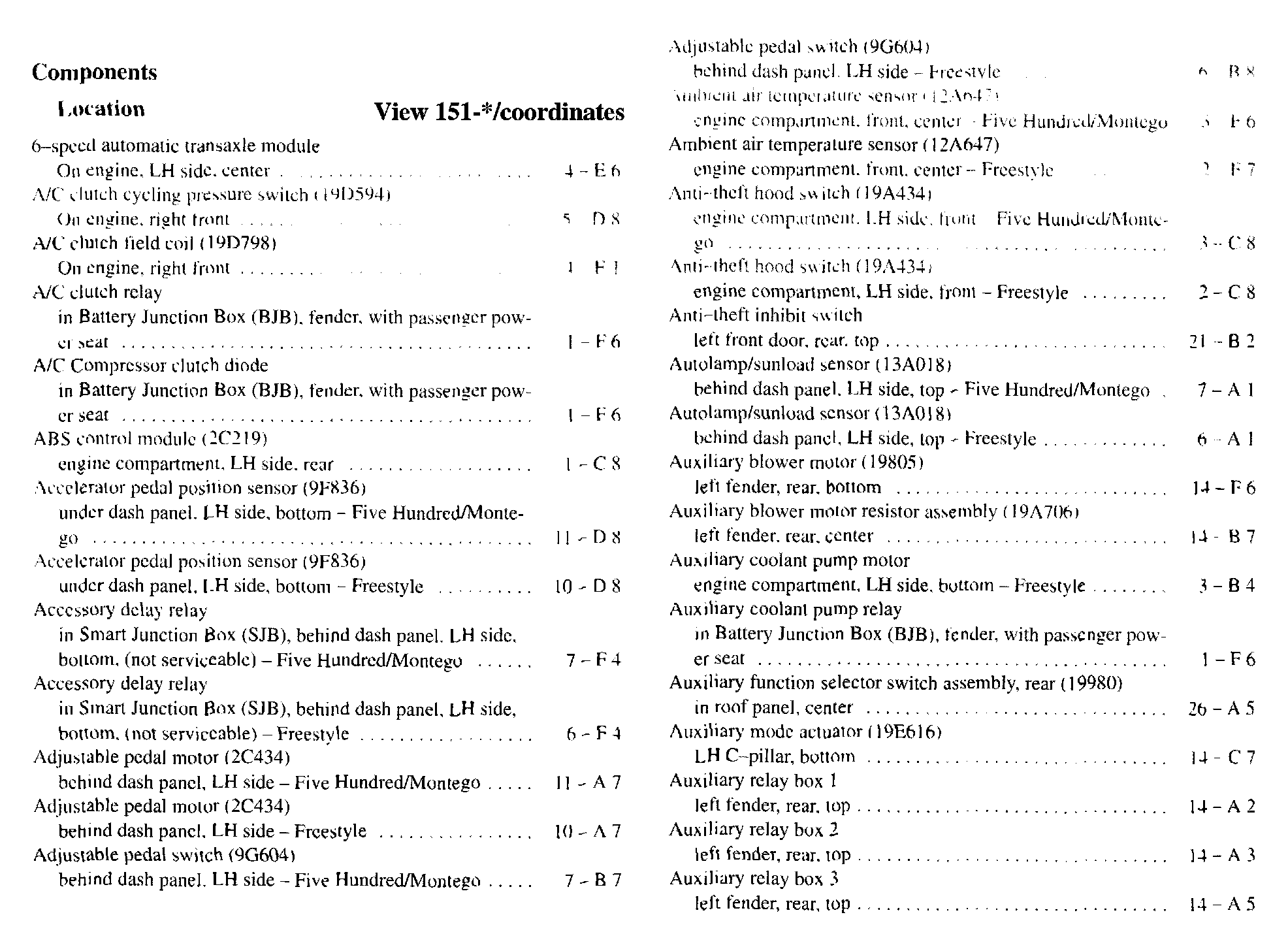

6-Speed-Au:
Au-De:

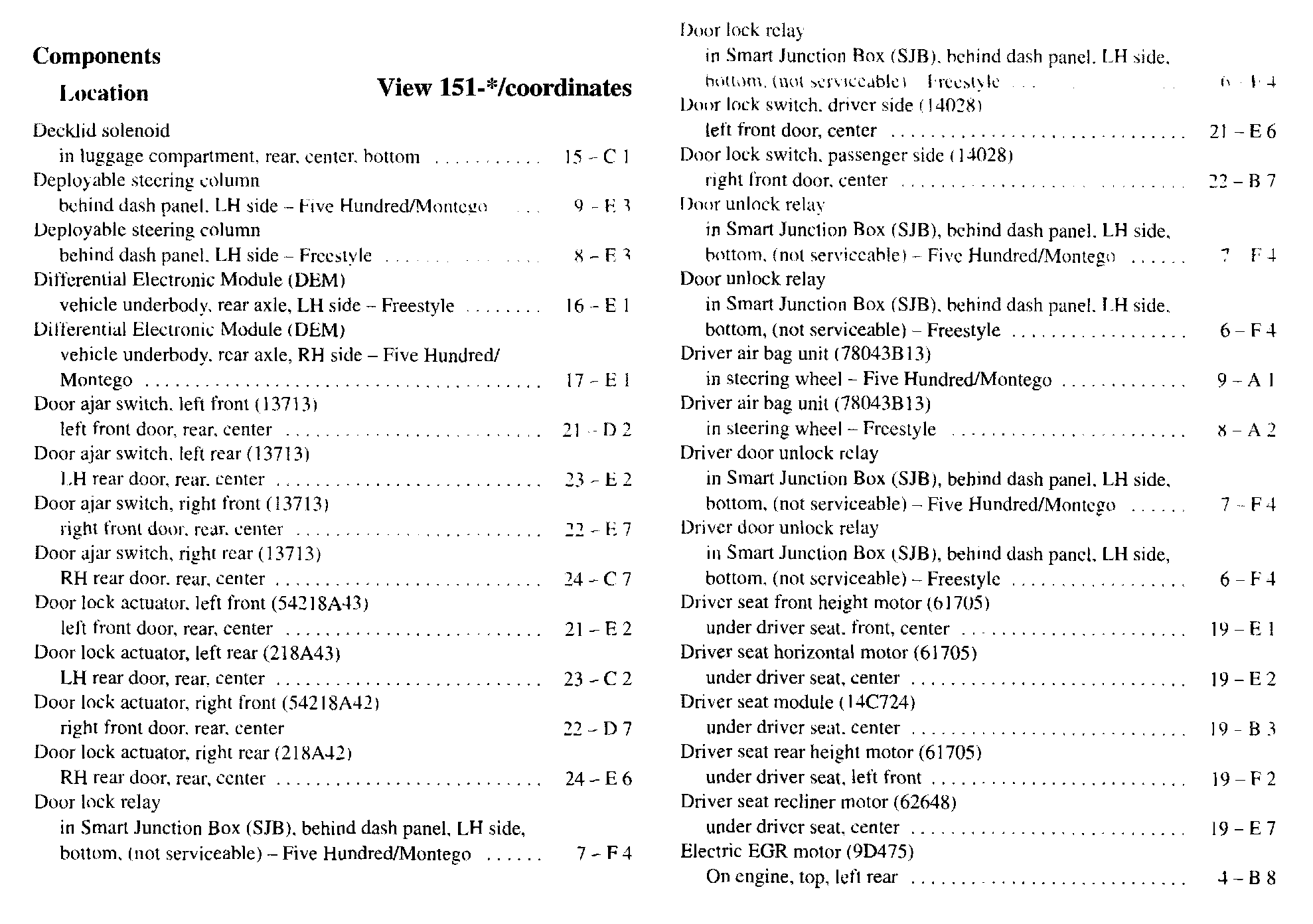

De-El:

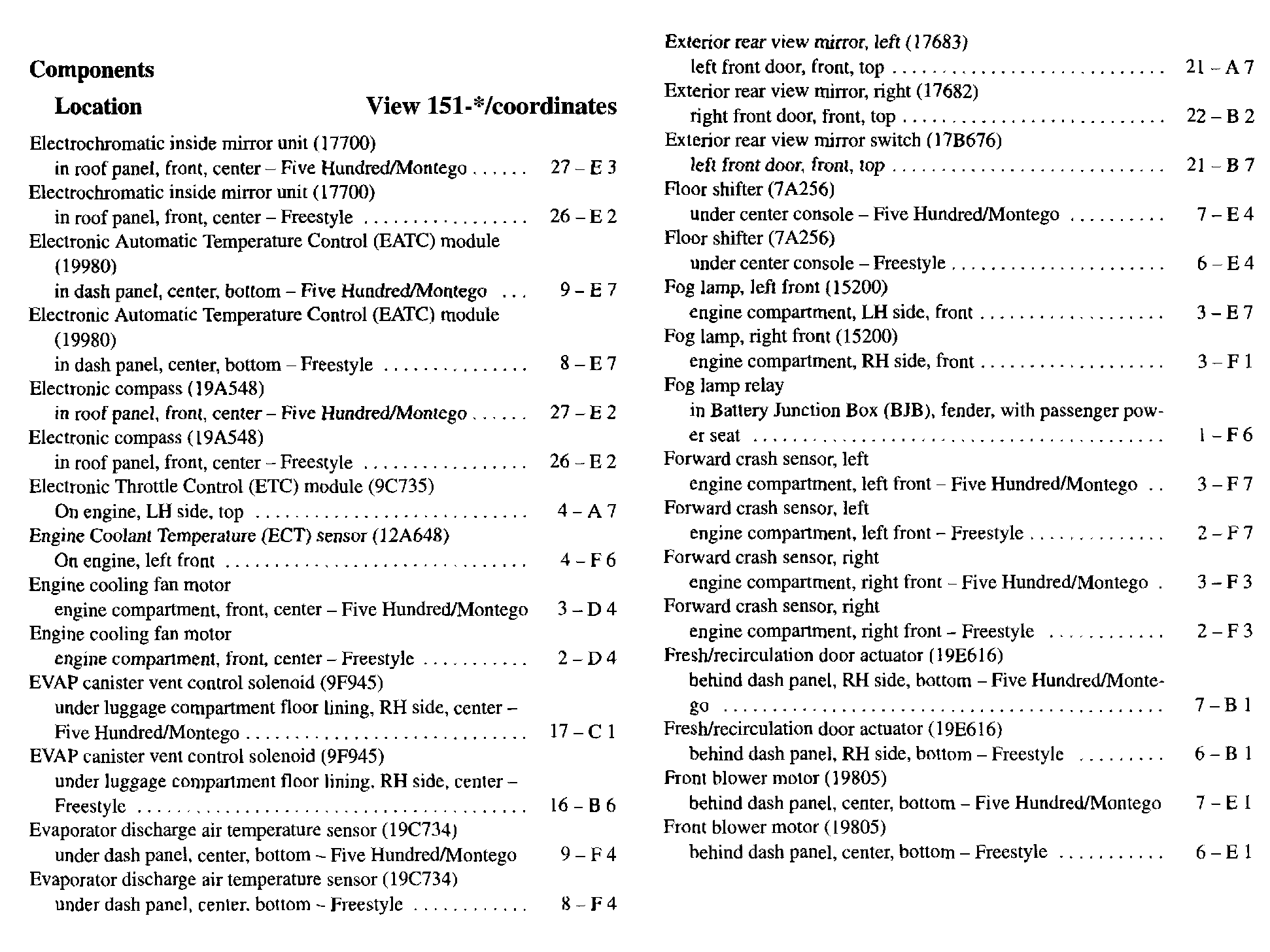

El-Fr:

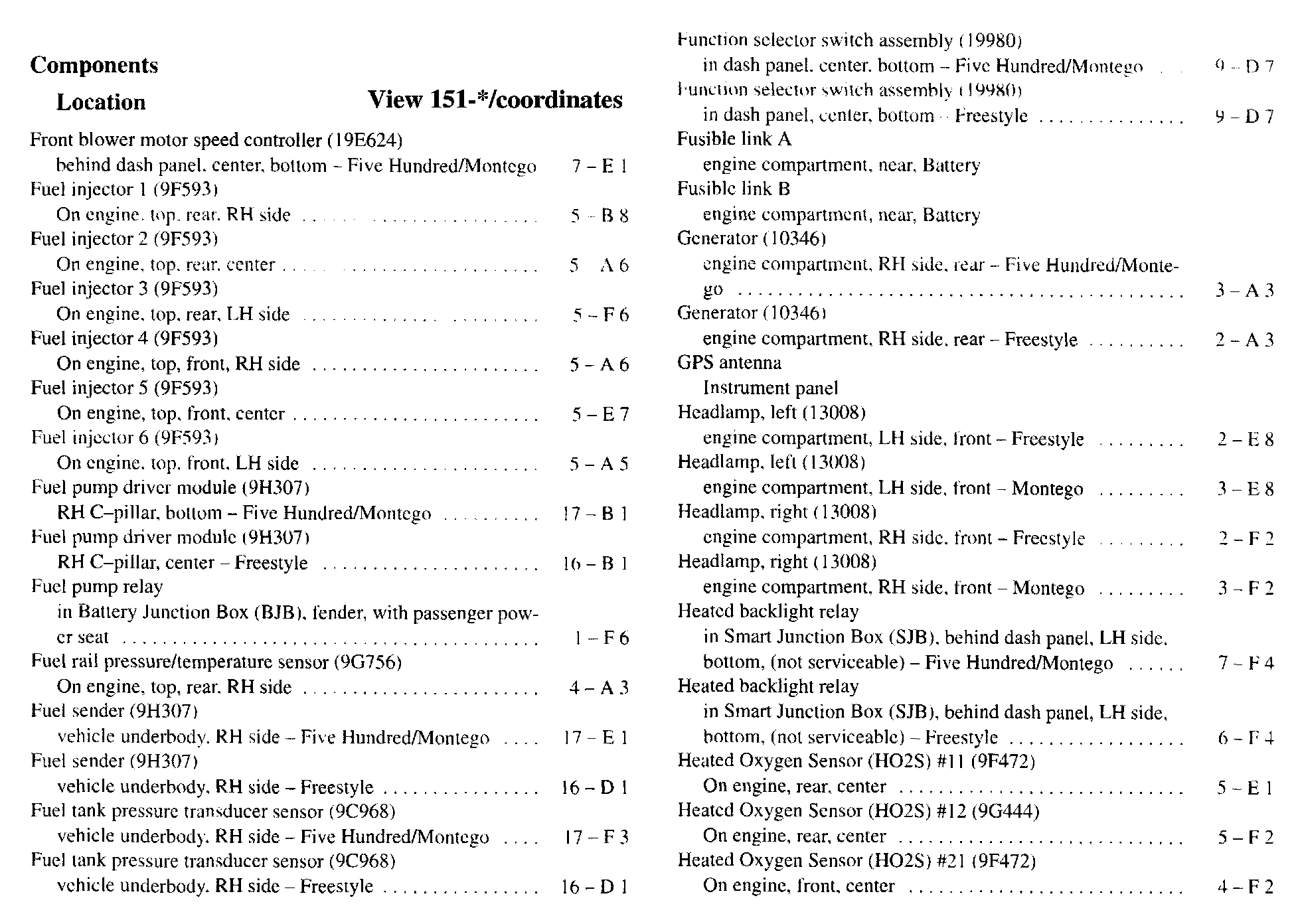

Fr-He:

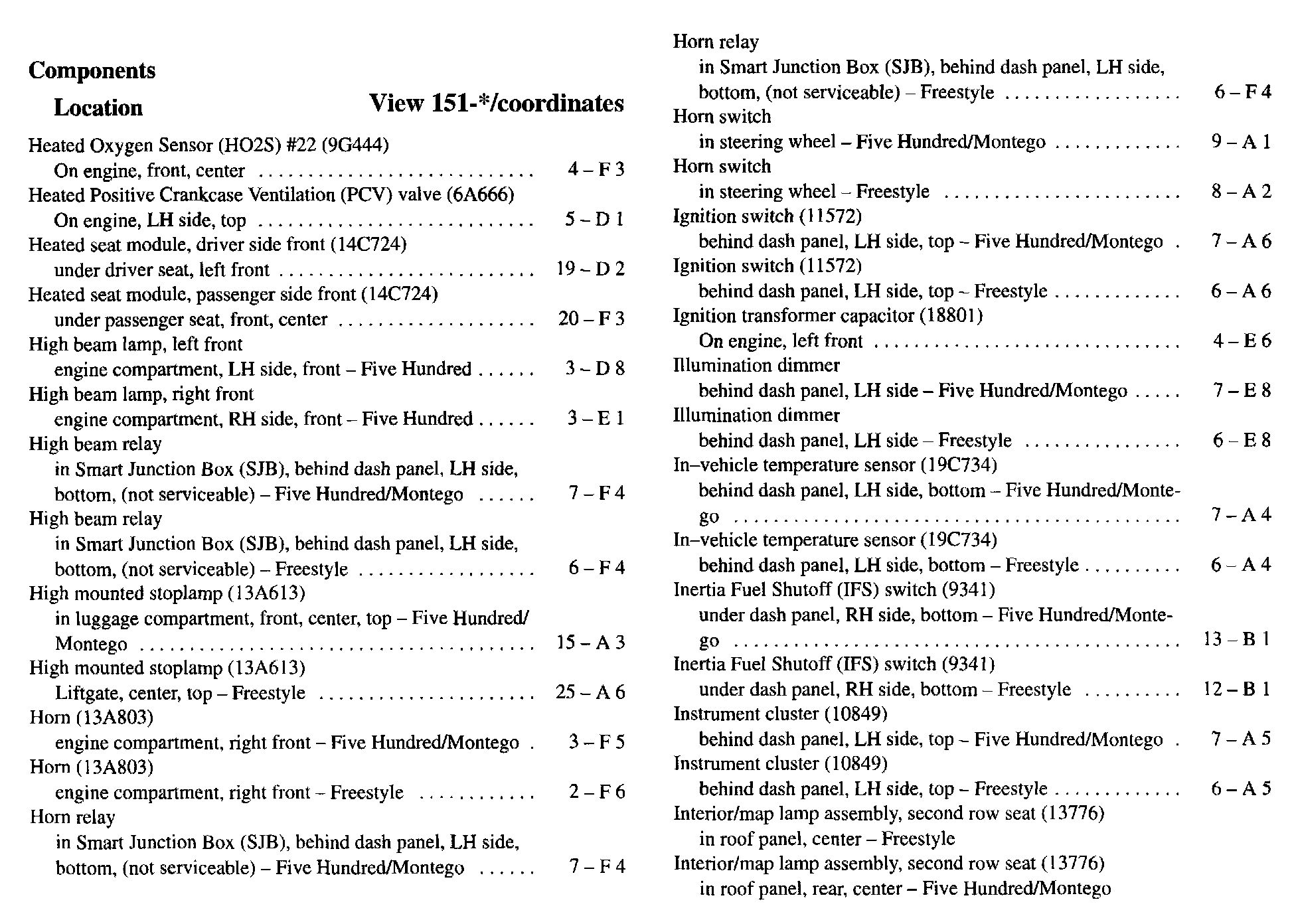

He-In:

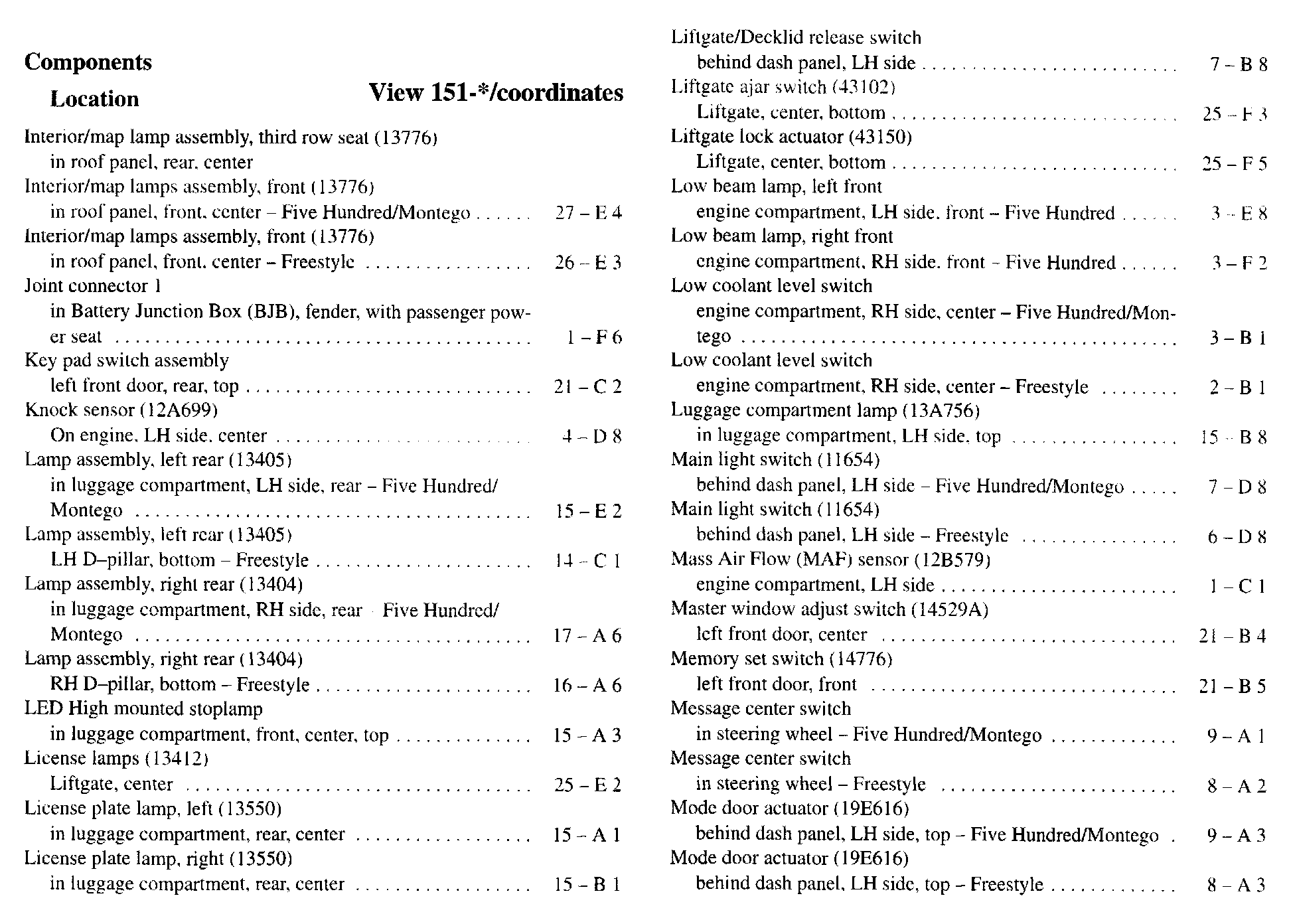

In-Mo:

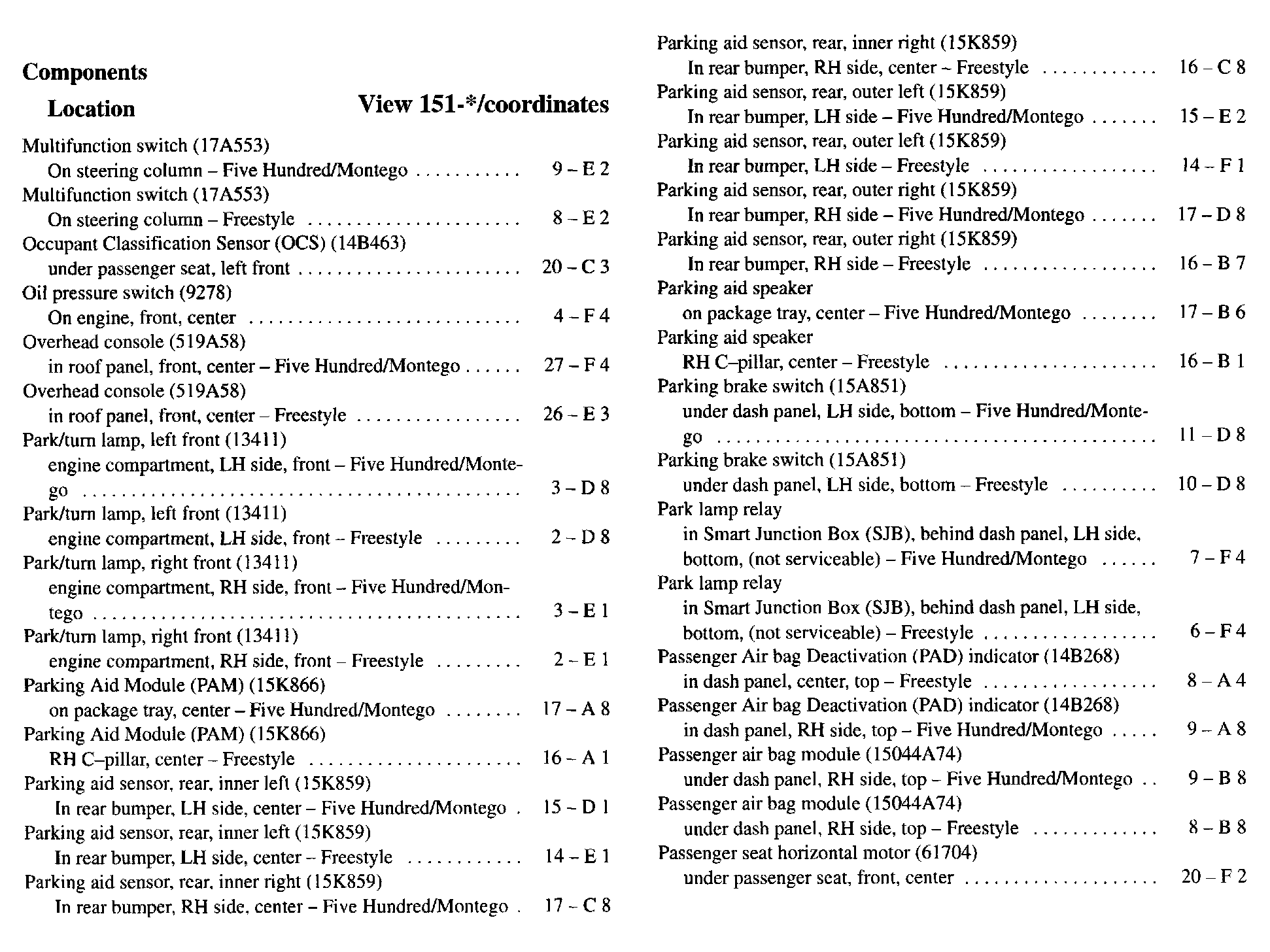

Mu-Pa:

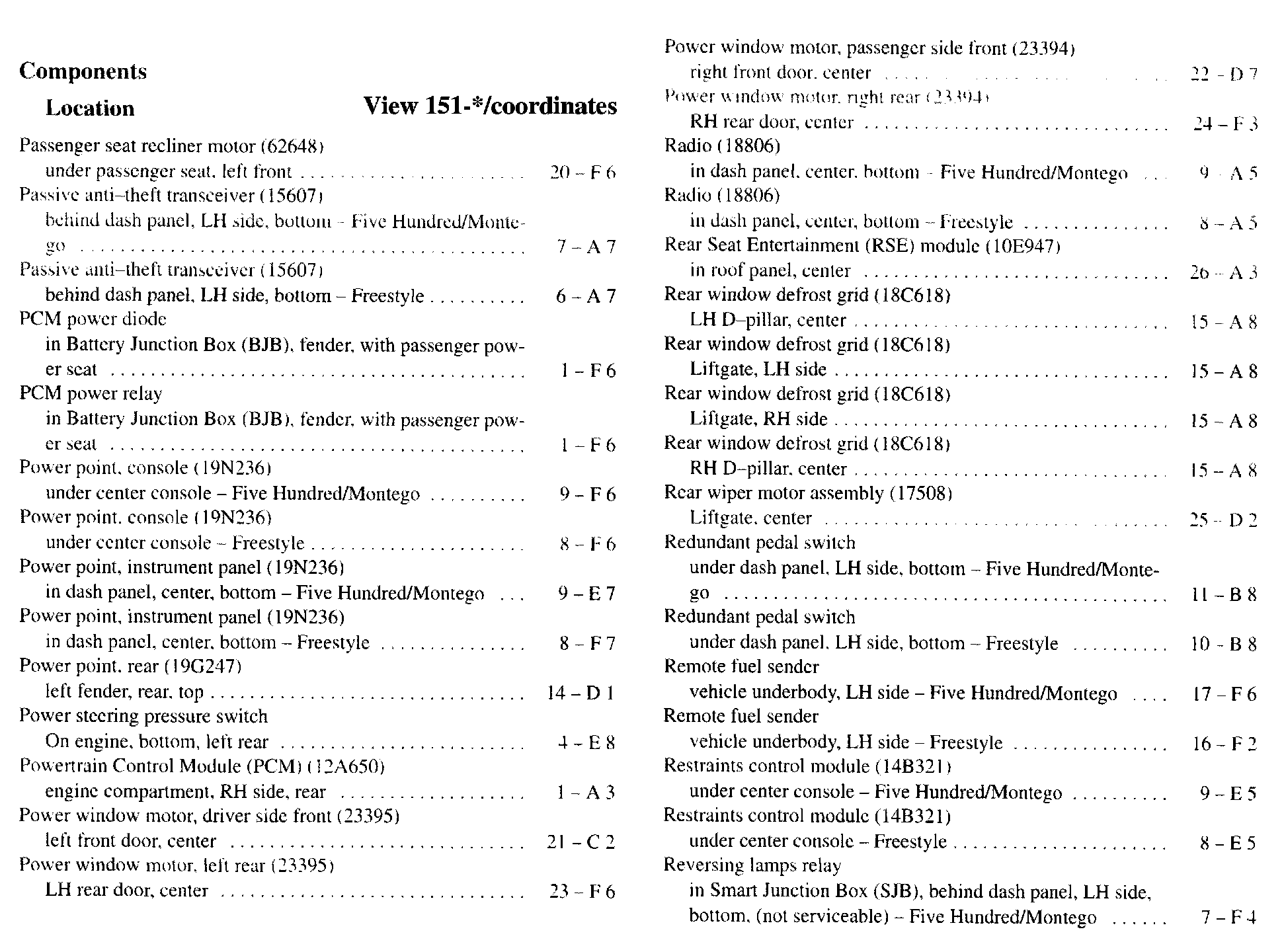

Pa-Re:

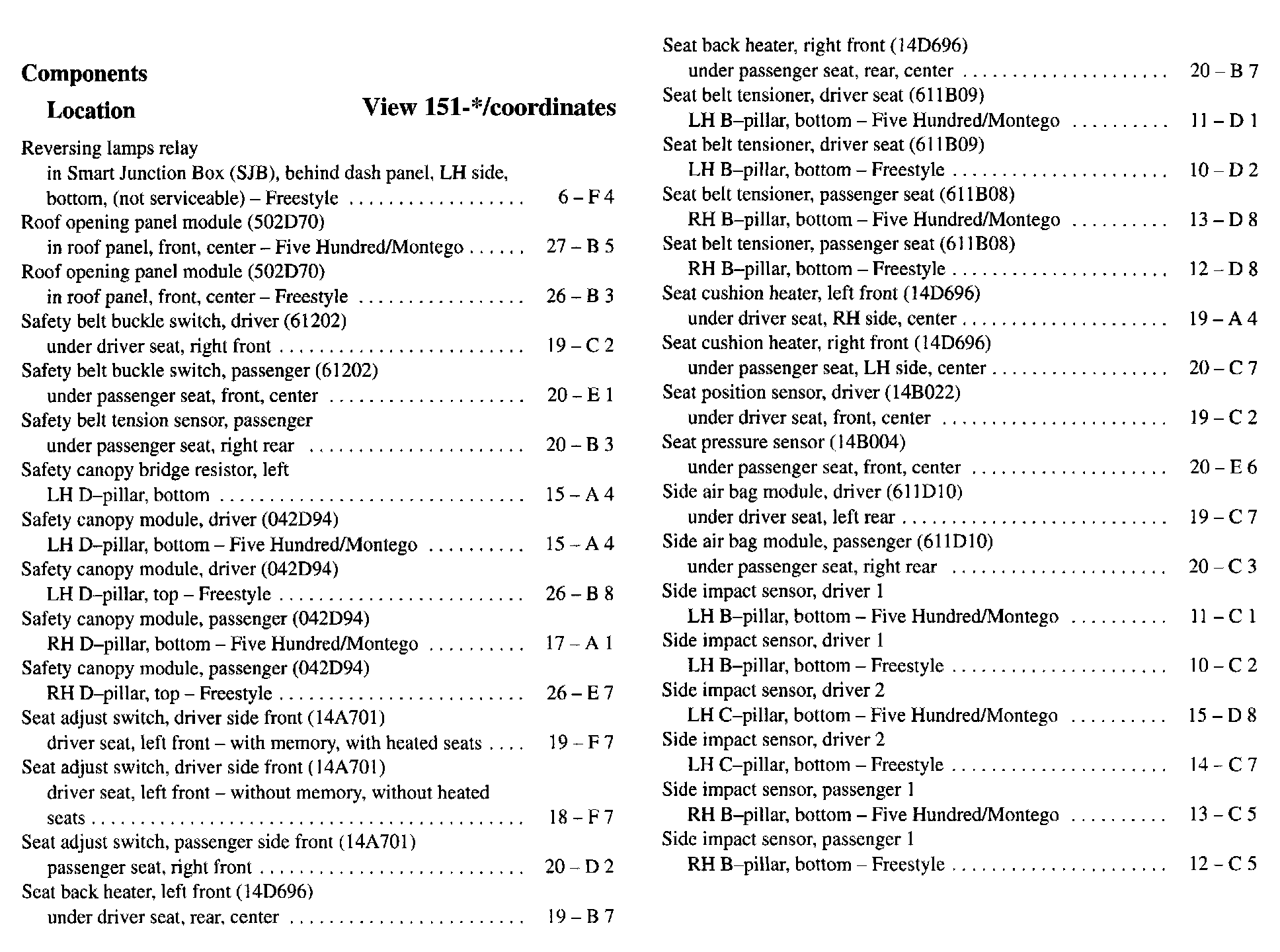

Re-Si:

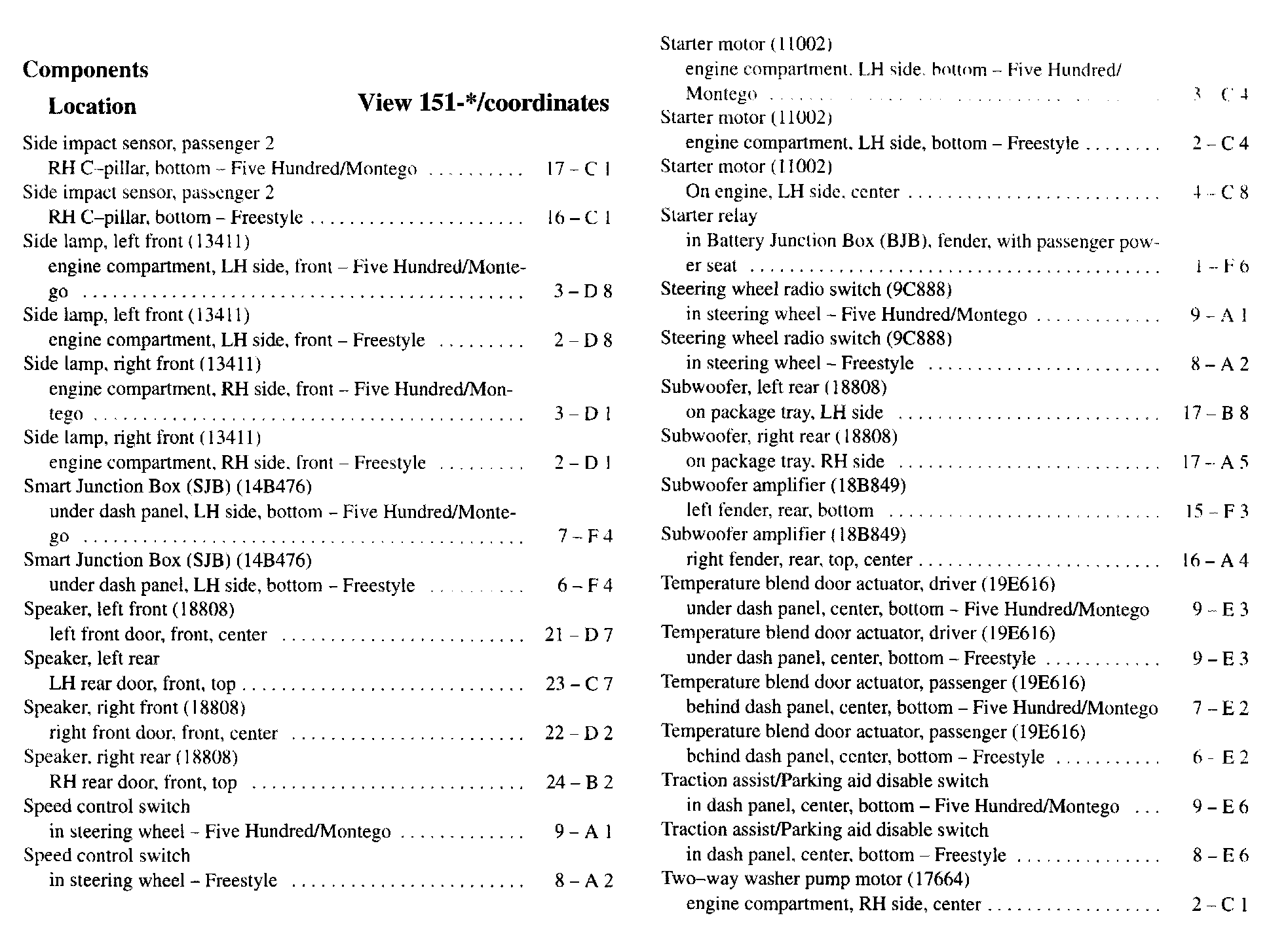

Si-Tw:

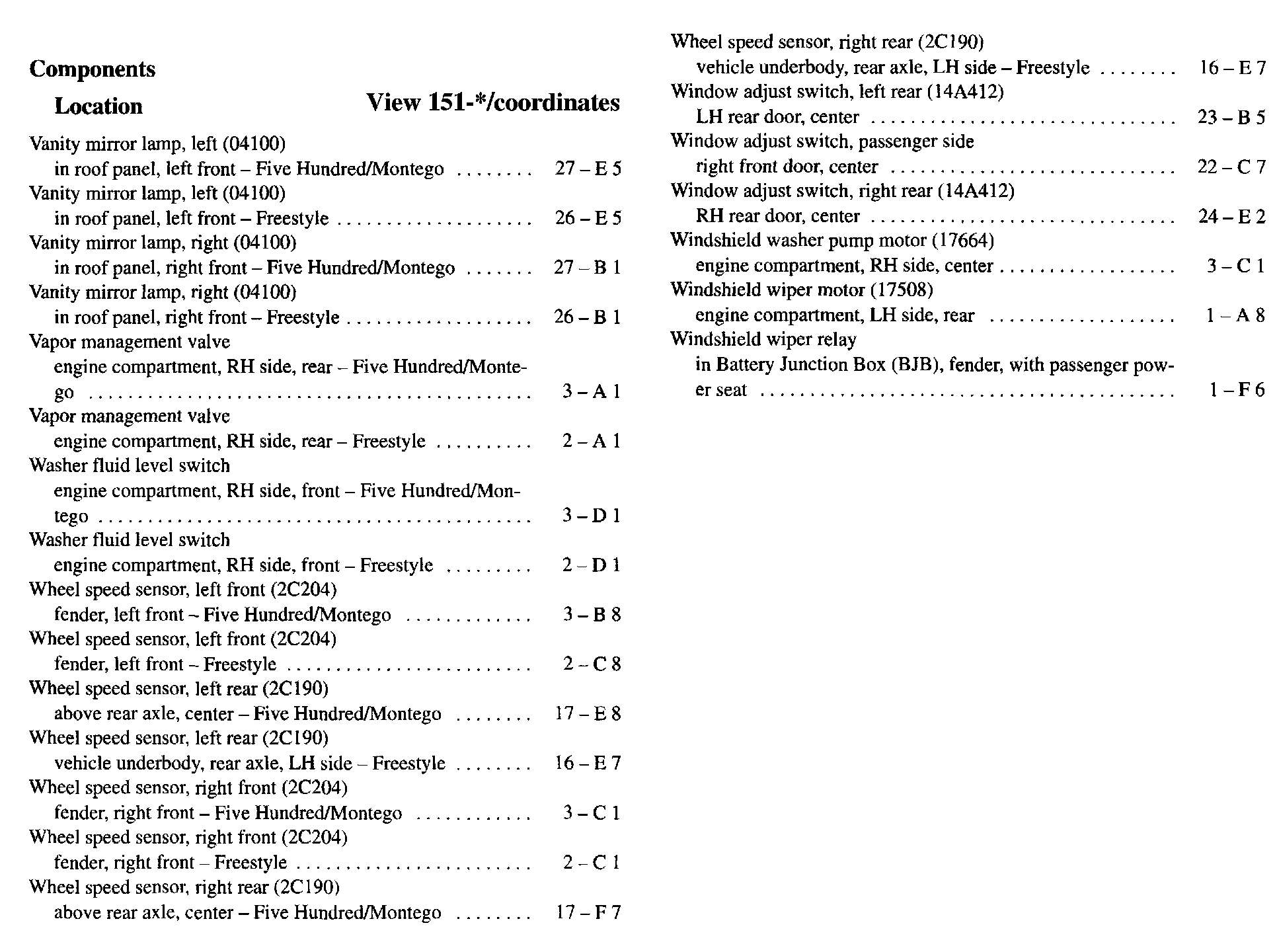

Va-Wi:
