Throttle Body: Notes

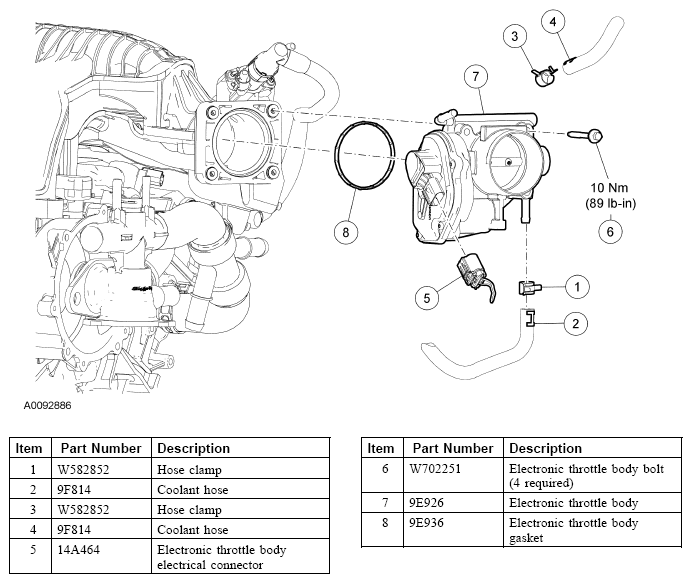

Fig 1: Throttle Body Replacement Components - Early Build With Torque Specifications
G04656122Courtesy of FORD MOTOR CO.

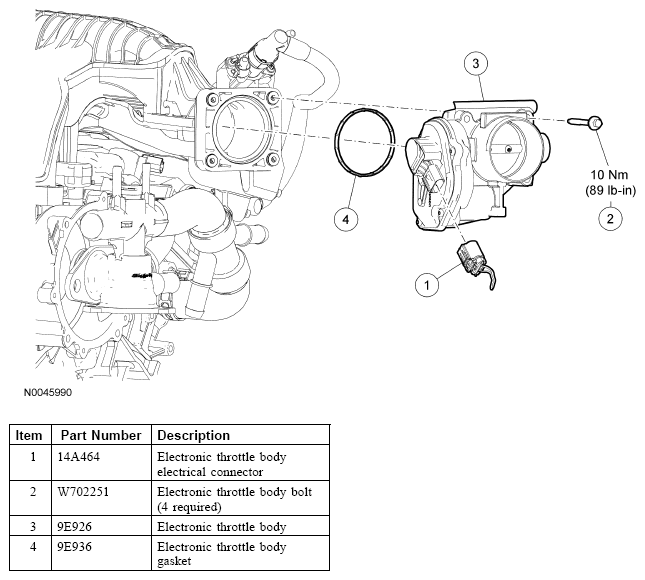

Fig 2: Throttle Body Replacement Components - Late Build With Torque Specifications
G04656123Courtesy of FORD MOTOR CO.
