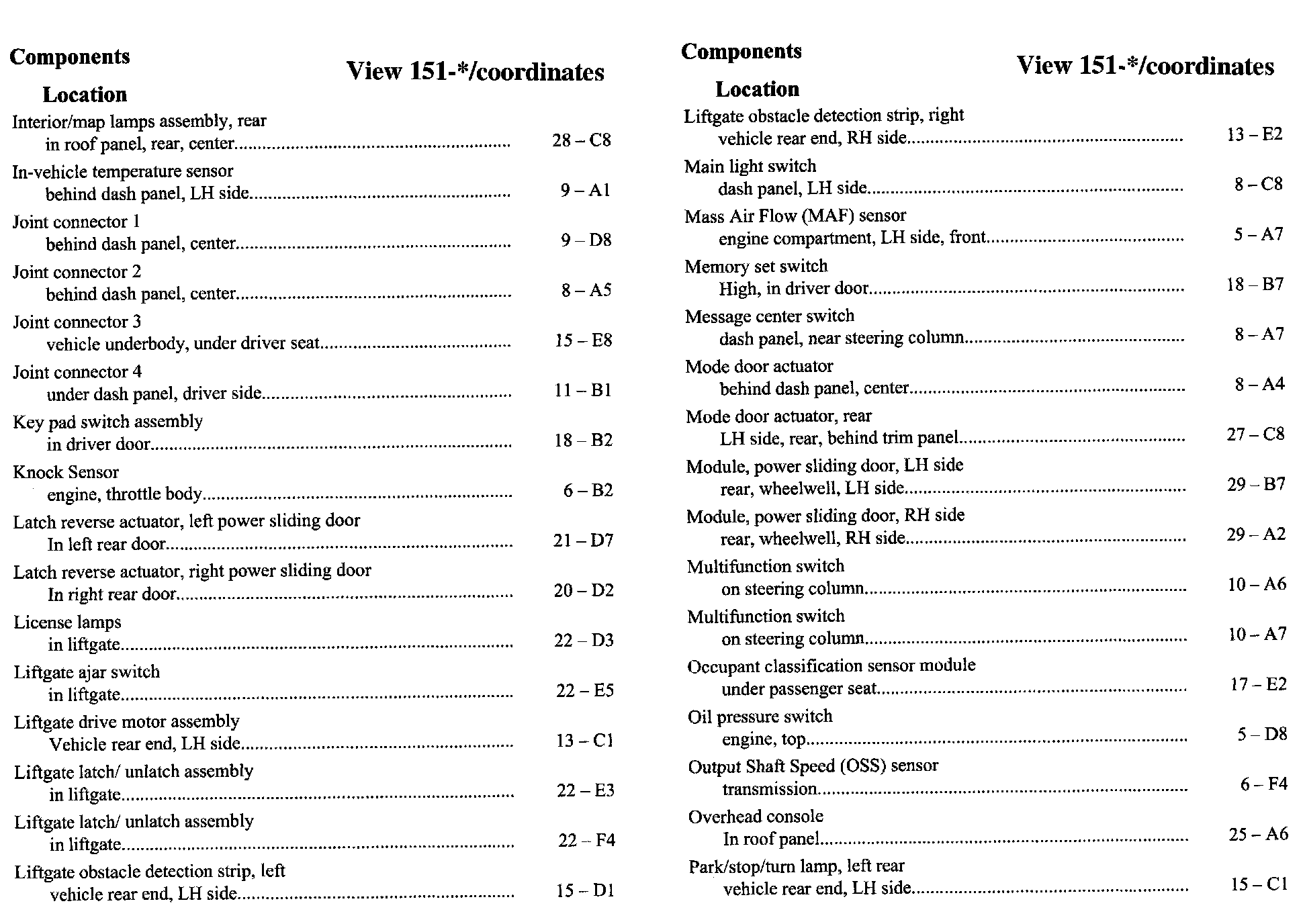

Component Location Index

PLEASE NOTE: If a link on the Component Location Index to a View is not provided, that means that the Component and/or View in question does NOT apply to the vehicle model selected.

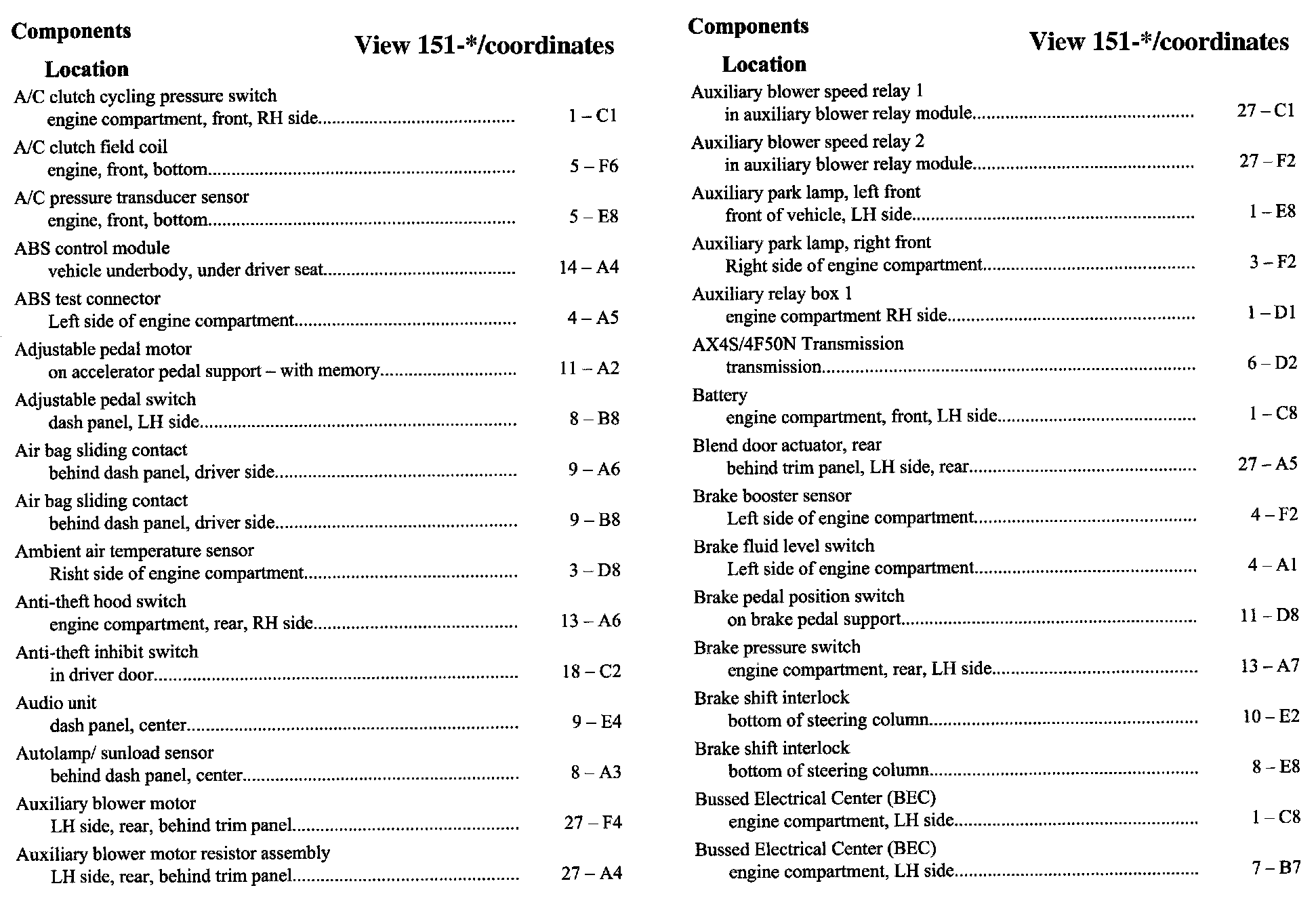

A/C-Bu:

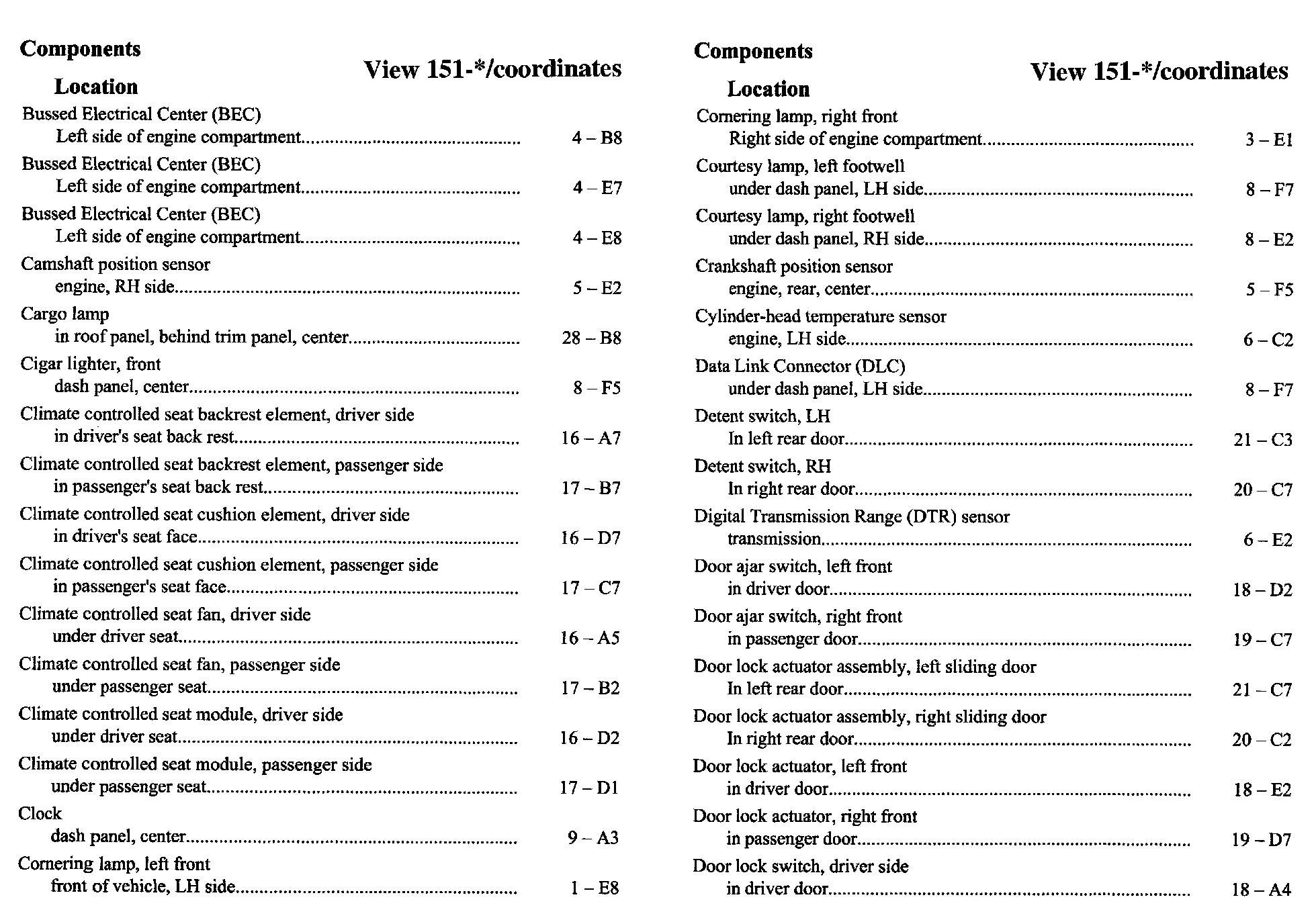

Bu-Do:

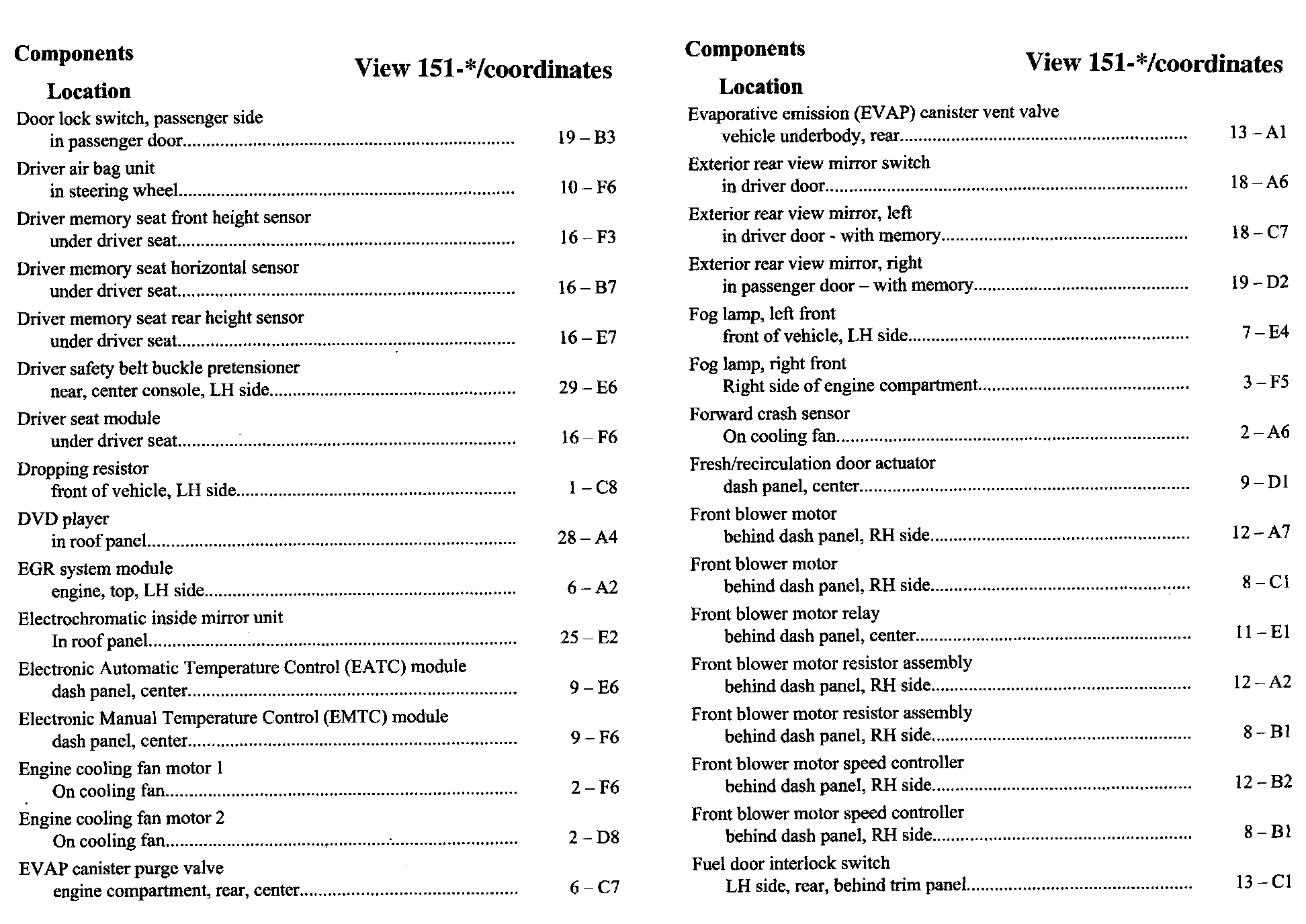

Do-Fu:

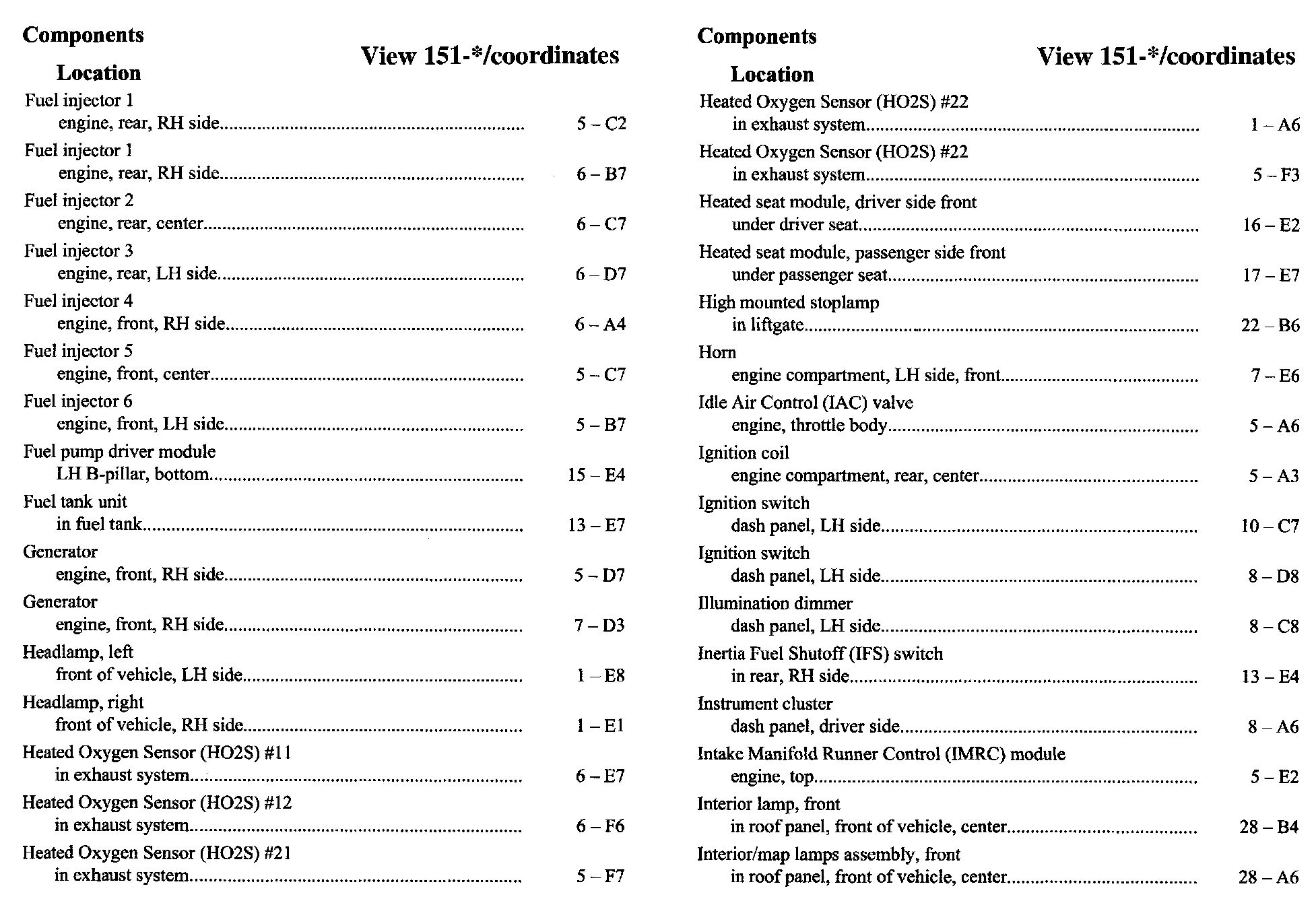

Fu-In:

In-Pa:

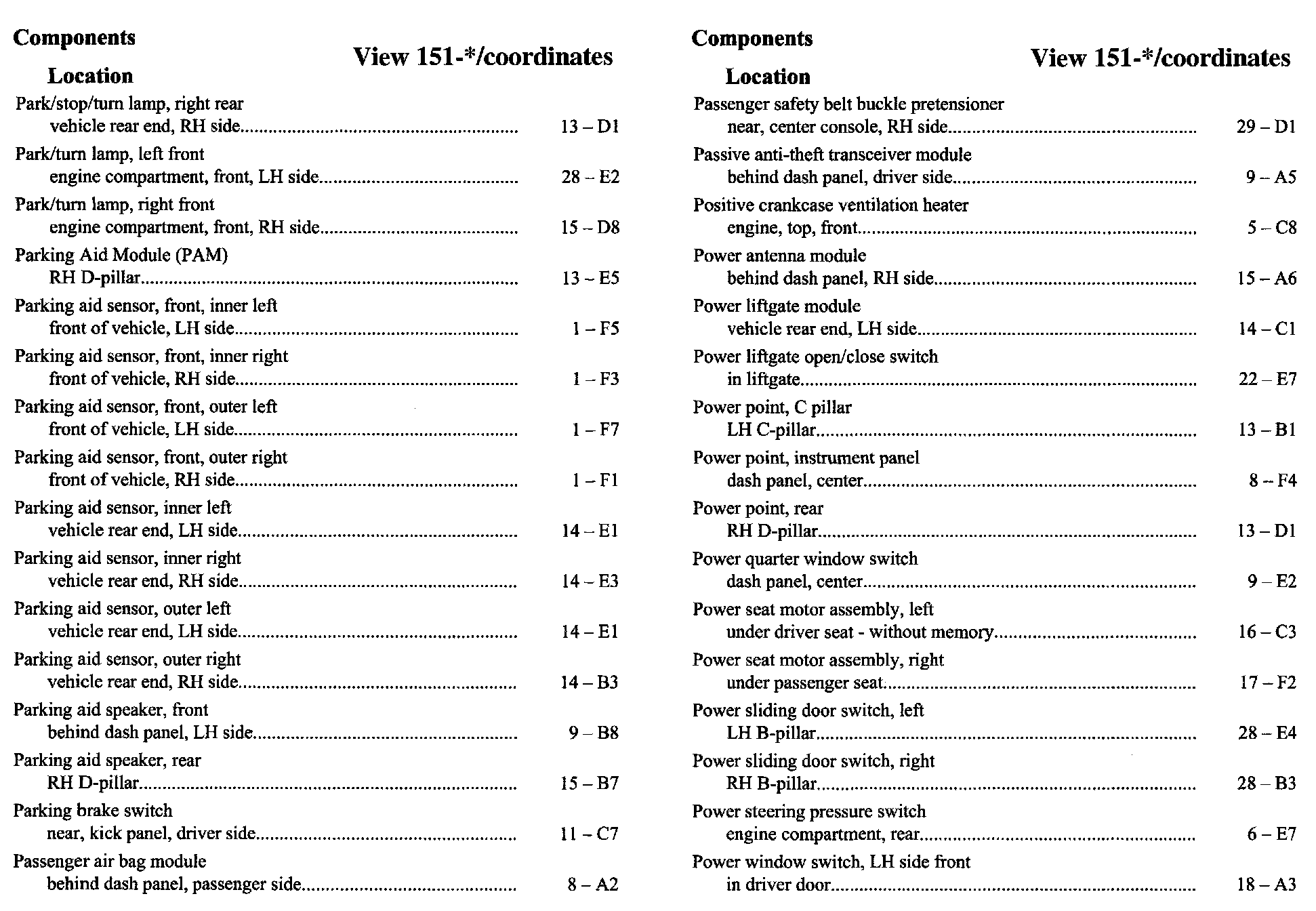

Pa-Po:

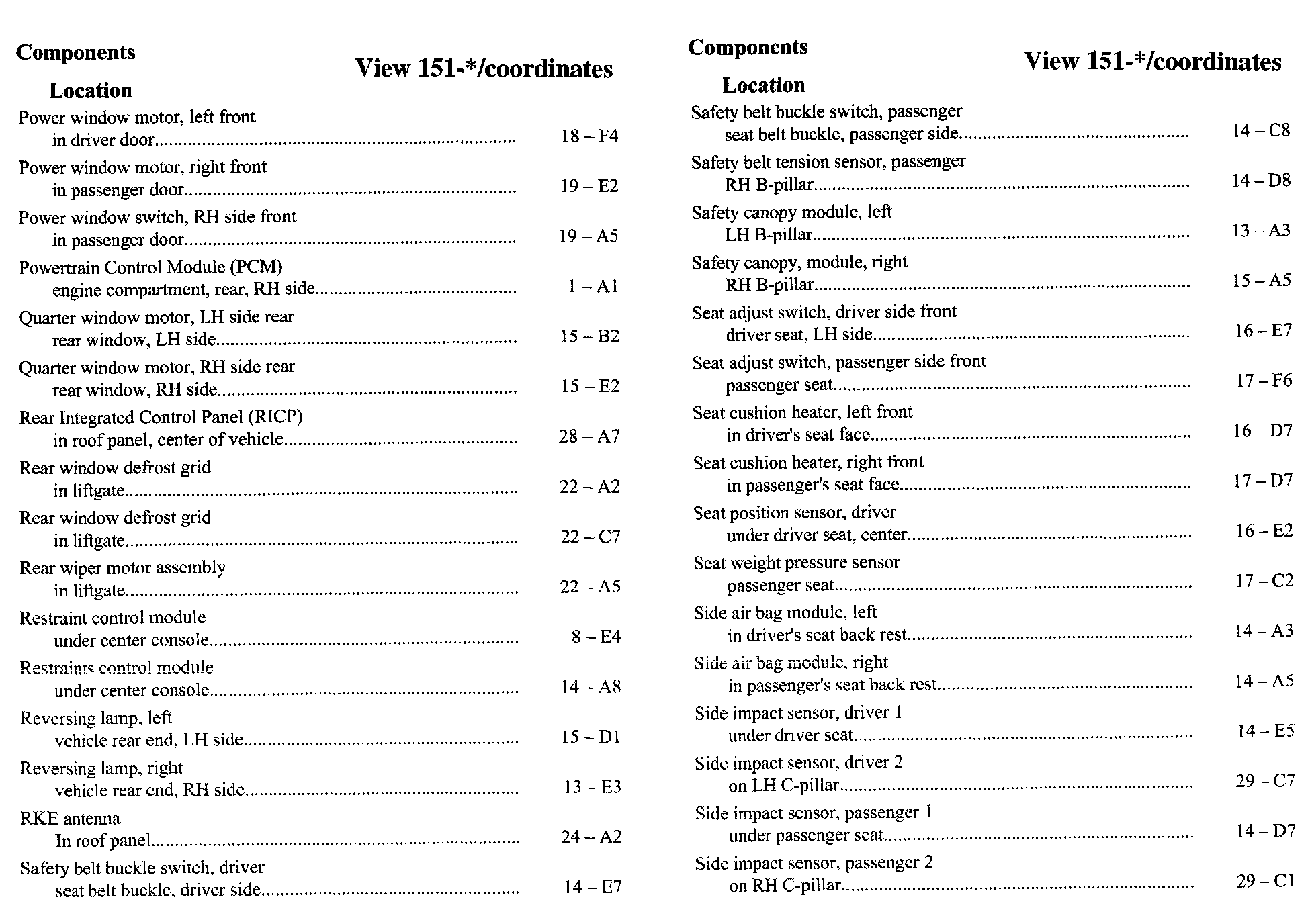

Po-Si:

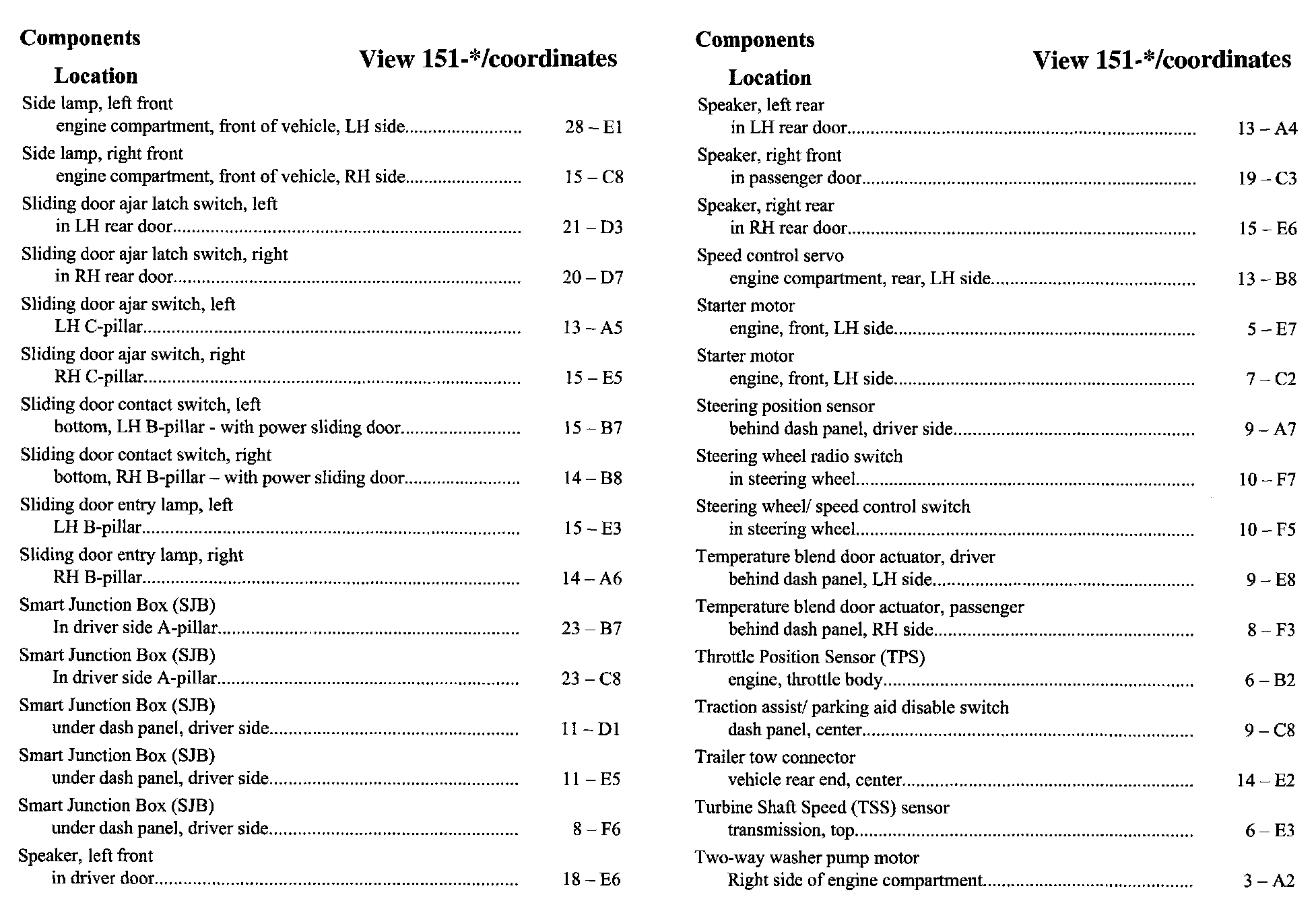

Si-Tw:

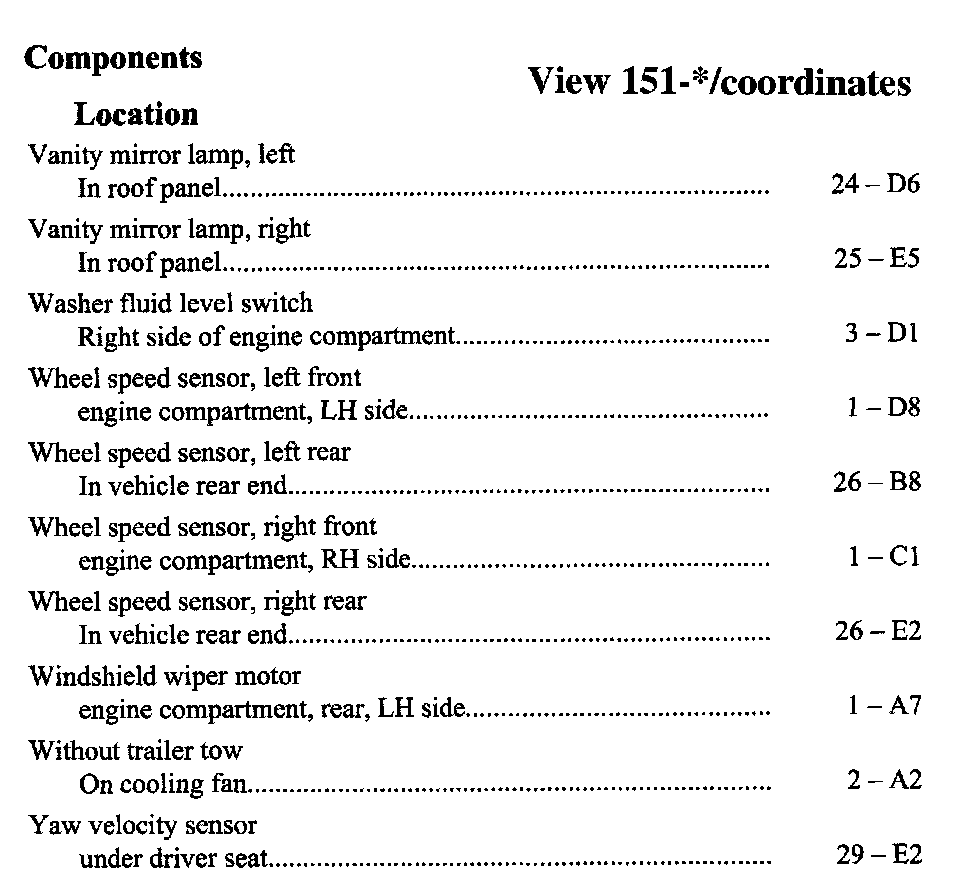

Va-Ya:
