Intake Manifold Runner Control (IMRC) Actuator: Notes

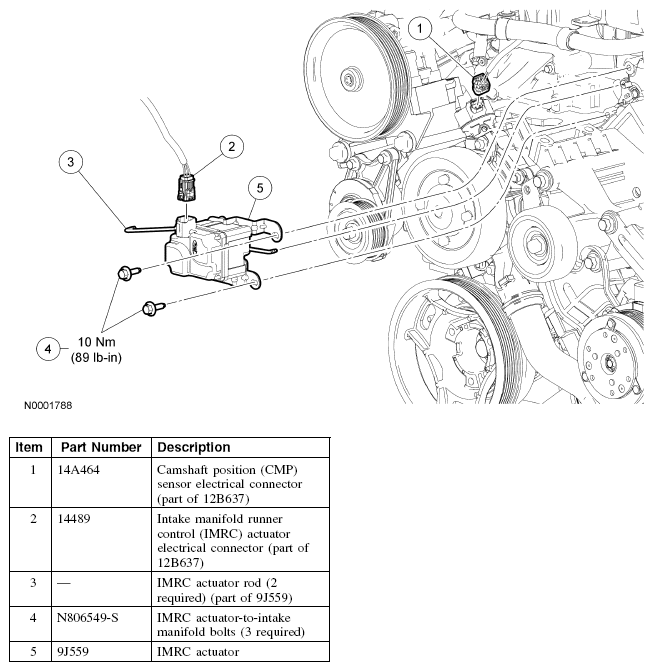

Fig 1: Intake Manifold Runner Control (IMRC) Actuator Replacement Components With Torque Specifications
G04660905Courtesy of FORD MOTOR CO.
