Throttle Position (TP) Sensor: Notes

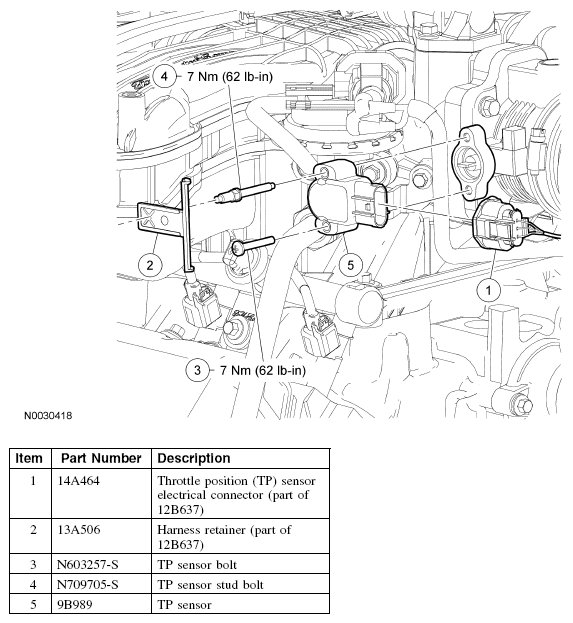

Fig 1: Throttle Position (TP) Sensor Replacement Components With Torque Specifications's
G04660894Courtesy of FORD MOTOR CO.
