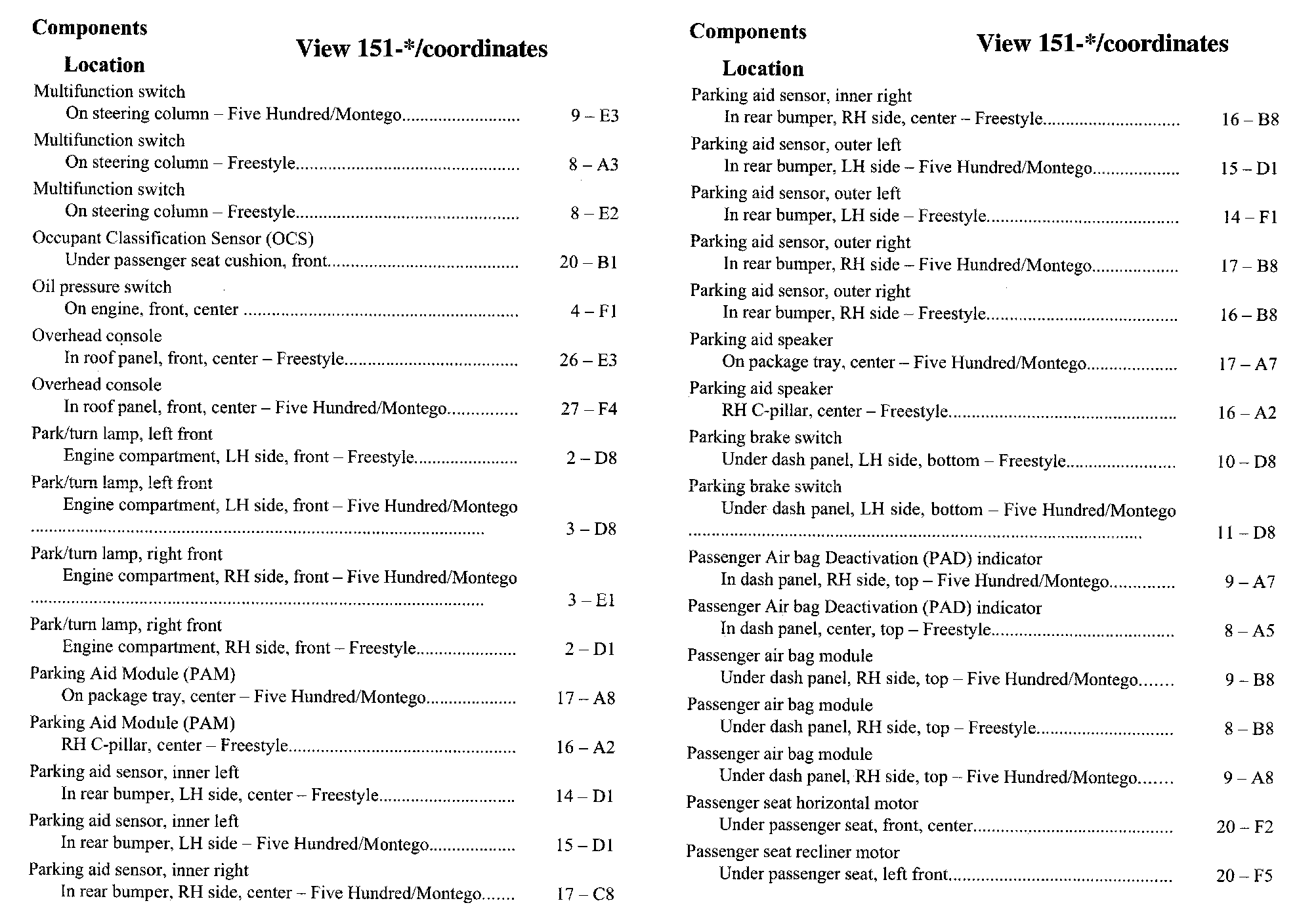

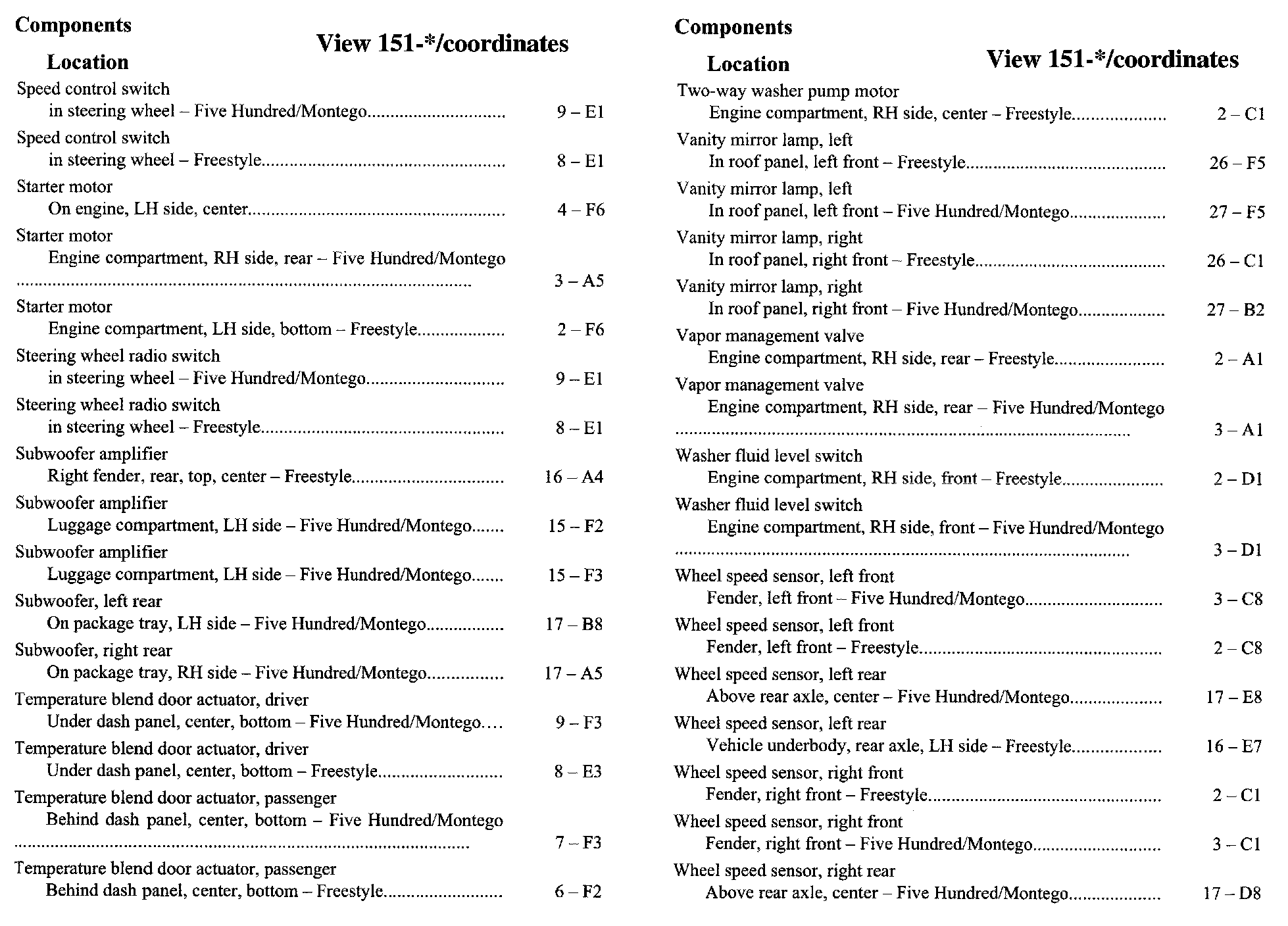

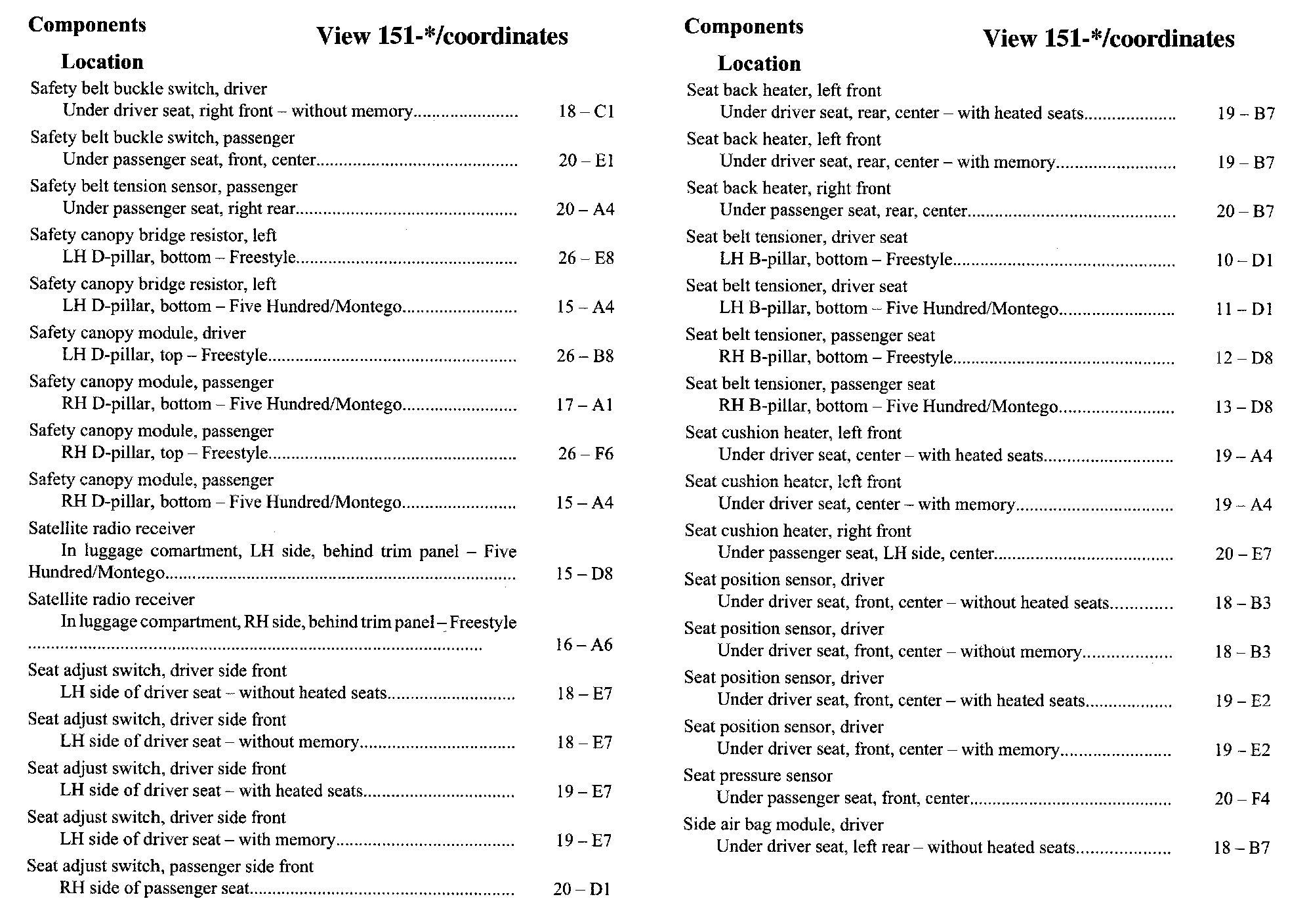

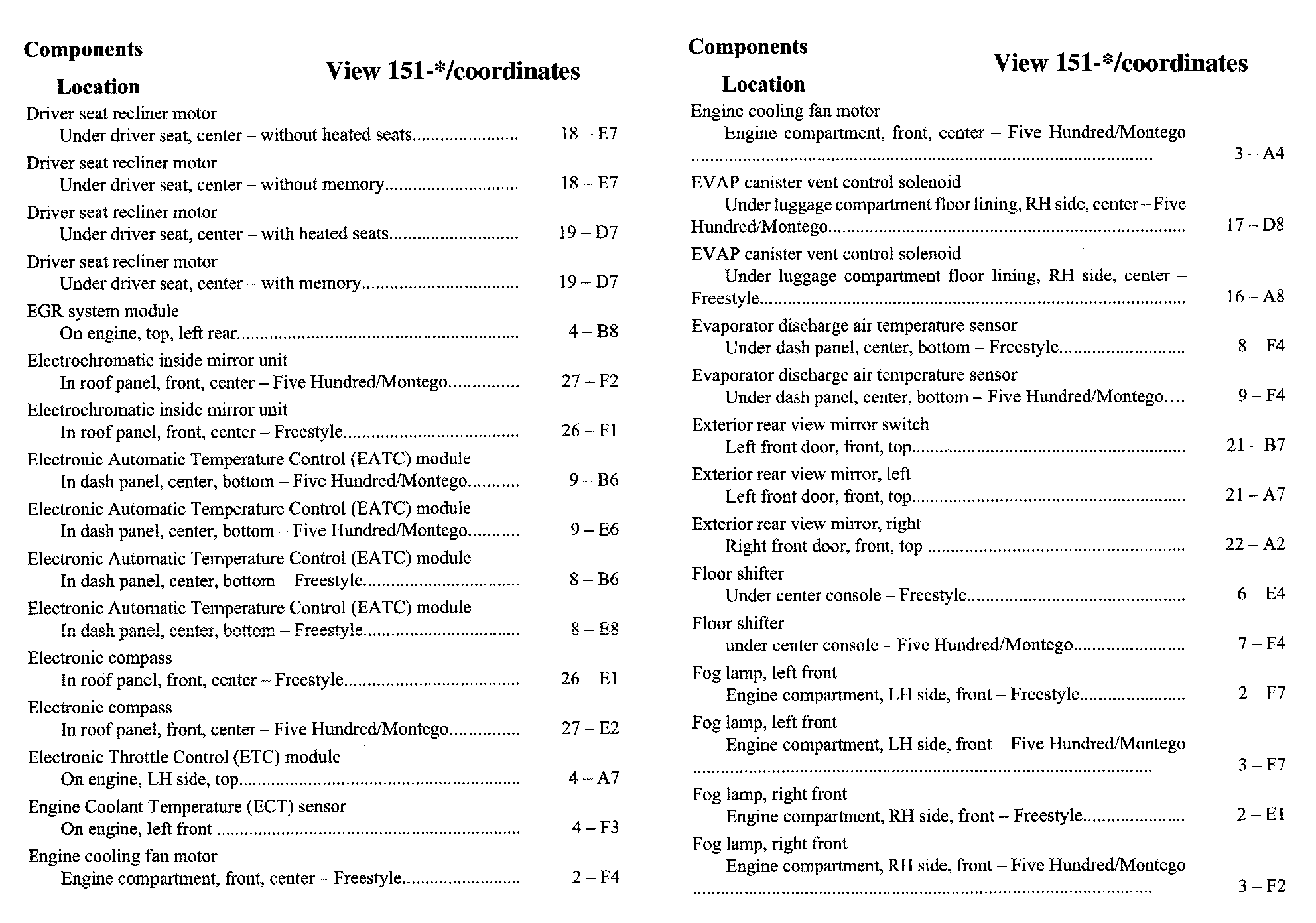

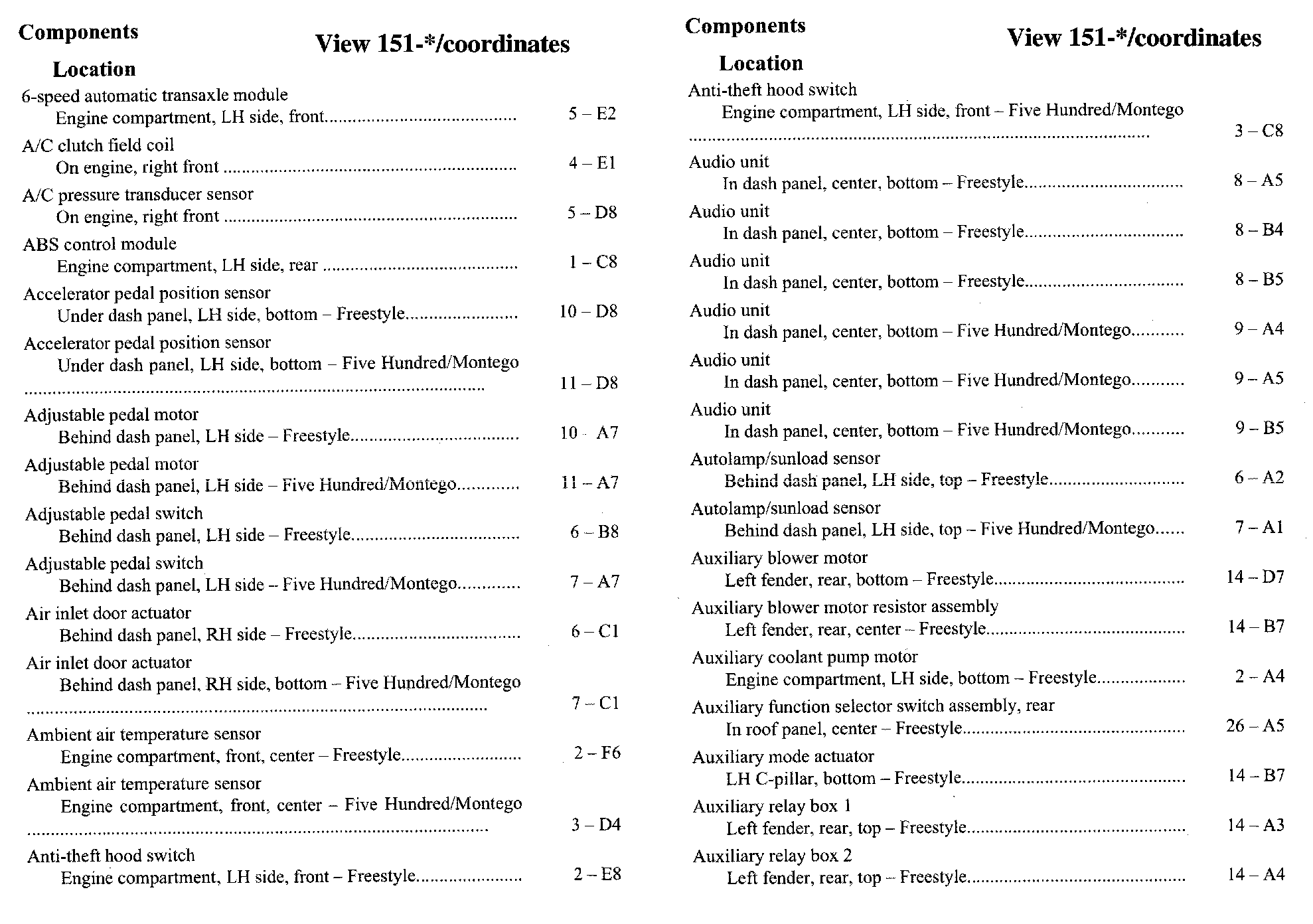

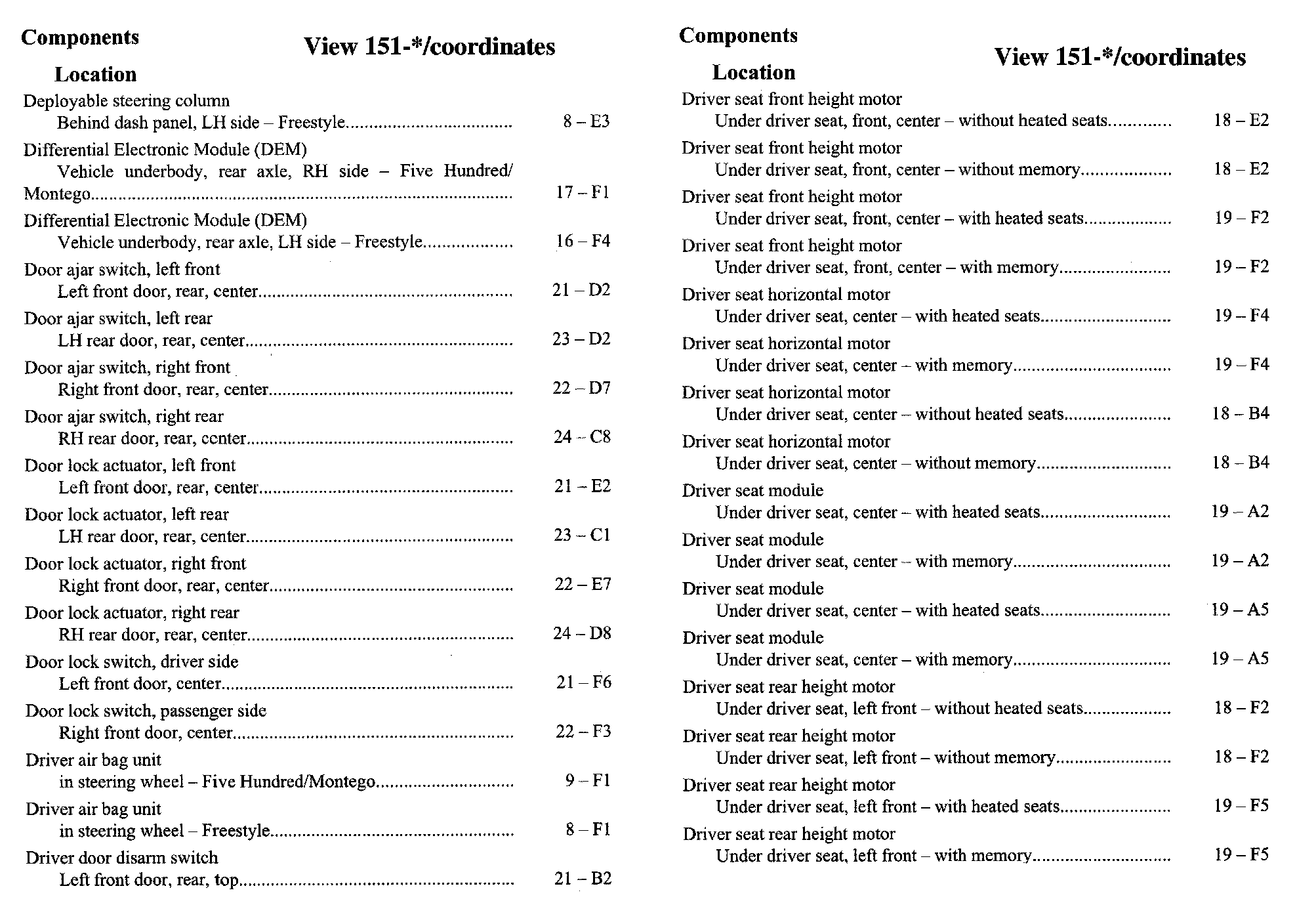

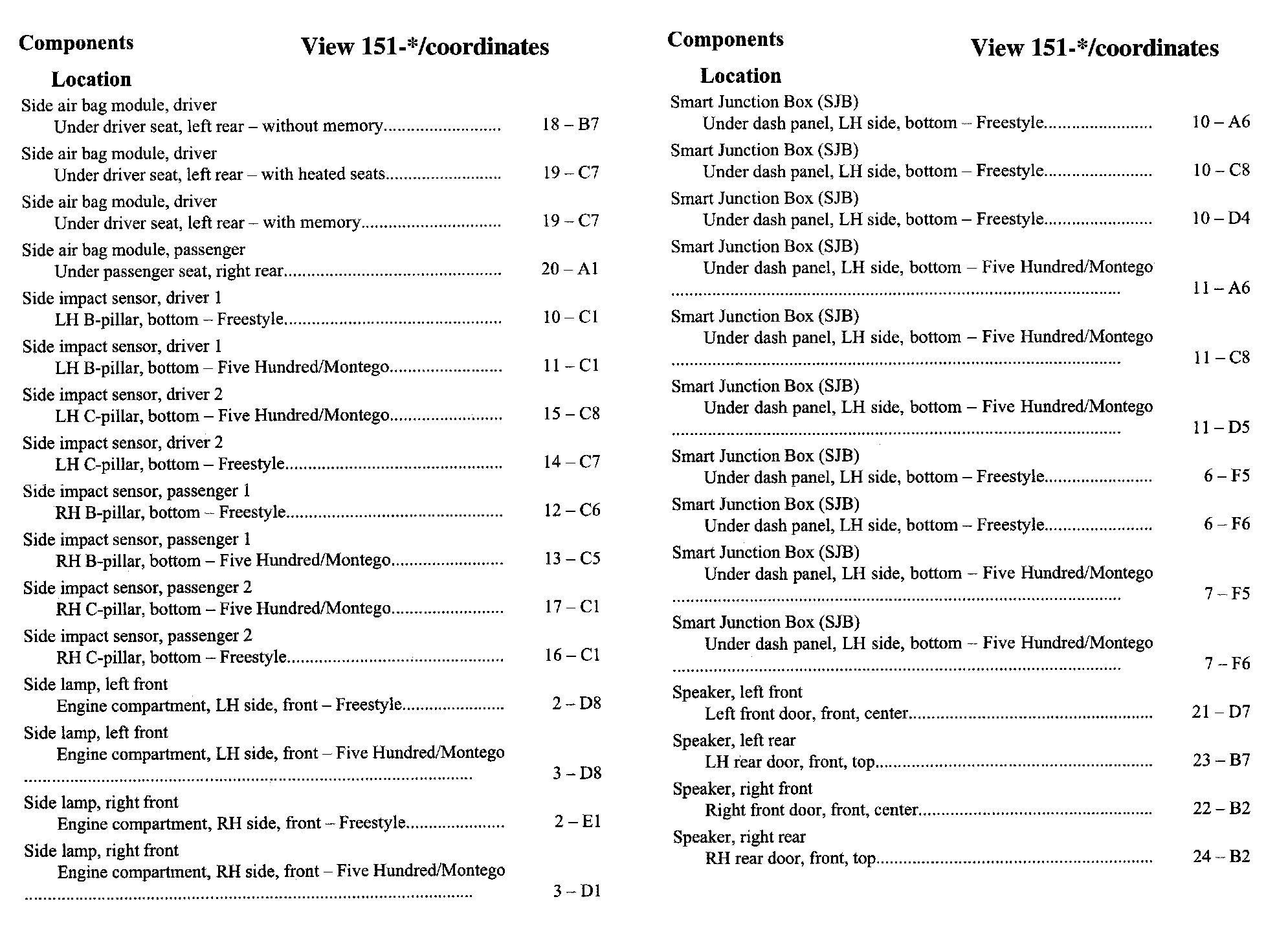

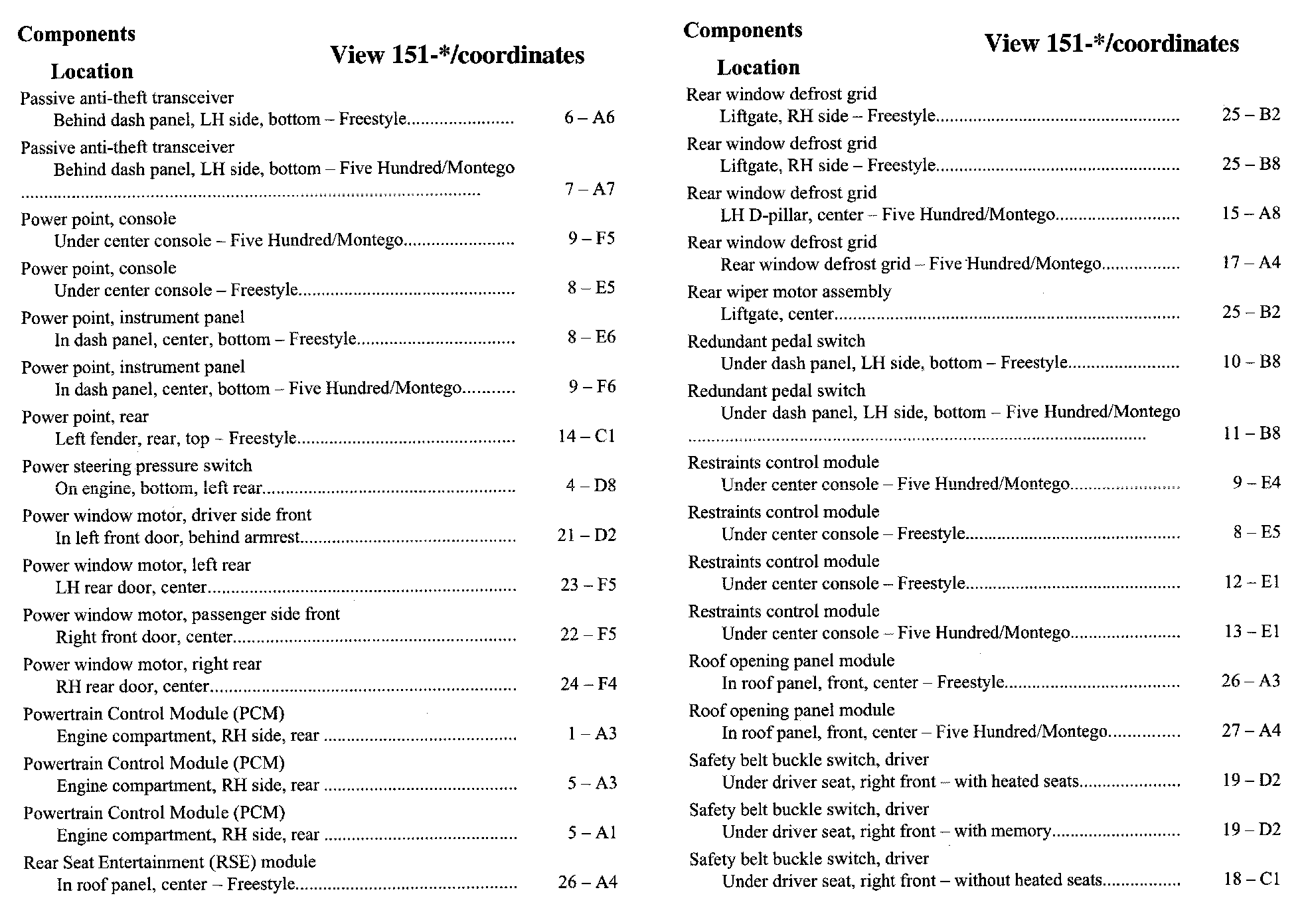

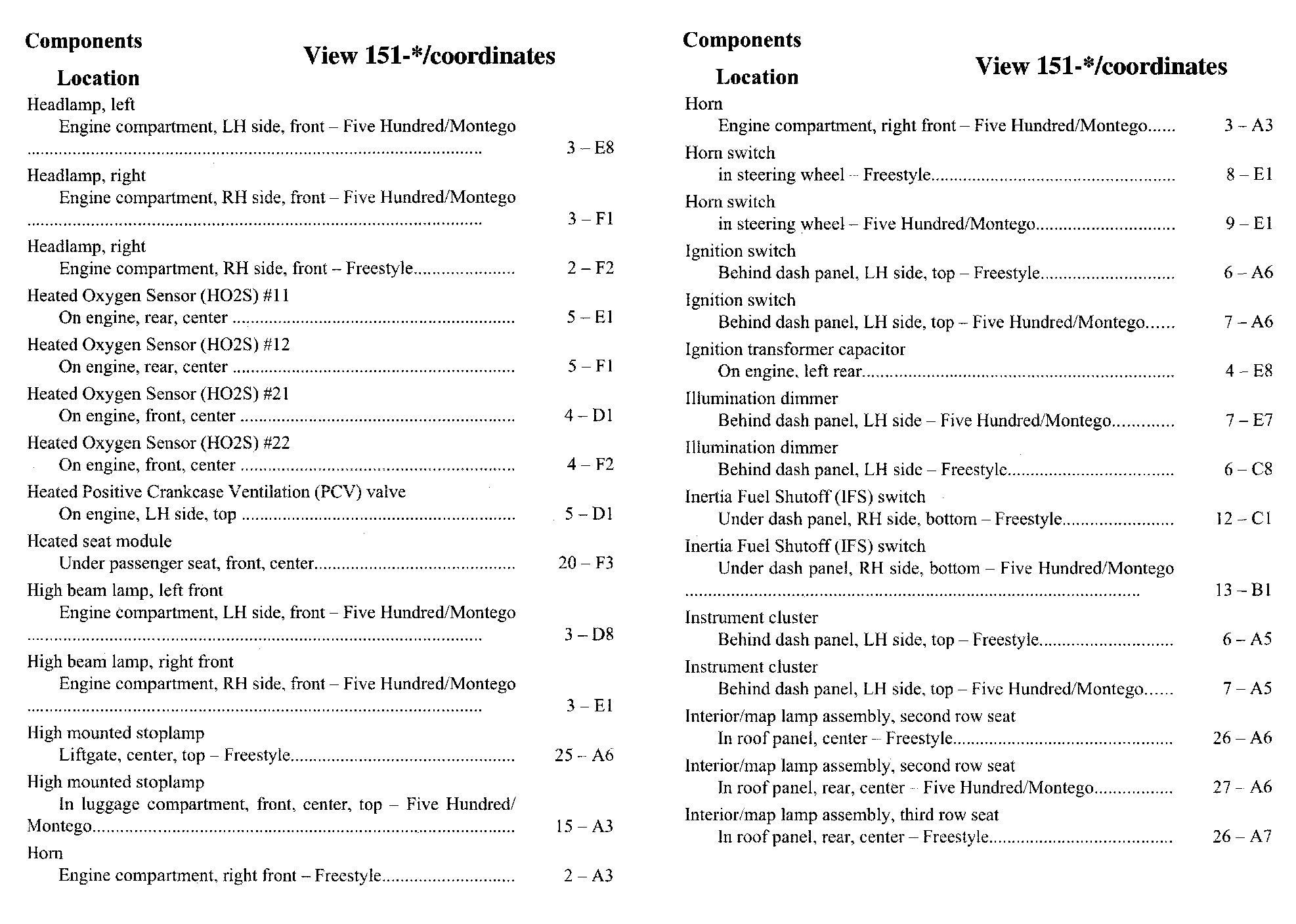

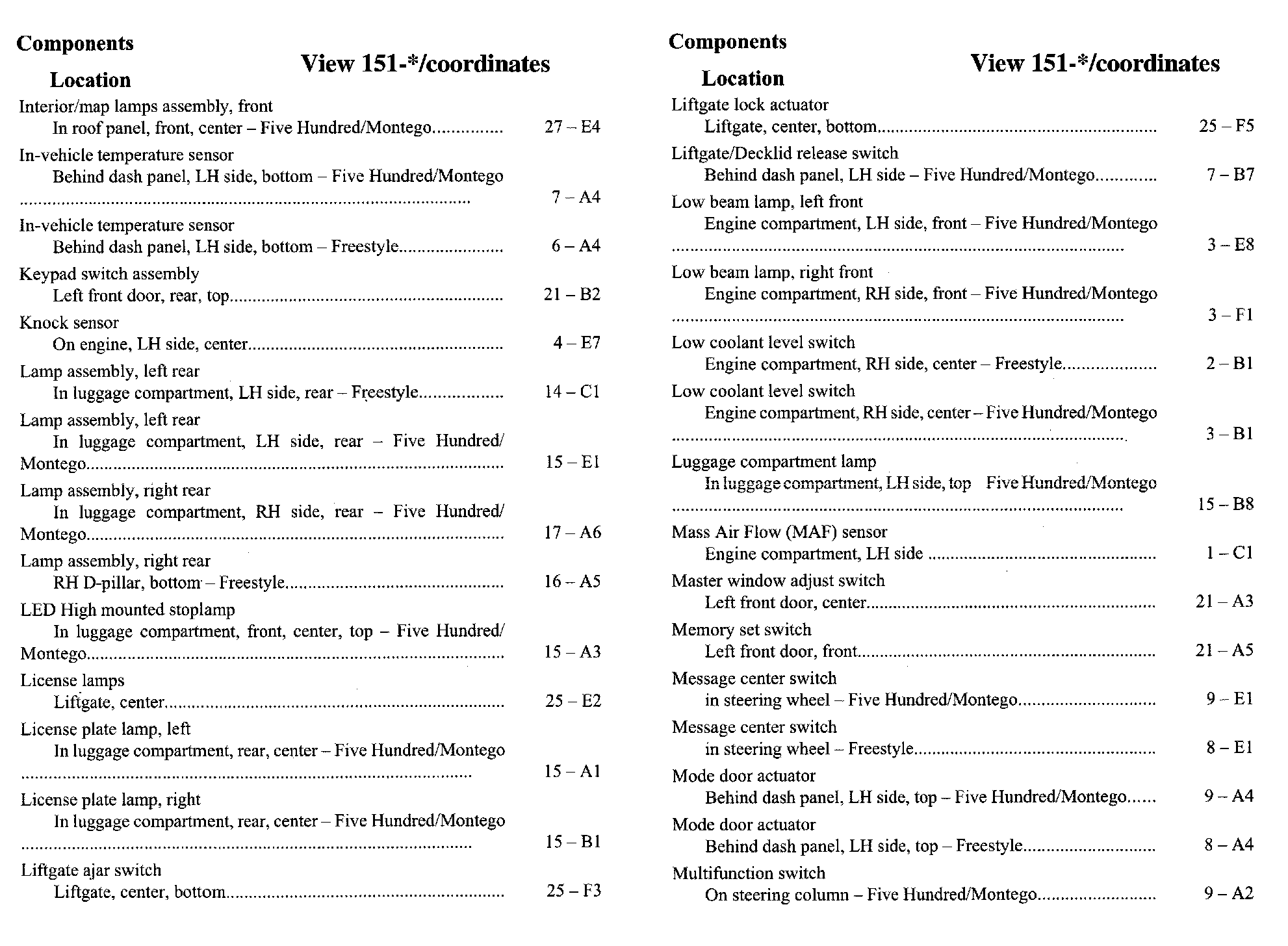

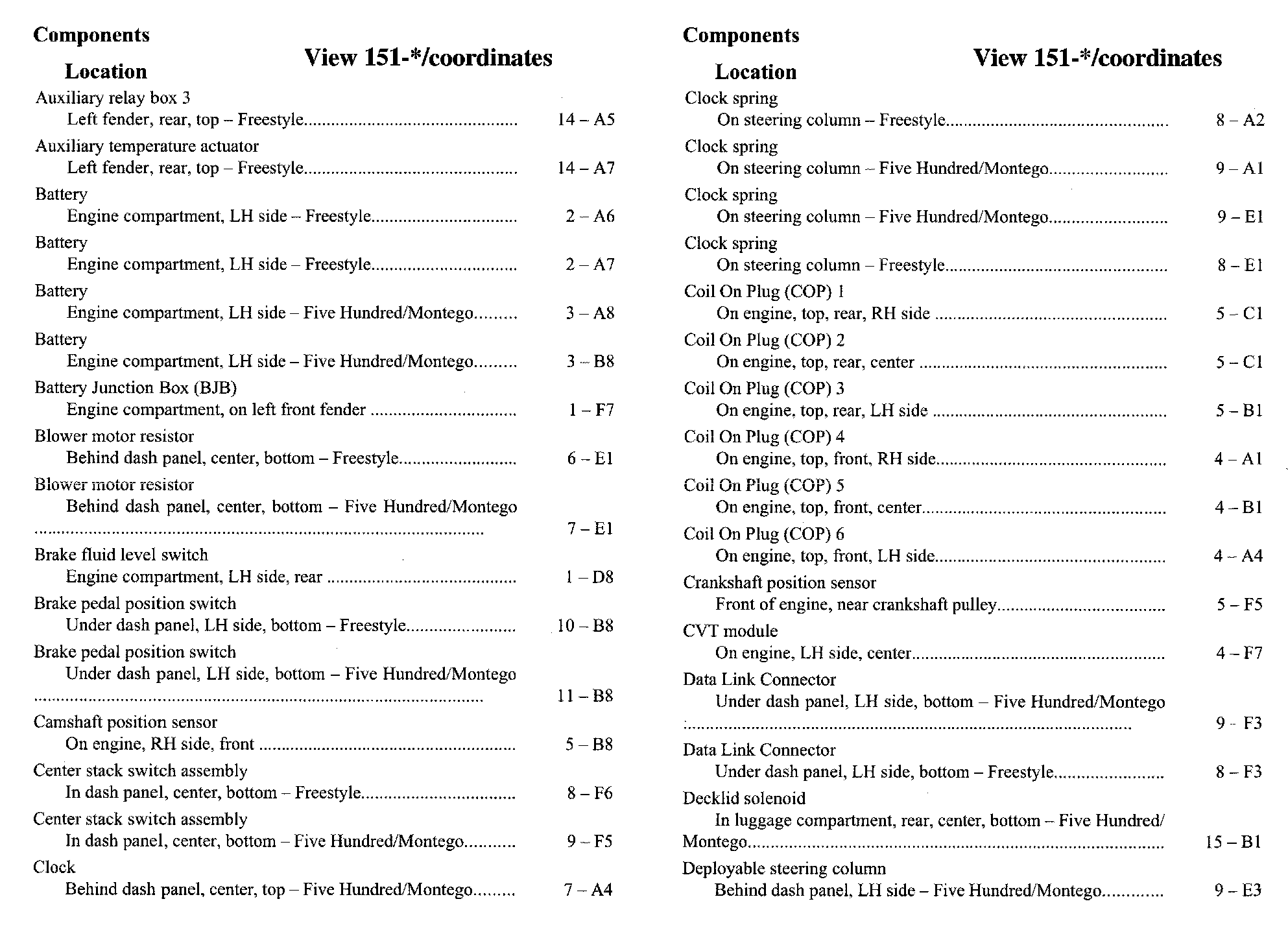

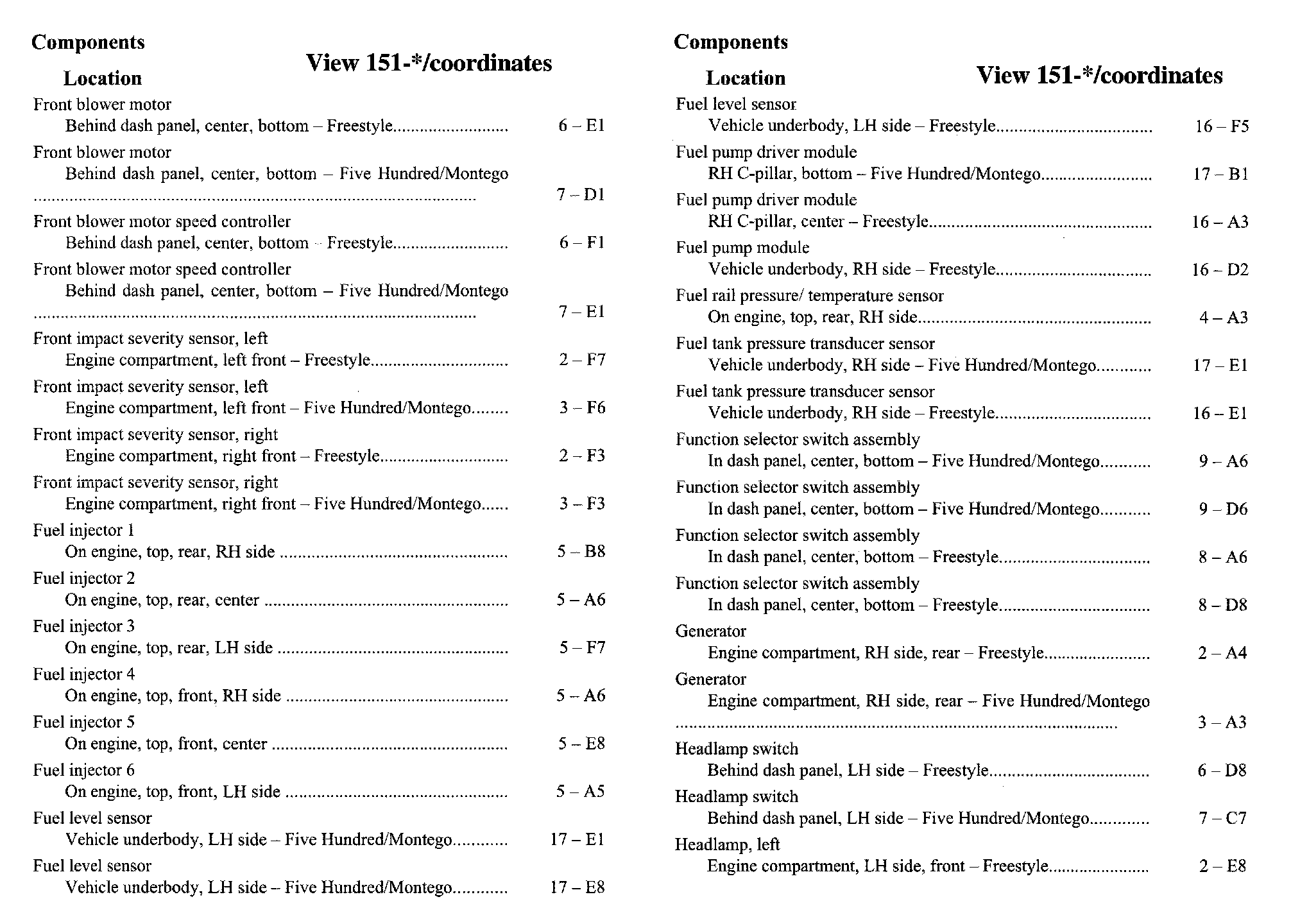

Component Location Index
PLEASE NOTE: If a link on the Component Location Index to a View is not provided, that means that the Component and/or View in question does NOT apply to the vehicle model selected.
6-Speed-Au:
Au-De:
De-Dr:
Dr-Fo:
Fr-He:
He-In:
In-Mu:
Mu-Pa:
Pa-Sa:
Sa-Si:
Si-Sp:
Sp-Wh:
Wh-Wi:
