Electronic Brake Control Module: Service and Repair

Anti-Lock Brake System (ABS) Module

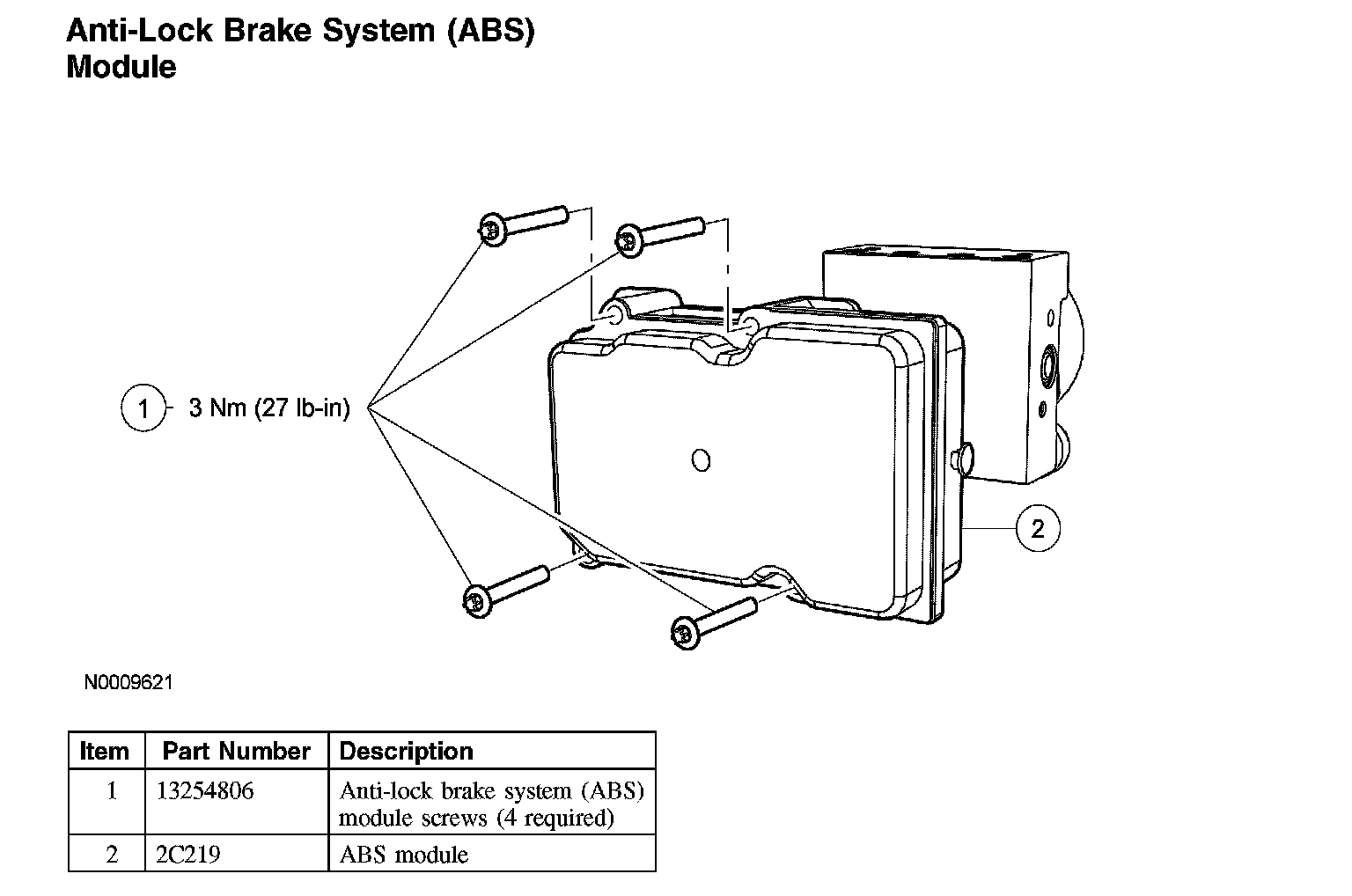

Anti-Lock Brake System (ABS) Module:

Removal and Installation

CAUTION: Electronic modules are sensitive to electrical charges. The ABS module can be damaged if exposed to these charges.

NOTE: When installing a new anti-lock brake system (ABS) module, it must be configured (using vehicle as-built data) and calibrated. Follow the scan tool directions for the calibration procedures. For module configuration, refer to Information Bus (Module Configuration).

1. Remove the hydraulic control unit (HCU).
2. Remove the 4 screws and the ABS module.
^ To install, tighten to 3 Nm (27 lb-in).
3. To install, reverse the removal procedure.
