Smart Junction Box (SJB): Notes

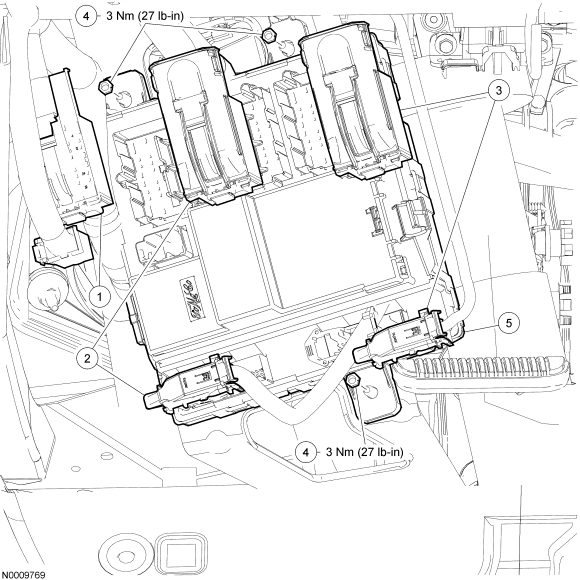

Fig 1: Exploded View Of Smart Junction Box SJB With Torque Specifications
GF0018336Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - SJB electrical connectors (part of 14290)
2 - SJB electrical connectors (part of 14401)
3 - SJB electrical connectors (part of 14A005)
4 - SJB nuts (3 required)
5 14A068 SJB
