Seat - Exploded View, Front

NOTE: Passenger seat shown, driver seat similar.

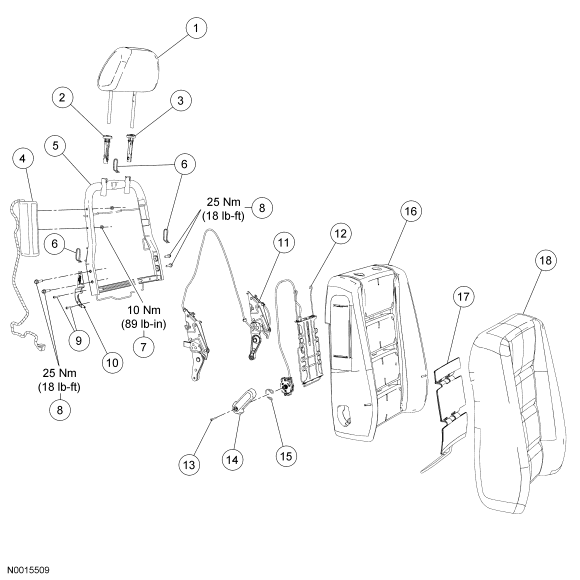

Fig 1: Exploded View Of Front Seat Backrest With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	611A08	Head restraint assembly
2	611D60	Outboard head restraint guide
3	611D62	Inboard head restraint guide
4	611D10	Side air bag module
5	61018	Backrest frame
6	-	Tie straps (3 required)
7	W520111	Side air bag module-to-backrest frame nut (2 required)
8	W505265	Backrest frame-to-backrest latch bolts (4 required)
9	56000	Lumbar adjuster-to-passenger seat lumbar adjust bracket screws (2 required)
10	-	Passenger seat lumbar adjust bracket
11	62614	Backrest latch assembly (passenger)
12	65500	Lumbar adjust assembly
13	-	Lumbar adjust handle screw (passenger)
14	610A76	Lumbar adjust handle
15	-	Lumbar adjust handle clip (driver)
16	64810	Backrest foam pad
17	14D696	Backrest heated seat element
18	64416	Backrest trim cover

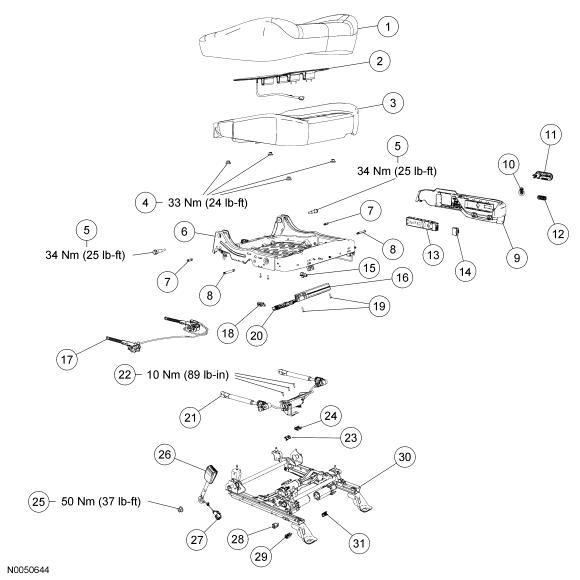

Fig 2: Exploded View Of Driver Front Seat Cushion With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	62900	Cushion trim cover
2	-	Cushion heated seat element
3	-	Cushion foam pad
4	N803766	Cushion pan-to-seat track nuts (4 required)
5	60392	Cushion pan-to-backrest frame bolts (2 required)
6	63100	Cushion pan
7	611B24	Small roll pins (2 required)
8	620A24	Large roll pins (2 required)
9	62184	Side shield
10	14D716	Power backrest adjust knob (if equipped)
11	620A90	Manual backrest adjust handle (if equipped)
12	14711	Seat control switch knob
13	14A701	Seat control switch
14	-	Seat control switch electrical connector (part of 14A698)
15	-	Side air bag module electrical connector (part of 14A698) (if equipped)
16	-	Driver seat module (if equipped)
17	619A74	Manual seat backrest adjuster (if equipped)
18	-	Heated seat element electrical connector (part of 14A698)
19	-	Rivets (2 required)
20	-	Driver seat module electrical connector (if equipped)
21	619A74	Power seat backrest adjuster (if equipped)
22	-	Power seat backrest adjuster mounting screws (3 required) (if equipped)
23	-	Fore/aft power seat motor electrical connector (part of 14A698)
24	-	Power seat backrest adjuster motor electrical connector (part of 14A698) (if equipped)
25	W520114	Safety belt buckle nut
26	61203	Safety belt buckle
27	-	Safety belt buckle switch electrical connector (part of 61203)
28	-	Supplemental restraint system (SRS) seat position sensor electrical connector (part of 14A698)
29	-	Front height power seat motor electrical connector (part of 14A698)
30	61700	Seat track
31	-	Rear height power seat motor electrical connector (part of 14A698)

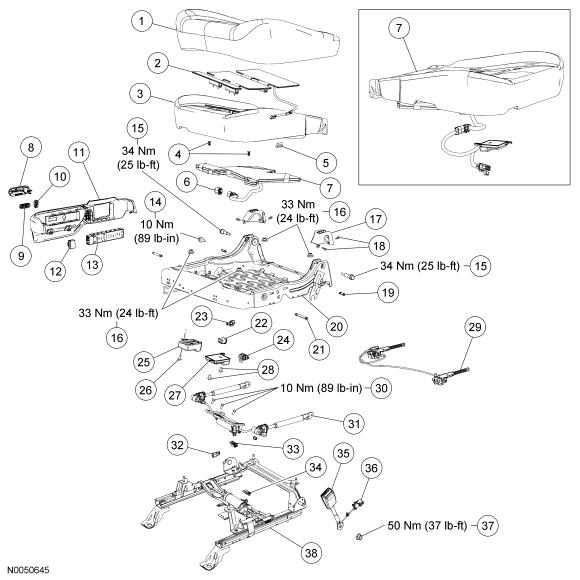

Fig 3: Exploded View Of Passenger Front Seat Cushion With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	62900	Cushion trim cover
2	-	Cushion heated seat element
3	-	Cushion foam pad (part of original equipment [OE] 14B422/ part of service kit 603B02)
4	-	Pin-type retainers (part of 14B422)
5	-	Cushion heated seat element electrical connector (part of 14A698) (if equipped)
6	-	Occupant classification sensor (OCS) pressure sensor electrical connector (part of 14A698)
7	-	OCS (part of OE 14B422/ part of service kit 603B02)
8	620A90	Manual recline handle (if equipped)
9	14711	Seat control switch knob
10	14D716	Power backrest adjust knob (if equipped)
11	62184	Side shield
12	-	Seat control switch connector (part of 14A698)
13	14A701	Seat control switch
14	-	Cushion pan-to-seat track bolt
15	60392	Cushion-to-lower latch/backrest frame bolt (2 required)
16	N803766	Cushion pan-to-seat track nuts (4 required)
17	631W34/ 631W35	Cushion pivot cover (inboard/outboard)
18	-	Screws (4 required)
19	611B24	Small roll pin (2 required)
20	63100	Cushion pan
21	620A24	Large roll pin (2 required)
22	-	Heated seat module electrical connector (part of 14A698) (if equipped)
23	-	Backrest heated seat element electrical connector (part of 14A698)
24	-	ECU electrical connector (part of 14A698)
25	14C724	Heated seat module (if equipped)
26	-	Rivet
27	-	Electronic control unit (ECU) (part of original equipment [OE] 14B422/ part of service kit 603B02)
28	391950	Rivets (2 required)
29	619A74	Manual seat backrest adjuster (if equipped)
30	-	Power seat backrest adjuster mounting screws (3 required) (if equipped)
31	619A74	Power seat backrest adjuster (if equipped)
32	-	Belt tension sensor (BTS) electrical connector (part of 14A698)
33	-	Power seat backrest adjuster electrical connector (part of 14A698) (if equipped)
34	-	Power seat track electrical connector (part of 14A698)
35	61203	Safety belt buckle
36	-	Buckle switch electrical connector (part of 61203)
37	W520114	Safety belt buckle nut
38	61700	Seat track

For additional information, refer to the following procedures.
