Fuel Charging Wiring Harness: Notes

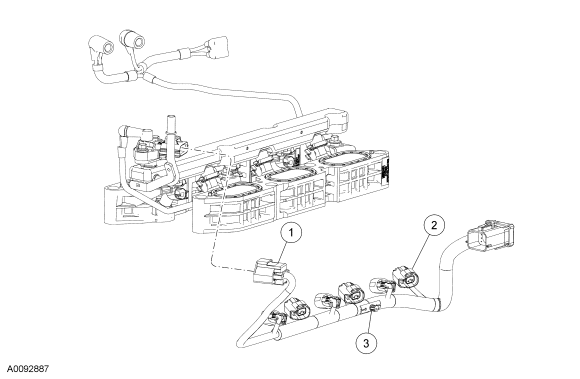

Fig 1: Exploded View Of Fuel Charging Wiring Harness
GF0017217Courtesy of FORD MOTOR CO.
Item Part Number Description
1 14A464 Fuel rail pressure and temperature sensor electrical connector
2 14A464 Fuel injector electrical connector (6 required)
3 9H589 Fuel charging wiring harness
