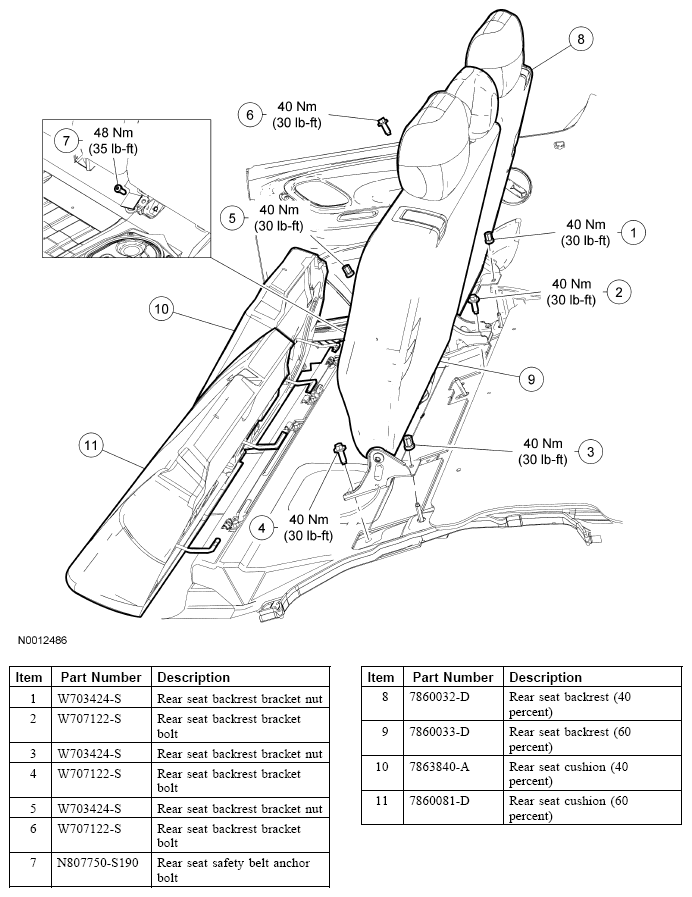

Seat - Exploded View, Rear
WARNING: This page is about a different car, the 2006 Mercury Mariner and 2006 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
60/40 Split Bench
Courtesy of FORD MOTOR CO.
- For additional information, refer to the procedures in this article.
