Compressor Manifold and Tube Assembly: Notes
Material
| Item | Specification |
|---|---|
| PAG Refrigerant Compressor Oil (R-134a Systems) YN-12-D |
WSH-M1C231-B |

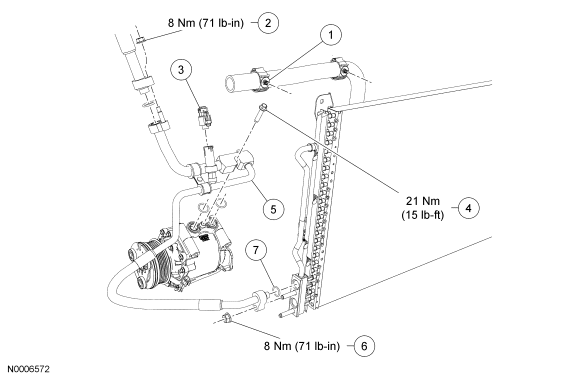

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Coolant reservoir hose retainer (2 required) |
| 2 | W520413 | Compressor manifold and tube suction fitting nut |
| 3 | 12B637 | A/C pressure transducer electrical connector |
| 4 | W704692 | Compressor manifold bolt |
| 5 | 19D734 | Compressor manifold and tube assembly |
| 6 | W520413 | Condenser inlet fitting nut |
| 7 | 19E889 | O-ring seal (4 required) |
