Lamp Assembly Connectors

Fig 1: Lamp Assembly Connector End View (C414)
G05168775Courtesy of FORD MOTOR CO.

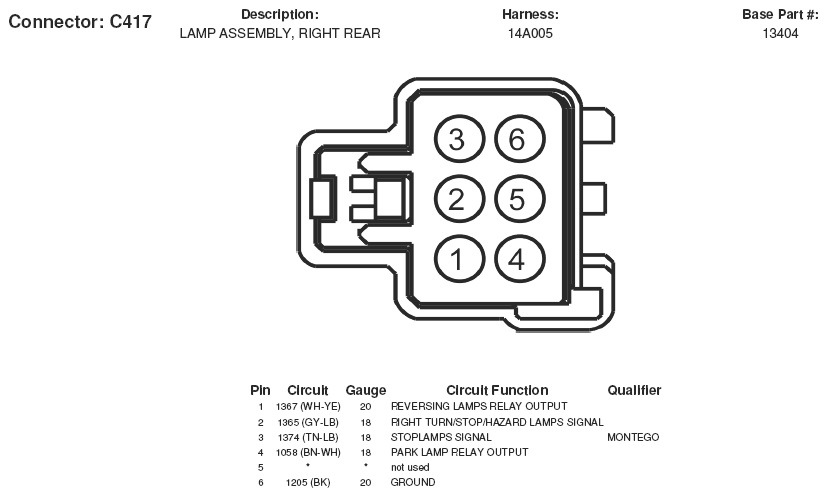

Fig 2: Lamp Assembly Connector End View (C417)
G05168776Courtesy of FORD MOTOR CO.
