Wheel Speed Sensor Connectors

Fig 1: Wheel Speed Sensor Connector End View (C150)
G05168690Courtesy of FORD MOTOR CO.

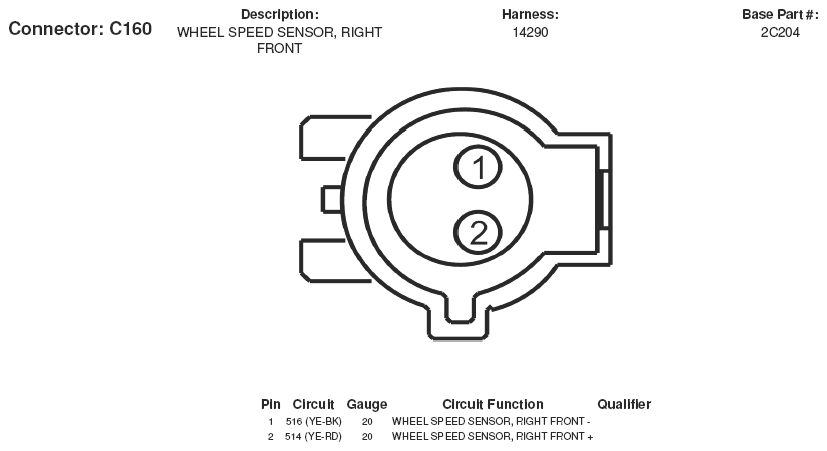

Fig 2: Wheel Speed Sensor Connector End View (C160)
G05168692Courtesy of FORD MOTOR CO.

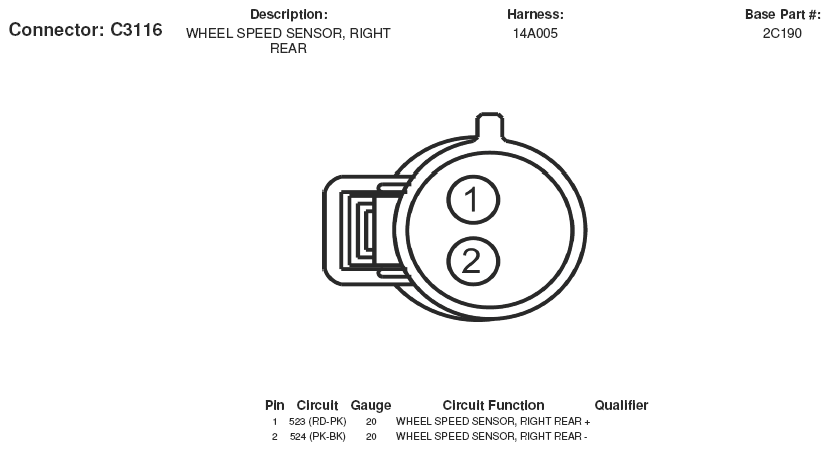

Fig 3: Wheel Speed Sensor Connector End View (C3116)
G05168905Courtesy of FORD MOTOR CO.

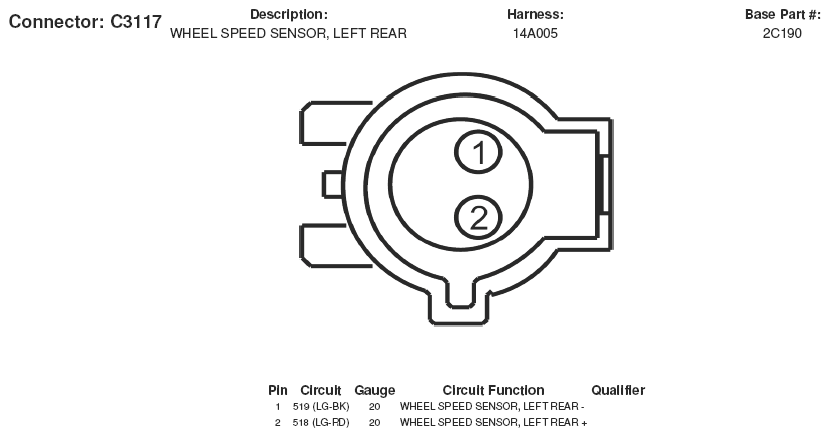

Fig 4: Wheel Speed Sensor Connector End View (C3117)
G05168906Courtesy of FORD MOTOR CO.
