System Diagram
Main Control Pump Assembly

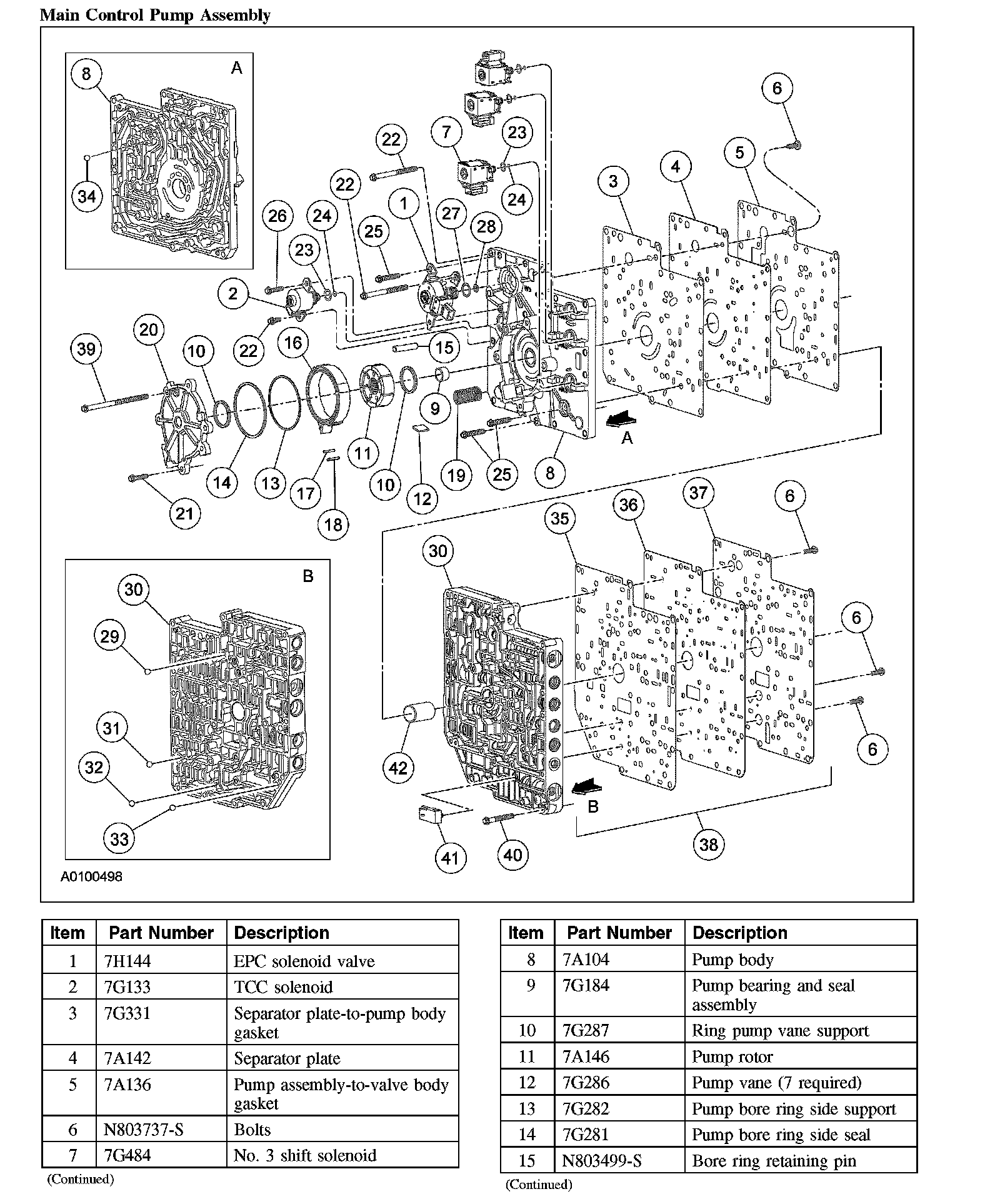

Main Control Pump Assembly (Part 1):

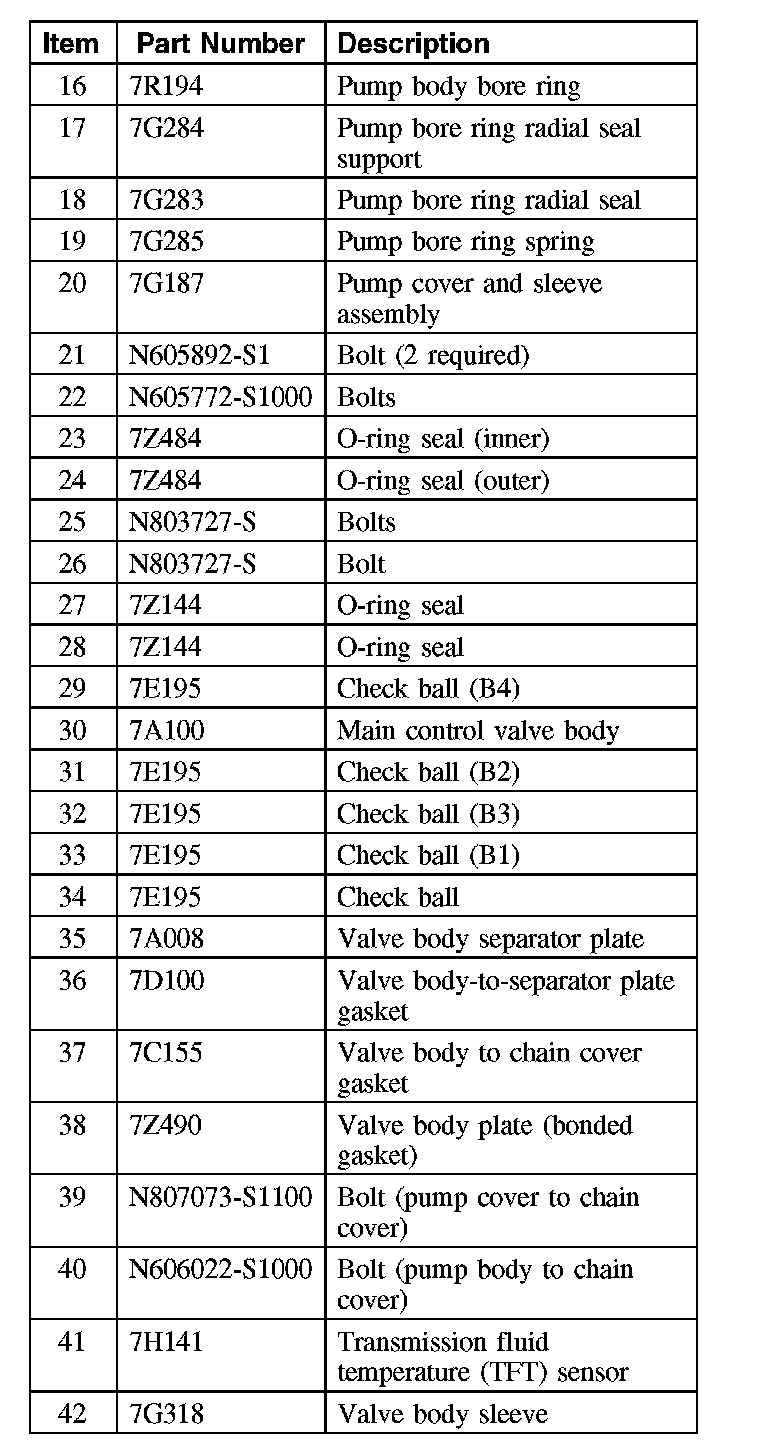

Main Control Pump Assembly (Part 2):
