Front

Disc Brake System - Exploded View

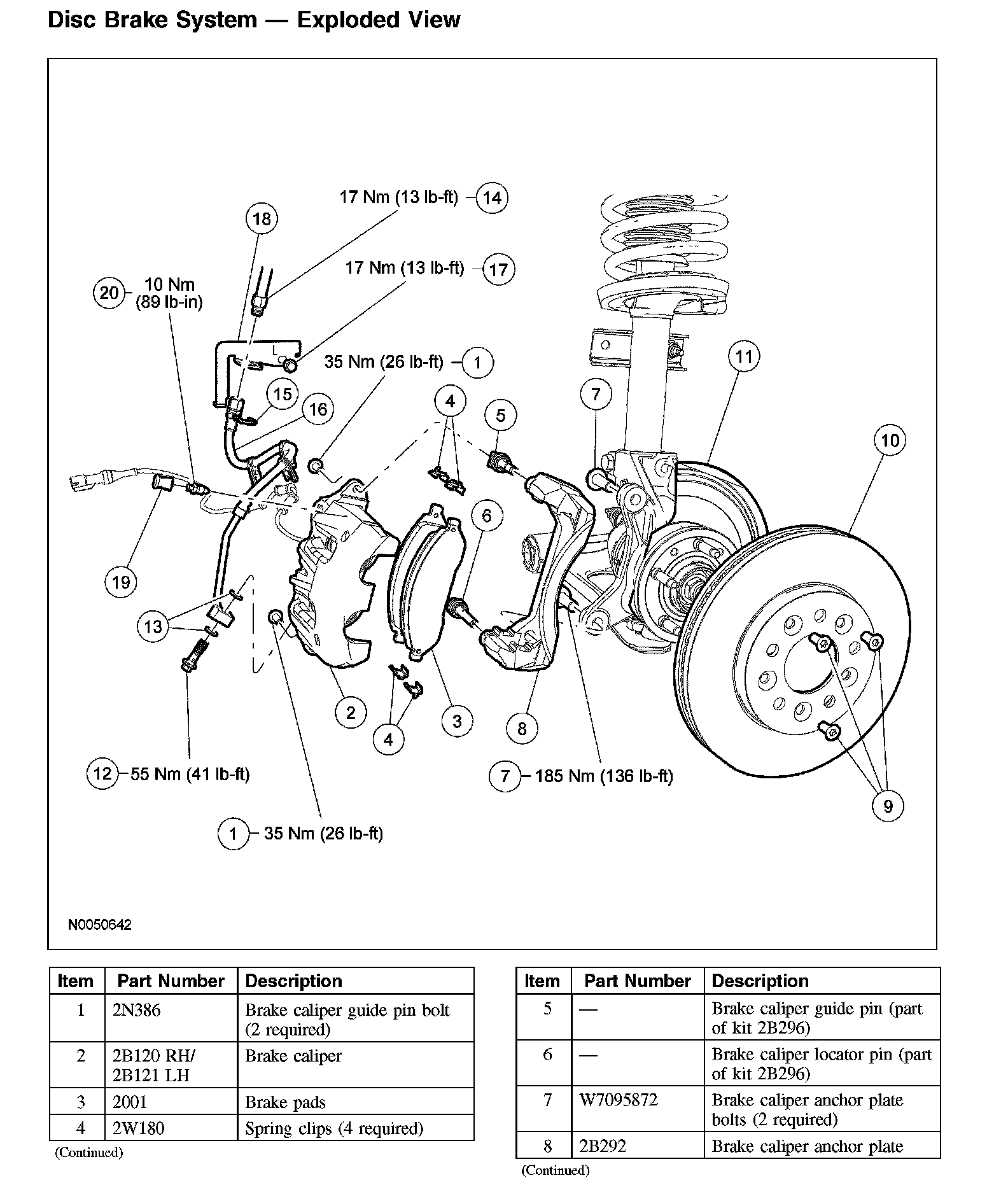

Disc Brake System - Exploded View (Part 1):




Disc Brake System - Exploded View (Part 2):
