Wiper and Washer Systems

WIPER AND WASHER SYSTEM - EXPLODED VIEW

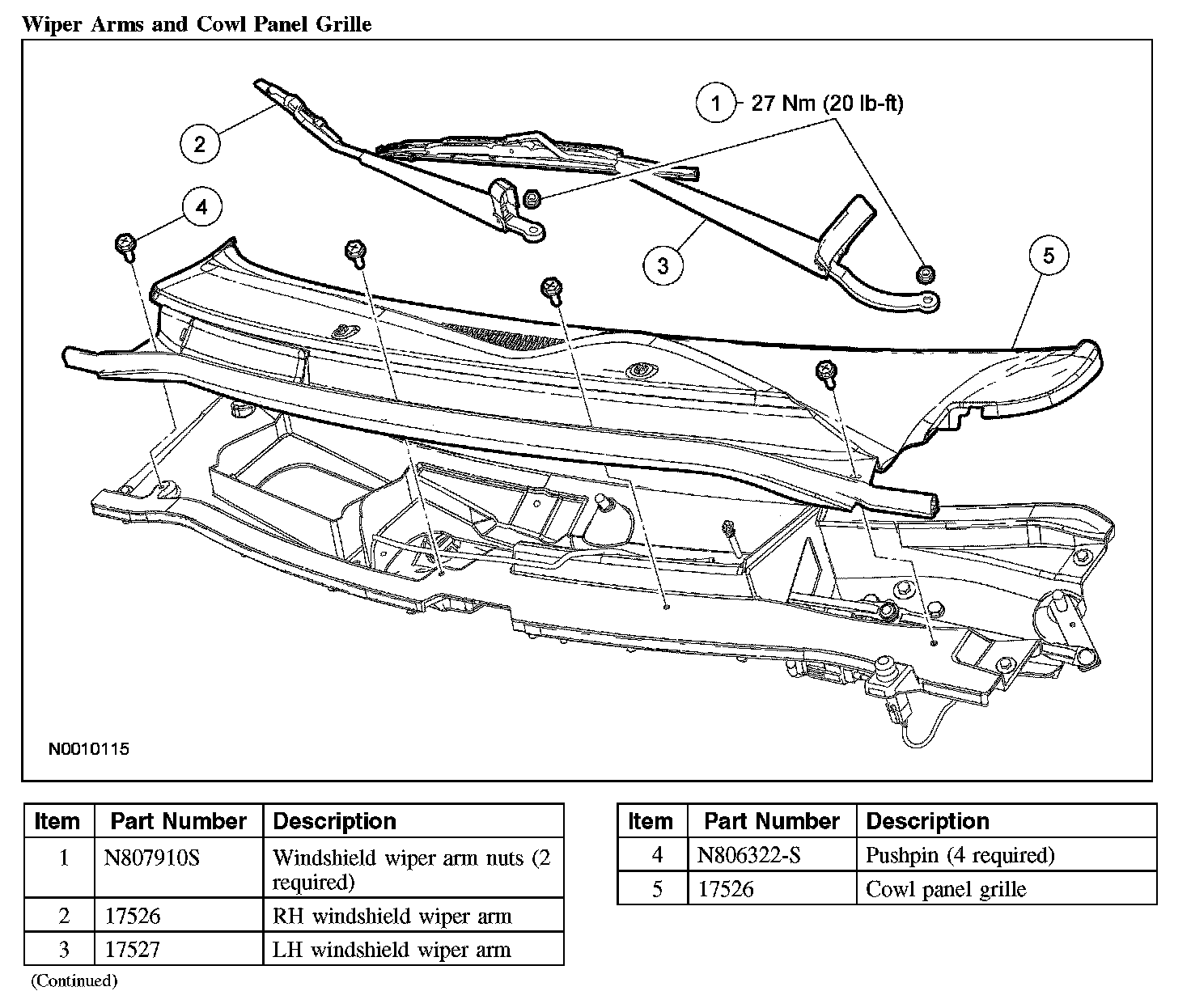

Wiper Arms and Cowl Panel Grille:

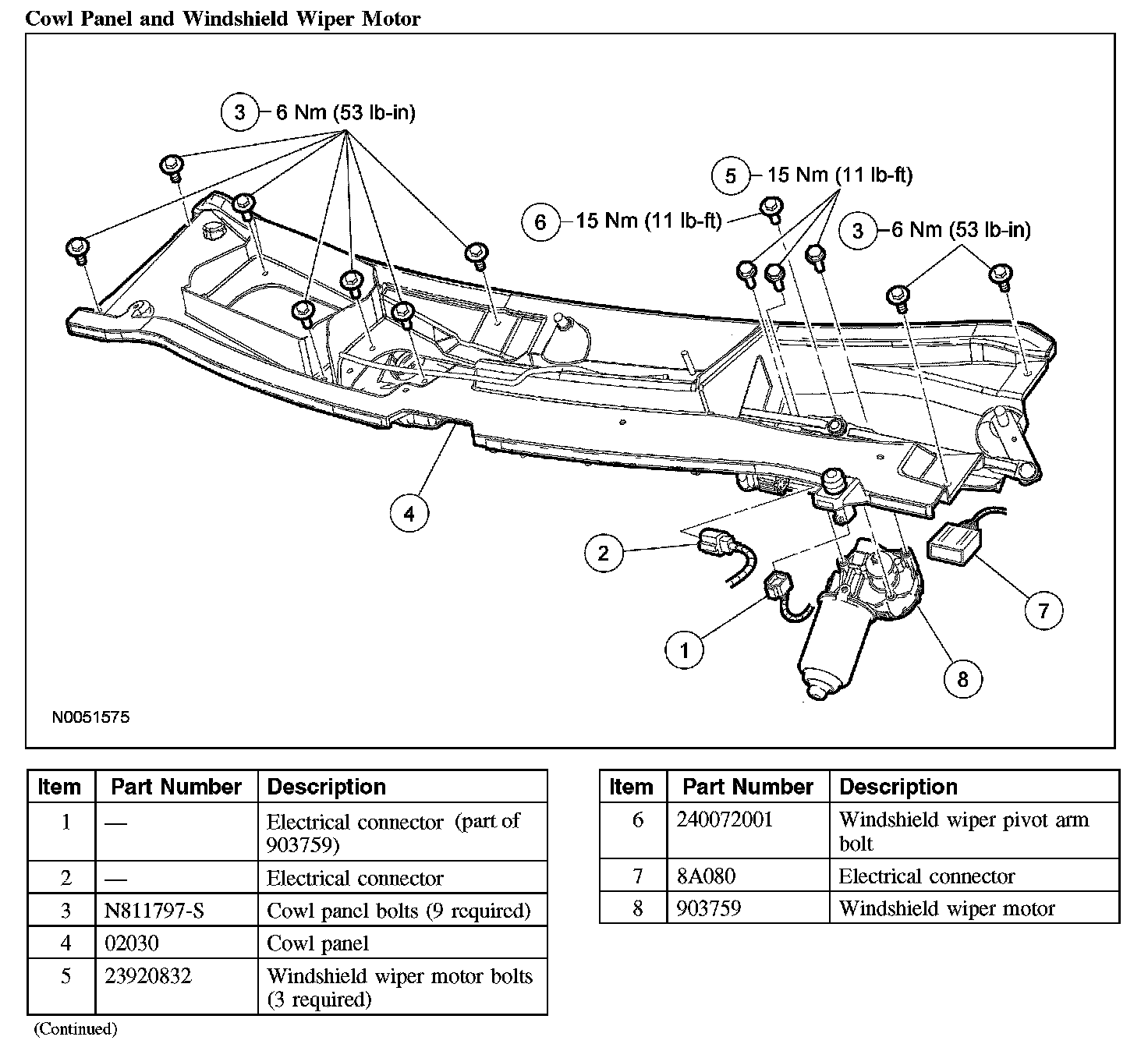

Cowl Panel and Windshield Wiper Motor:






Removal and Installation
1. For additional information, refer to the procedures.
