Front Suspension - Exploded View

Front Suspension - Exploded View

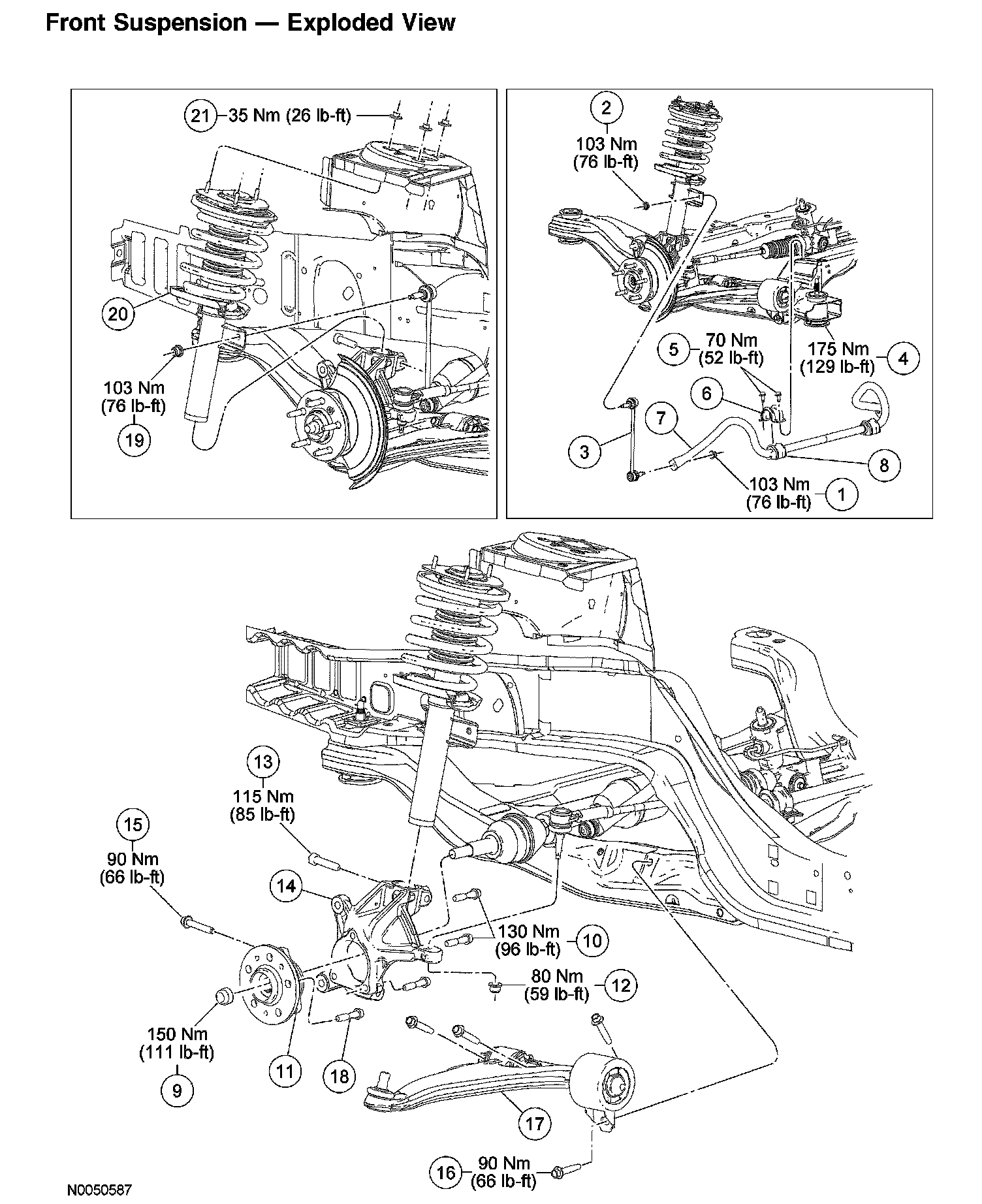

Front Suspension - Exploded View (Part 1):

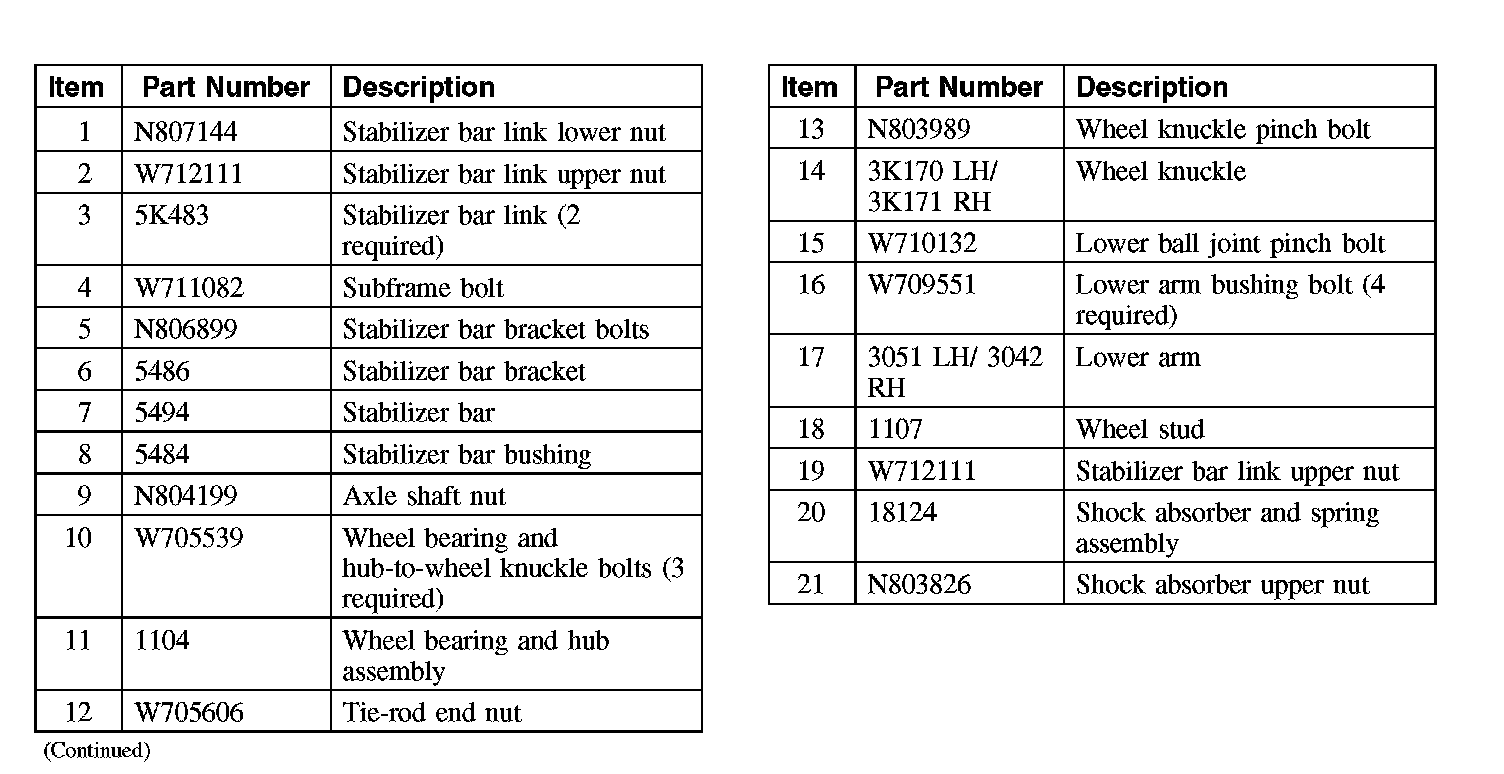

Front Suspension - Exploded View (Part 2):
