Plenum Chamber: Notes

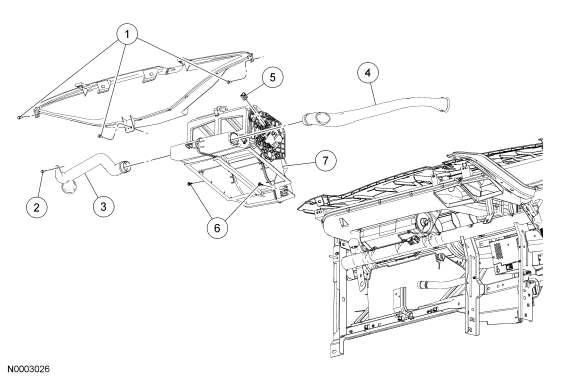

Fig 1: Exploded View Of Plenum Chamber
GF0033731Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W701696 Defroster duct screws (3 required)
2 N807011 RH demister duct screw
3 19E630 RH demister duct
4 19E630 LH demister duct
5 14401 Defrost/panel/floor mode door actuator electrical connector
6 N807011 Plenum chamber screws (3 required)
7 18471 Plenum chamber
