Adjustable Pedal Switch Connector

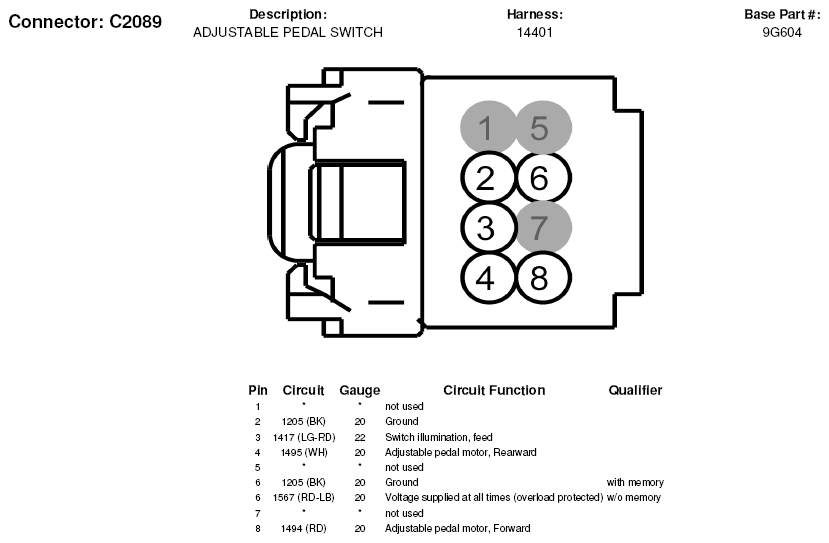

Fig 1: Adjustable Pedal Switch Connector End View (C2089)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
