Audio Unit Connectors

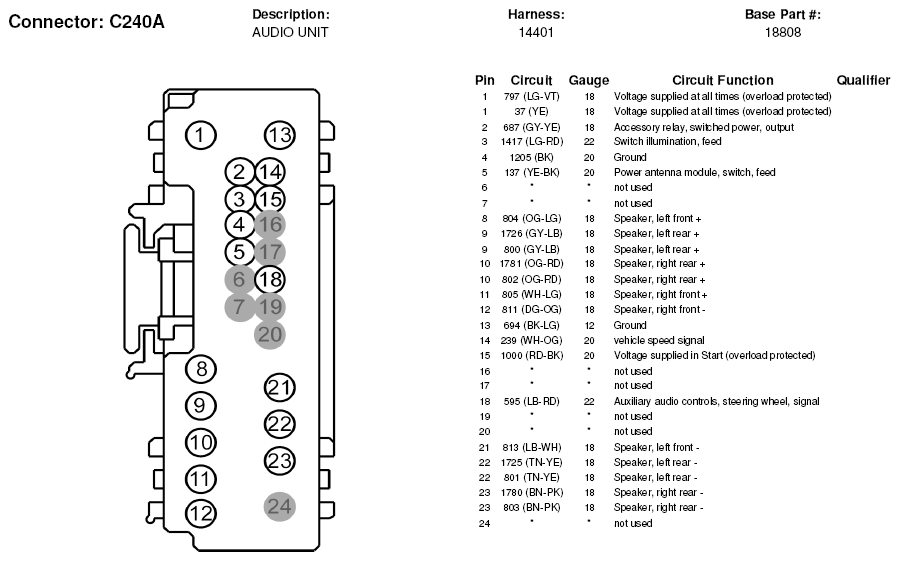

Fig 1: Audio Unit Connector End View (C240A)
G05181512Courtesy of FORD MOTOR CO.

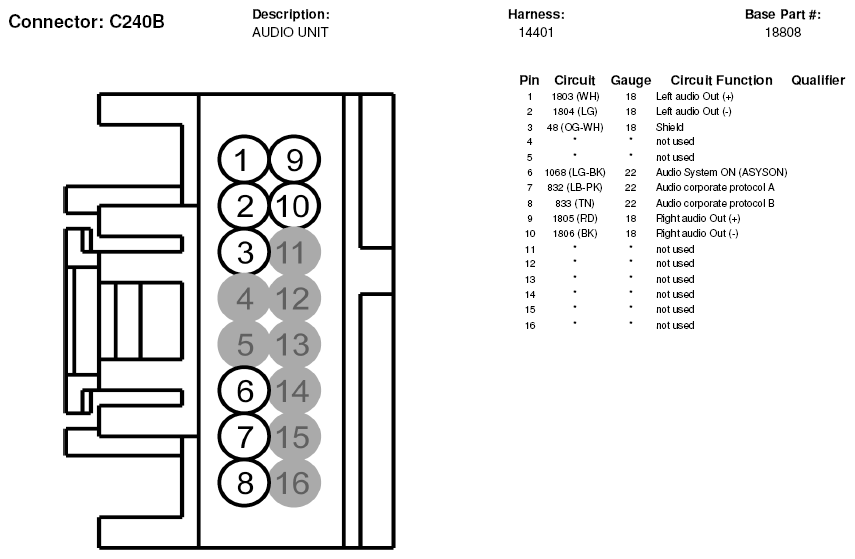

Fig 2: Audio Unit Connector End View (C240B)
G05181513Courtesy of FORD MOTOR CO.
