Cylinderhead Temperature Sensor Connector

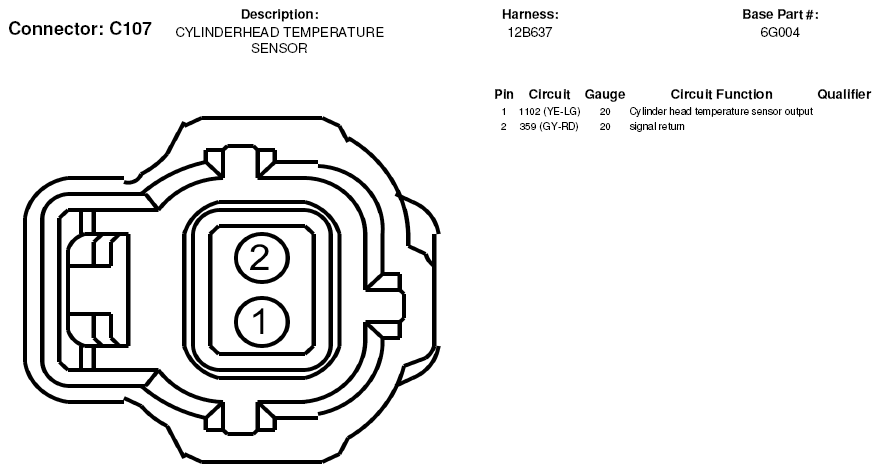

Fig 1: Cylinderhead Temperature Sensor Connector End View (C107)
Courtesy of FORD MOTOR CO.
