Door Lock Switch Connector

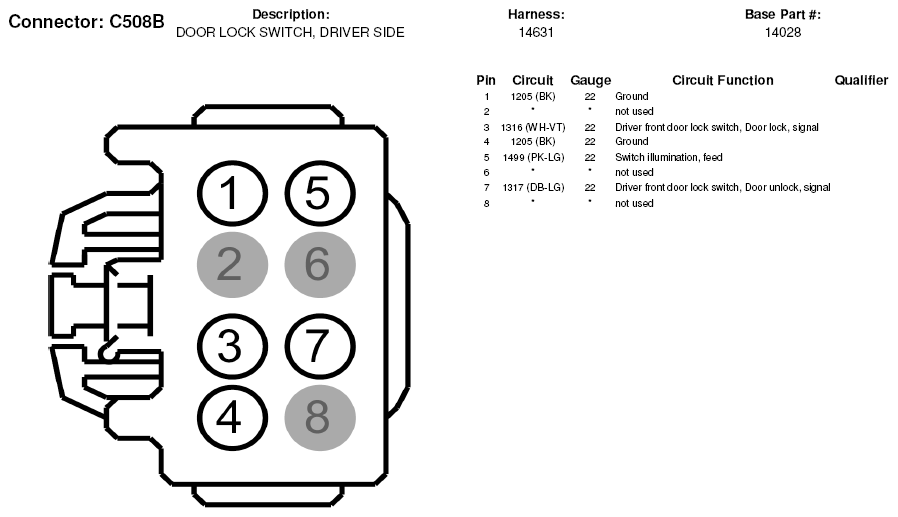

Fig 1: Door Lock Switch Connector End View (C508B)
G05181590Courtesy of FORD MOTOR CO.

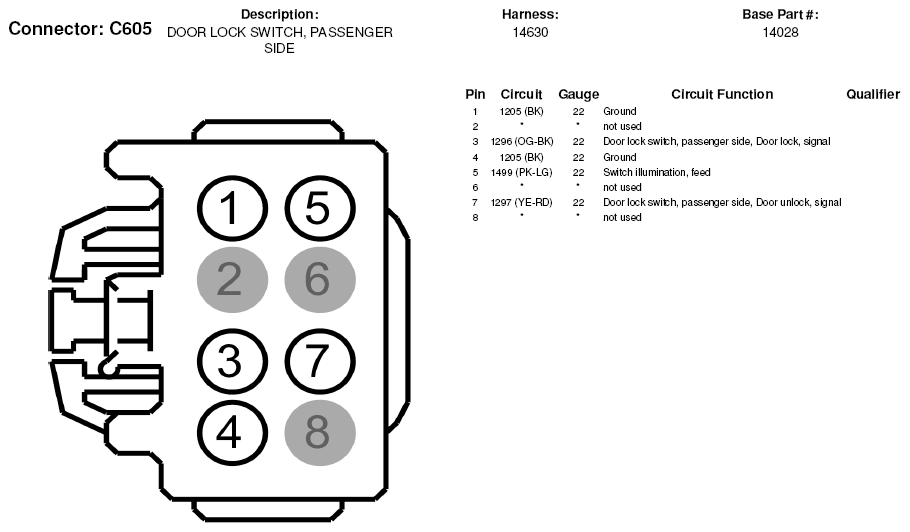

Fig 2: Door Lock Switch Connector End View (C605)
G05181602Courtesy of FORD MOTOR CO.
