Power Quarter Window Switch Connector

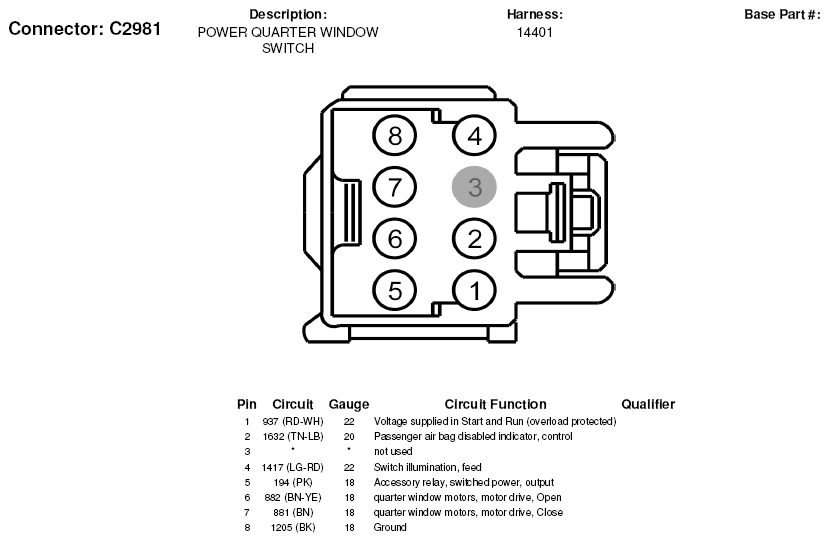

Fig 1: Power Quarter Window Switch Connector End View (C2981)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
