Blower Motor Speed Control

BLOWER MOTOR SPEED CONTROL







Removal and Installation

MKZ vehicles
1. Remove the RH lower instrument panel insulator.

All vehicles

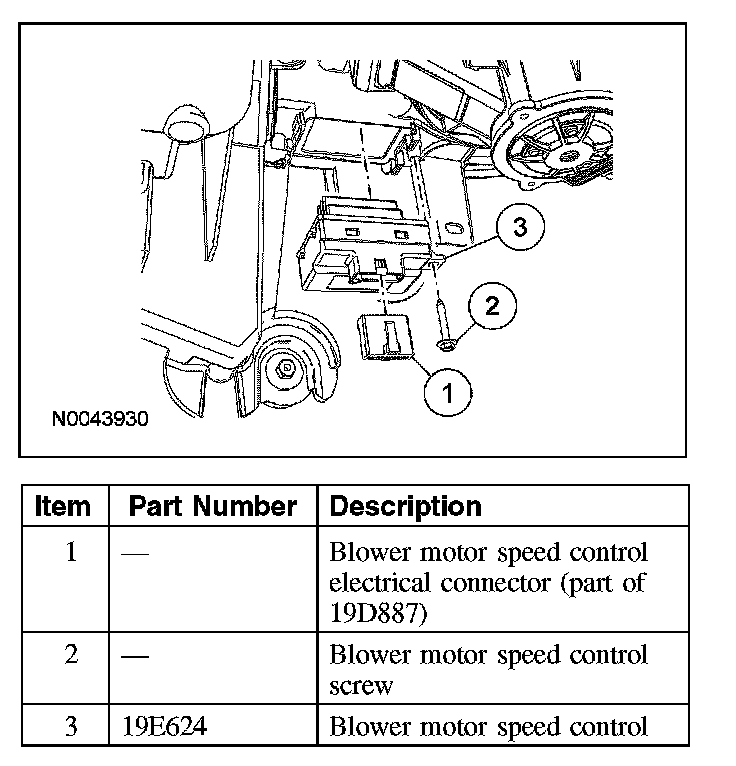

2. Disconnect the blower motor speed control electrical connector.
3. Remove the blower motor speed control screw.
4. Remove the blower motor speed control.
5. To install, reverse the removal procedure.
