Tests HM: Secondary Air Injection (AIR) System

PINPOINT TEST HM: SECONDARY AIR INJECTION (AIR) SYSTEM

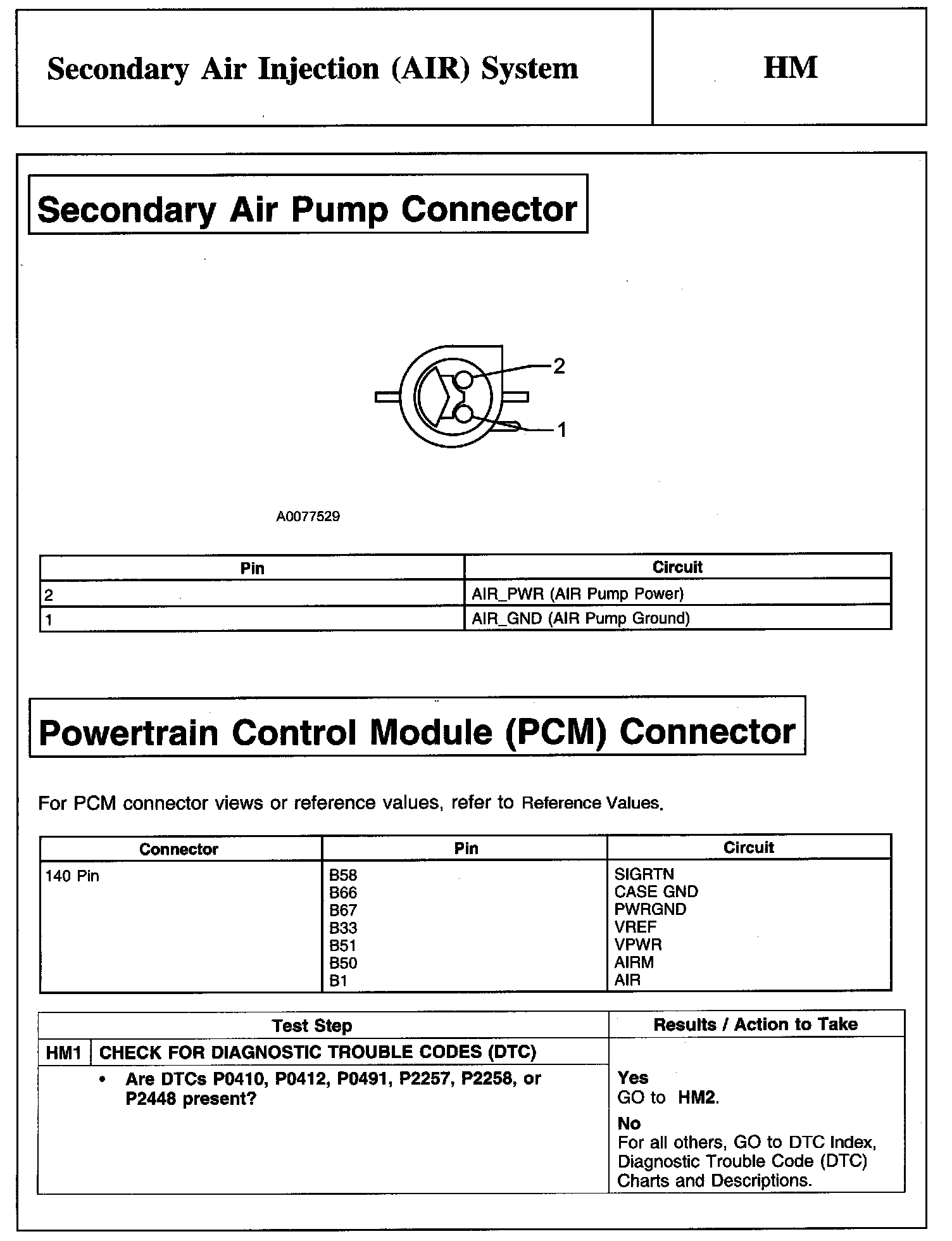

Description And Secondary AIR Relay Connector:






HM1:

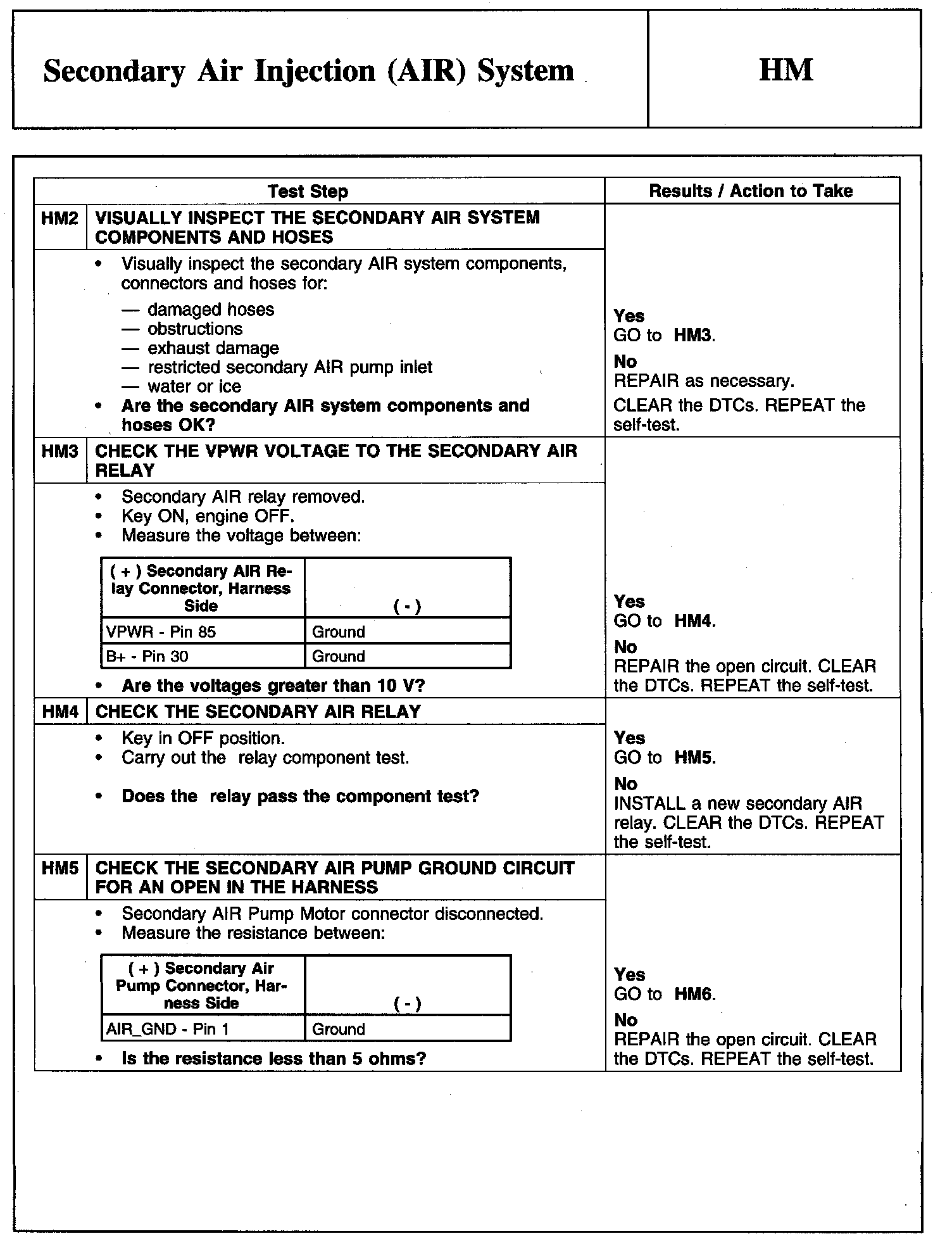

HM2-HM5:

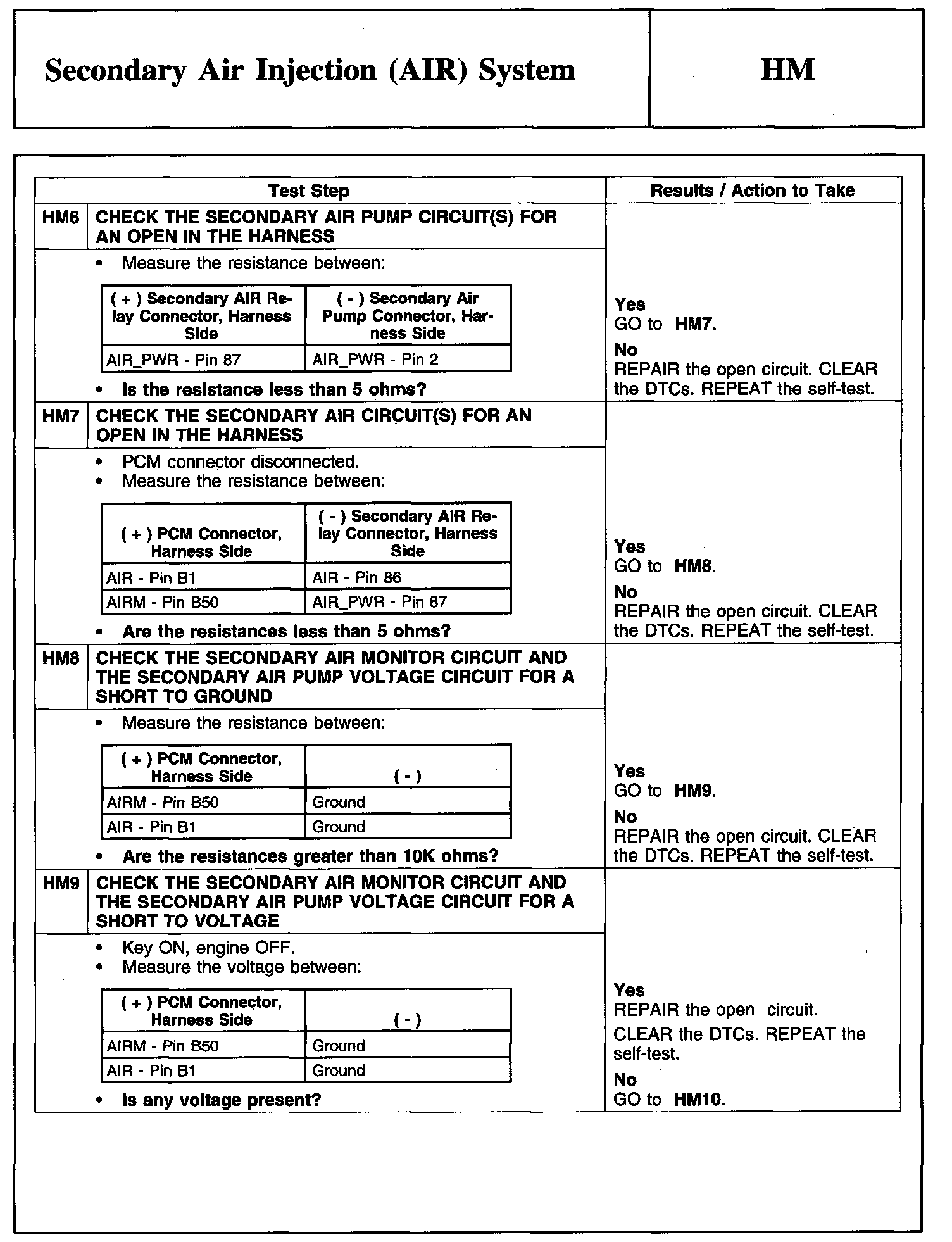

HM6-HM9:

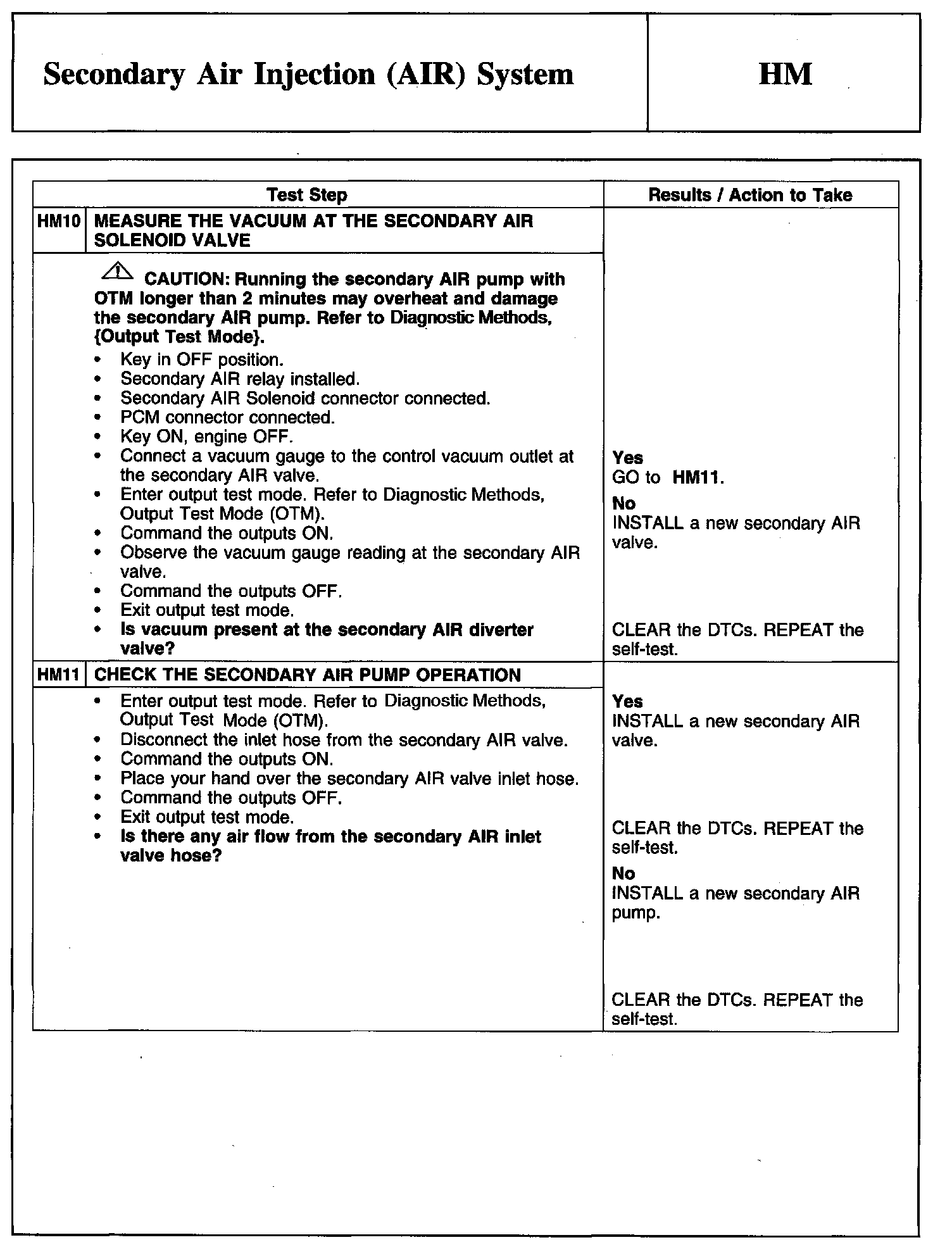

HM10-HM11:
