Mass Air Flow Sensor / Intake Air Temperature Sensor Connector

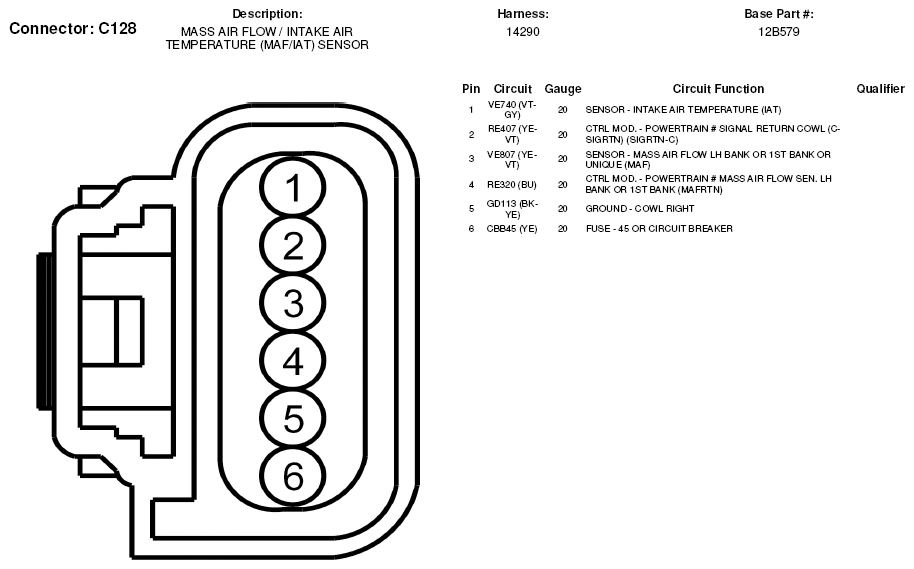

Fig 1: Mass Air Flow Sensor / Intake Air Temperature Sensor Connector End View (C128)
