Seat - Exploded View, Second Row, Taurus X

NOTE: Power-fold seat shown, manual 40 percent similar.

NOTE: LH shown, RH similar.

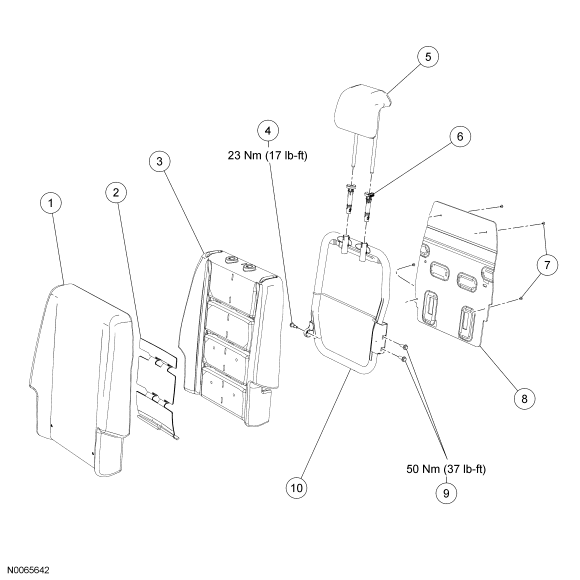

Fig 1: Taurus X Rear Seat Backrest, Second Row, 40 Percent With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	66601	Backrest trim cover
2	-	Backrest heater mat (power-fold seat only, if equipped)
3	66801	Backrest foam pad
4	W709835	Pivot bolt
5	611A09	Head restraint assembly
6	610A16	Head restraint guide (2 required)
7	56910	Backrest hard back panel-to-backrest frame screws (4 required)
8	60508	Backrest hard back panel
9	W709835	Recliner-to-backrest bolts
10	613A38	Backrest frame

NOTE: LH shown, RH similar.

NOTE: Both seat riser and seat track are shown.

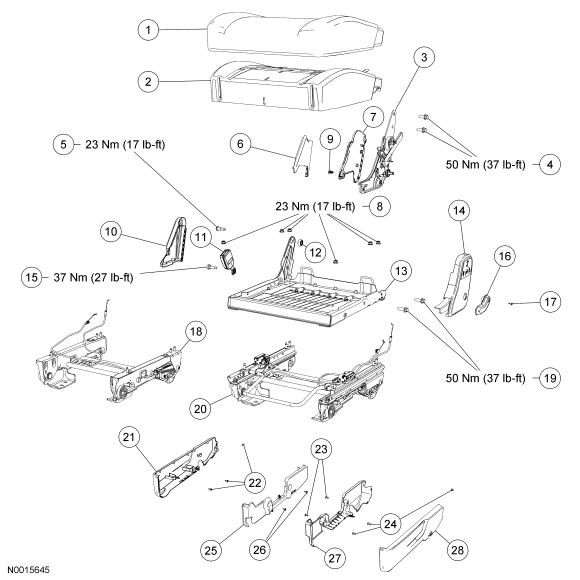

Fig 2: Exploded View Of Second Row Seat 40 Percent Cushion - Freestyle With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	63804	Cushion trim cover
2	63841	Cushion foam pad
3	61382	Recliner
4	W709835	Recliner-to-backrest bolts (2 required)
5	W709835	Pivot bolt
6	61348	Inboard pivot cover
7	67460	Inboard recliner cover
8	W520112	Cushion frame-to-riser/seat track nuts (6 required)
9	W705589	Pin-type retainer
10	61348	Outboard pivot cover
11	61203	Safety belt buckle
12	613B44	Pivot grommet
13	63161	Cushion frame
14	67460	Recliner outer cover
15	-	Safety belt buckle bolt
16	617D35	Manual recline handle
17	W705247	Screw
18	606A50	Riser
19	W709835	Recliner-to-cushion frame bolts (2 required)
20	606A50	Seat track
21	63389	Riser/seat track inboard outer cover
22	56910	Screws (3 required)
23	56910	Screws (2 required)
24	56910	Screws (3 required)
25	63387	Riser/seat track inboard inner cover
26	56910	Screws (2 required)
27	63386	Riser/seat track outboard inner cover
28	63388	Riser/seat track outboard outer cover

NOTE: LH shown, RH similar.

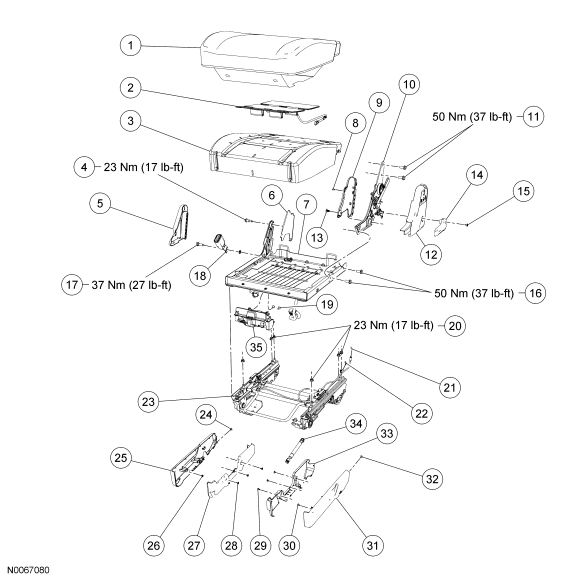

Fig 3: Taurus X Rear Seat Cushion, Second Row, Power-Fold 40 Percent With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	63805	Cushion trim cover
2	-	Heater mat
3	63841	Cushion foam pad
4	-	Pivot bolt
5	-	Outer pivot cover
6	-	Inner pivot cover
7	63161	Cushion frame
8	-	Screw
9	-	Inner recliner cover
10	-	Recliner
11	W709835	Recliner-to-backrest bolts
12	-	Outer recliner cover
13	-	Pin-type retainer
14	-	Recline handle
15	-	Screw
16	W709835	Recliner-to-cushion frame bolts
17	-	Safety belt buckle bolt
18	61203	Safety belt buckle
19	-	Screw, power-fold seat motor (2 required)
20	W520112	Seat track-to-cushion frame nuts (6 required)
21	-	Outboard latch release cable
22	-	Inboard latch release cable
23	-	Seat track
24	-	Inboard seat track cover rear screw
25	-	Outer inboard seat track cover
26	-	Screw
27	-	Inner inboard seat track cover
28	-	Screw (3 required)
29	-	Screw (3 required)
30	-	Screw
31	-	Outer outboard seat track cover
32	-	Outboard seat track cover rear screw
33	-	Inner outboard seat track cover
34	-	Spring assist strut
35	-	Power-fold seat motor

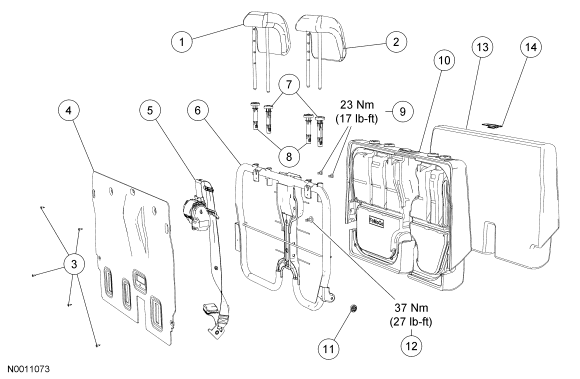

Fig 4: Exploded View Of Second Row Seat 60 Percent Backrest - Freestyle With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	611A08	LH head restraint
2	611A08	RH head restraint
3	56910	Screws (5 required)
4	60508	Backrest hard back panel
5	600A38	Safety belt retractor and safety belt buckle assembly
6	613A38	Backrest frame
7	610A16	LH inner/RH outer head restraint guide
8	610A16	LH outer/RH inner head restraint guide
9	W504760	Inner safety belt guide bolts (2 required)
10	66801	Backrest foam pad
11	613B44	Pivot grommet
12	W704400	Safety belt retractor bolt
13	66601	Backrest trim cover
14	611B90	Outer safety belt trim guide

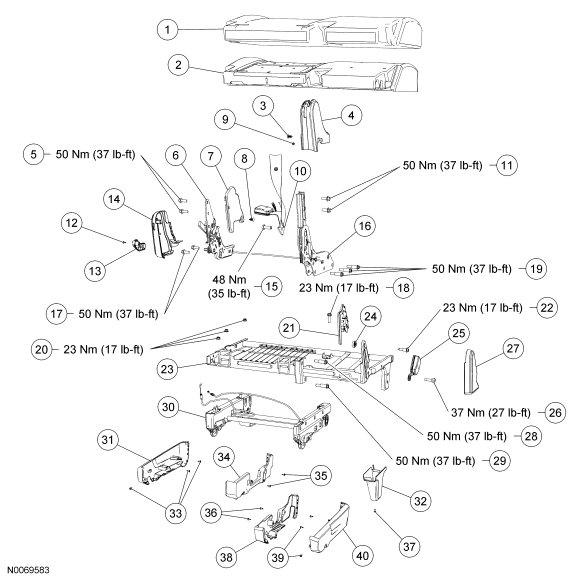

Fig 5: Taurus X Rear Seat Cushion, Second Row, 60 Percent With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	63805	Cushion trim cover
2	63841	Cushion foam pad
3	W705589	Pin-type retainer
4	61348	RH recliner cover
5	W709835	LH recliner-to-backrest bolts (2 required)
6	60593	LH recliner
7	67460	LH recliner inner cover
8	W705589	Pin-type retainer
9	56910	Screw
10	600A38	Safety belt buckle and safety belt anchor assembly
11	W709835	RH recliner-to-backrest bolts (2 required)
12	W705274	Screw
13	617D35	Manual recline handle
14	67460	LH recliner outer cover
15	-	Safety belt buckle and safety belt anchor assembly-to-inboard recliner bolt (part of 600A38)
16	60593	RH recliner
17	W709835	LH recliner-to-cushion frame bolts (2 required)
18	W709835	Cushion frame-to-riser bolt
19	W709835	RH recliner-to-riser bolts (3 required)
20	W520112	Cushion frame-to-riser nuts (3 required)
21	61349	Inboard pivot cover
22	605C12A	Pivot bolt
23	63161	Cushion frame
24	613B44	Pivot grommet
25	60044	Safety belt buckle
26	-	Safety belt buckle bolt (part of 60044)
27	61349	Outboard pivot cover
28	605C12B	Cushion frame yoke-to-RH recliner bolt
29	605C12B	Cushion frame yoke-to-riser bolt
30	606A50	Riser
31	63389	Riser LH outer cover
32	63388	Stationary foot cover
33	56910	Screws (3 required)
34	63387	Riser LH inner cover
35	56910	Screws (2 required)
36	56910	Screws (2 required)
37	56910	Screw
38	63386	Riser RH inner cover
39	56910	Screws (3 required)
40	63388	Riser RH outer cover
