Decklid Release Switch Connector

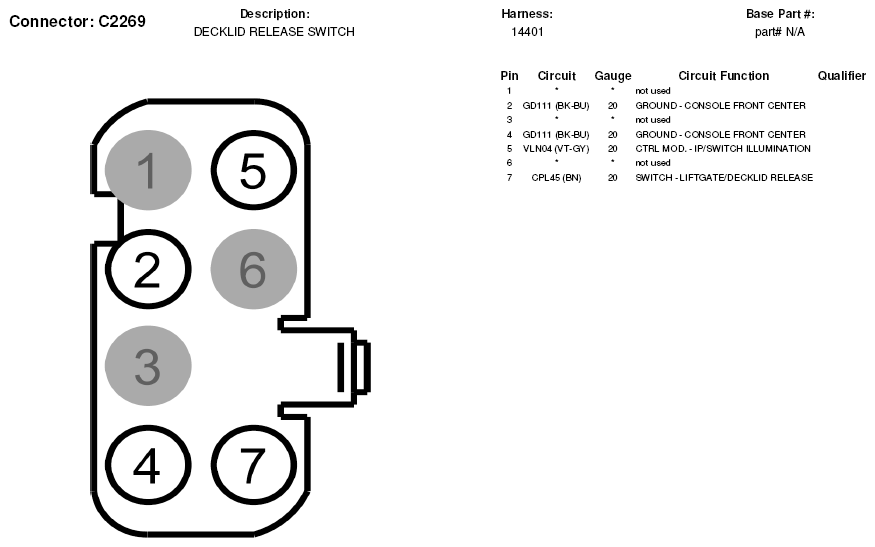

Fig 1: Decklid Release Switch Connector End View (C2269)

G05603464
