Fuel Tank Pressure Transducer Sensor Connector

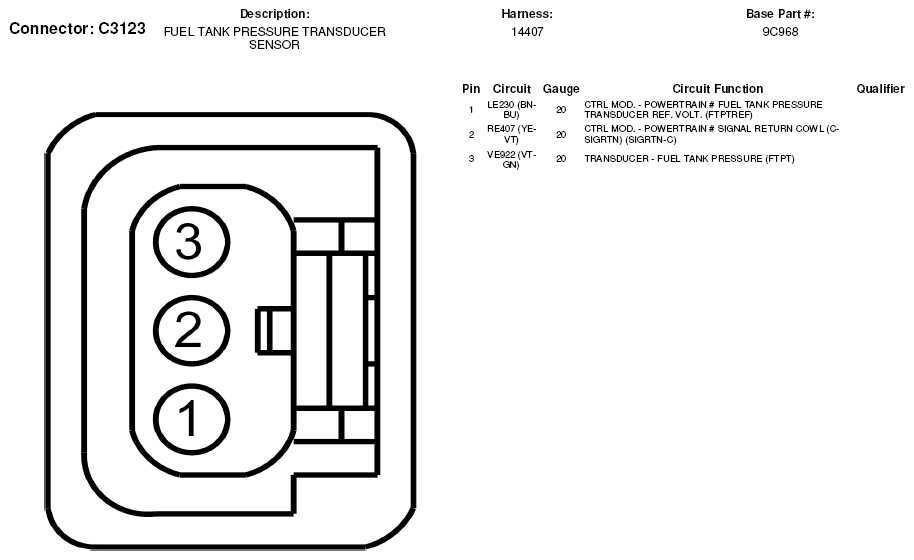

Fig 1: Fuel Tank Pressure Transducer Sensor Connector End View (C3123)
