Subwoofer Speaker: Notes

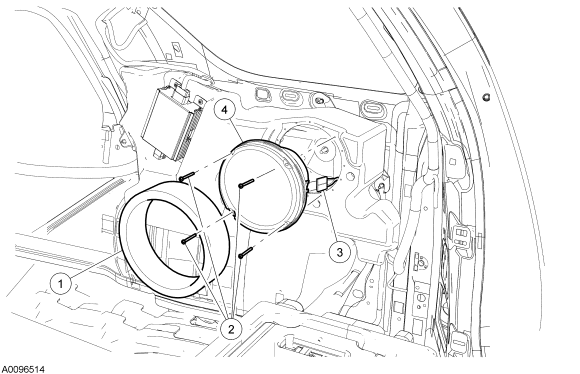

Fig 1: Exploded View Of Subwoofer Speaker
GF0018210Courtesy of FORD MOTOR CO.
Item Part Number Description
1 18C804 Speaker cushion
2 136A10 Subwoofer speaker screws (4 required)
3 14A005 Subwoofer speaker electrical connector
4 150302 Subwoofer speaker
