Exterior Rear View Mirror Switch Connector

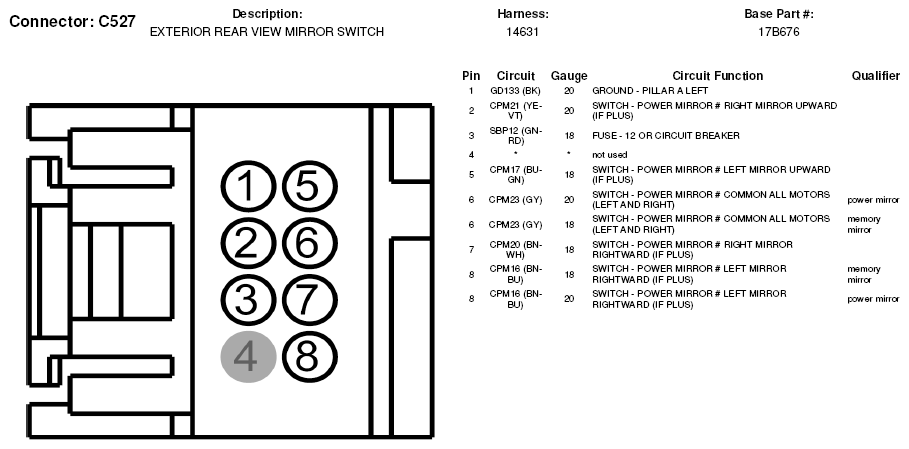

Fig 1: Exterior Rear View Mirror Switch Connector End View (C527)
