Disc Brake System: Service and Repair

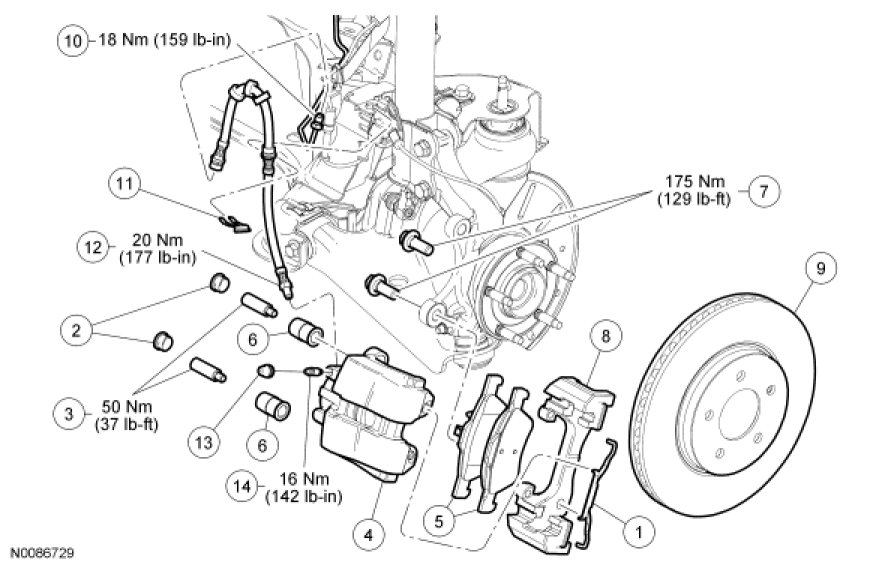

Disc Brake System - Exploded View









1. For additional information, refer to the procedures.
