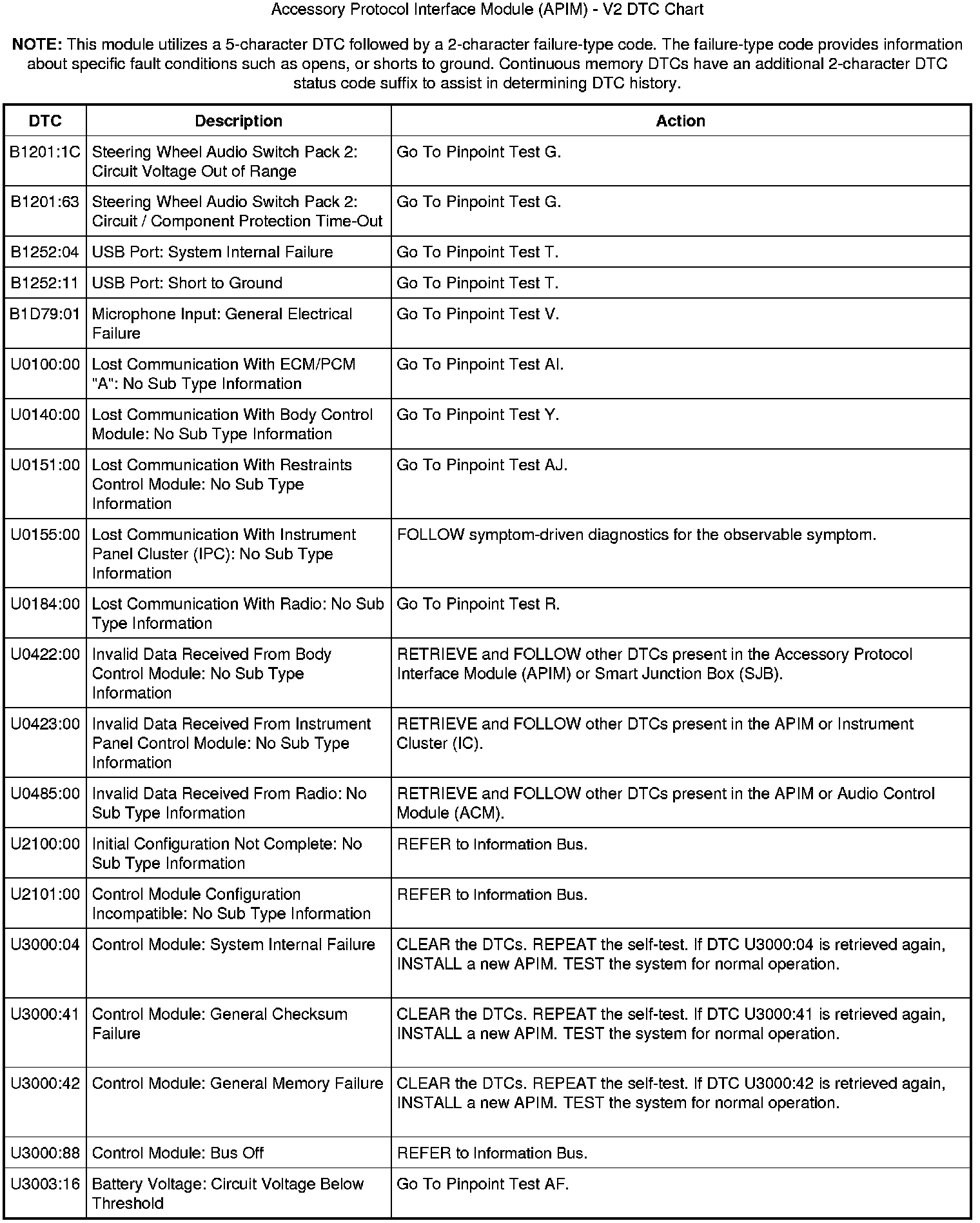

Accessory Protocol Interface Module (APIM) - V2 DTC Chart




Information and Entertainment System

DTC Charts

B1D79:01-B1252:11 / U0100:00-U3003:16:





U3003:17:
