Disassembled Views
Transmission
Disassembled Views

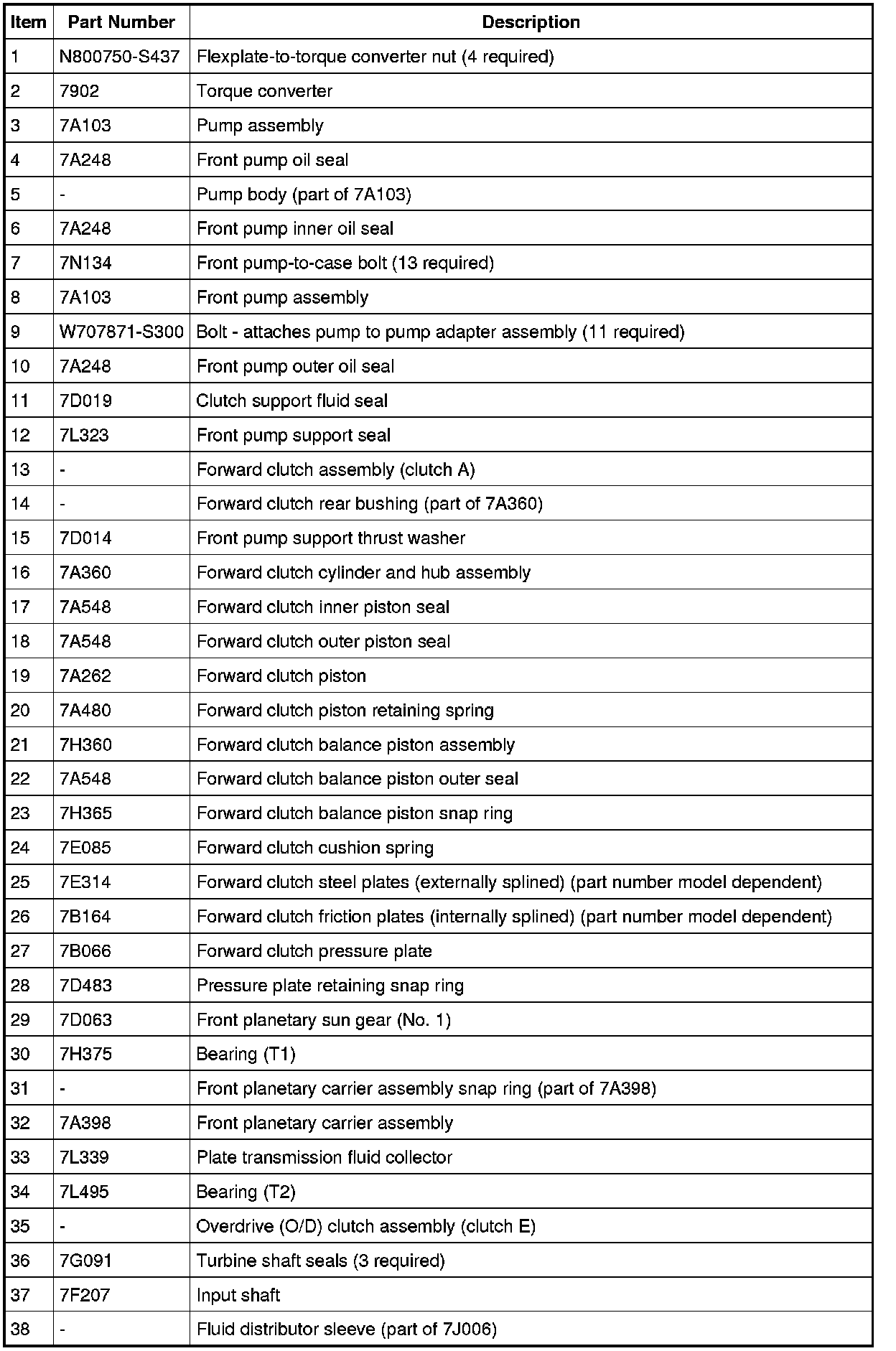

Transmission Disassembled View (Part 1):

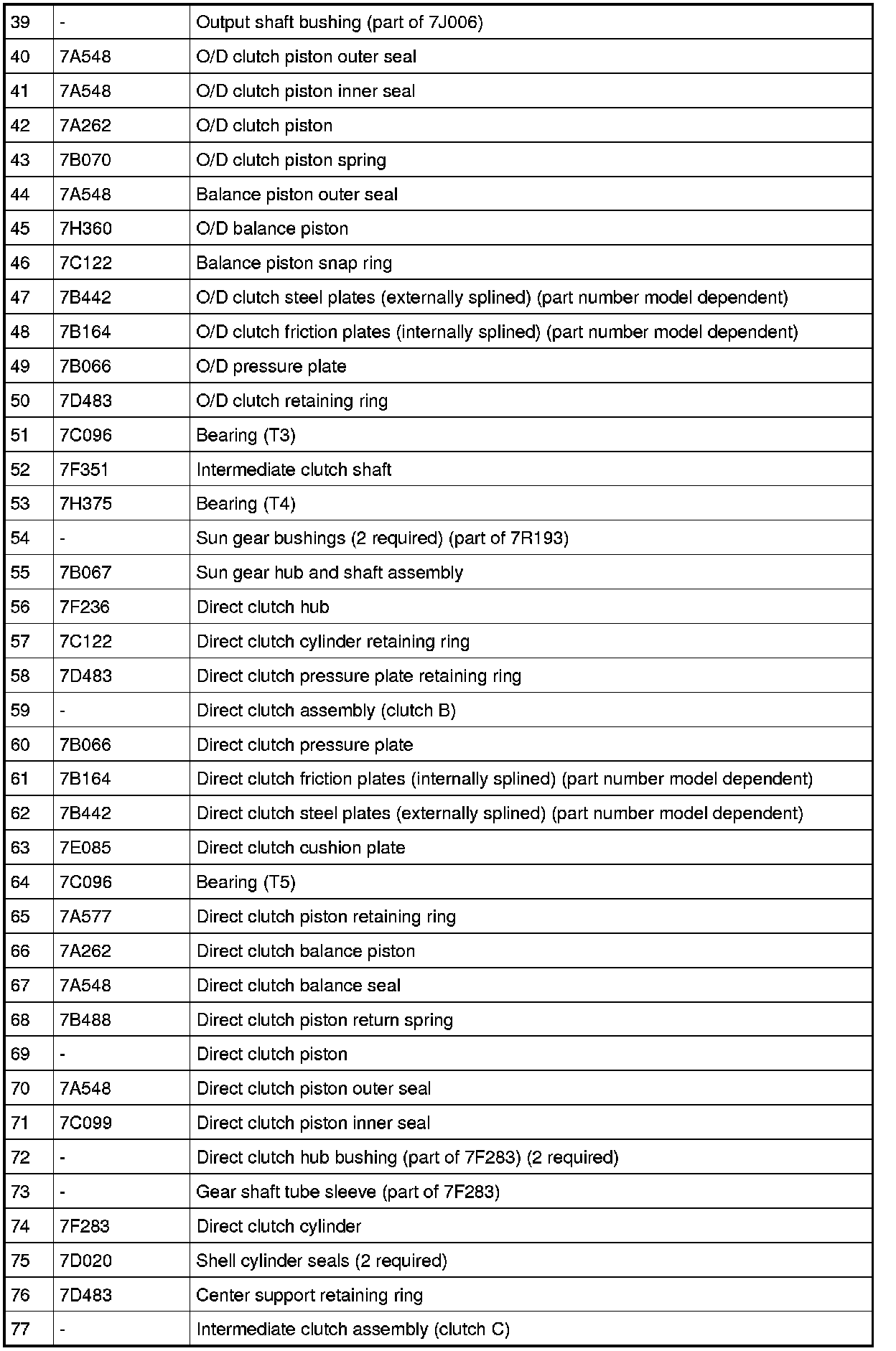

Transmission Disassembled View (Part 2):

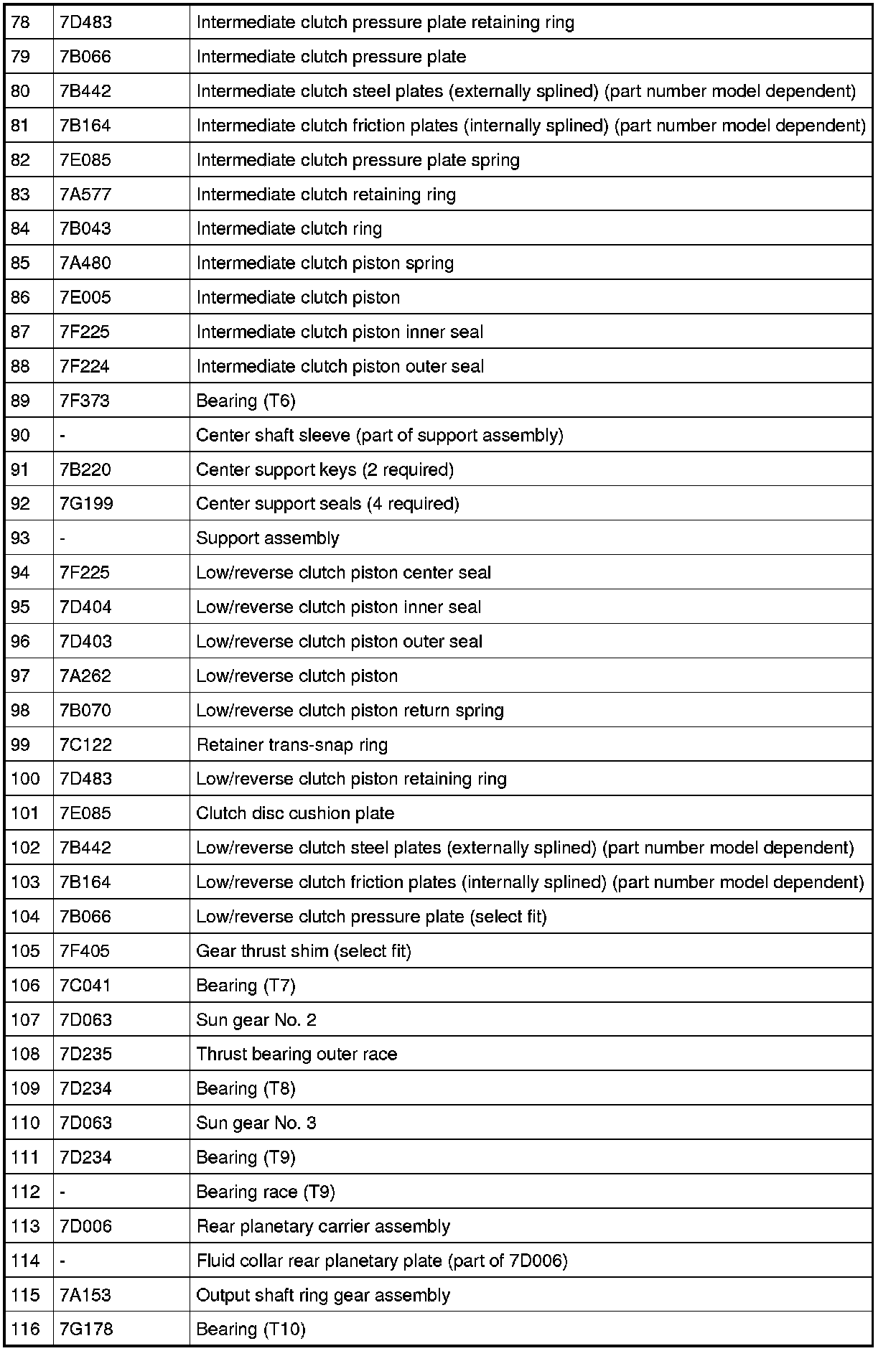

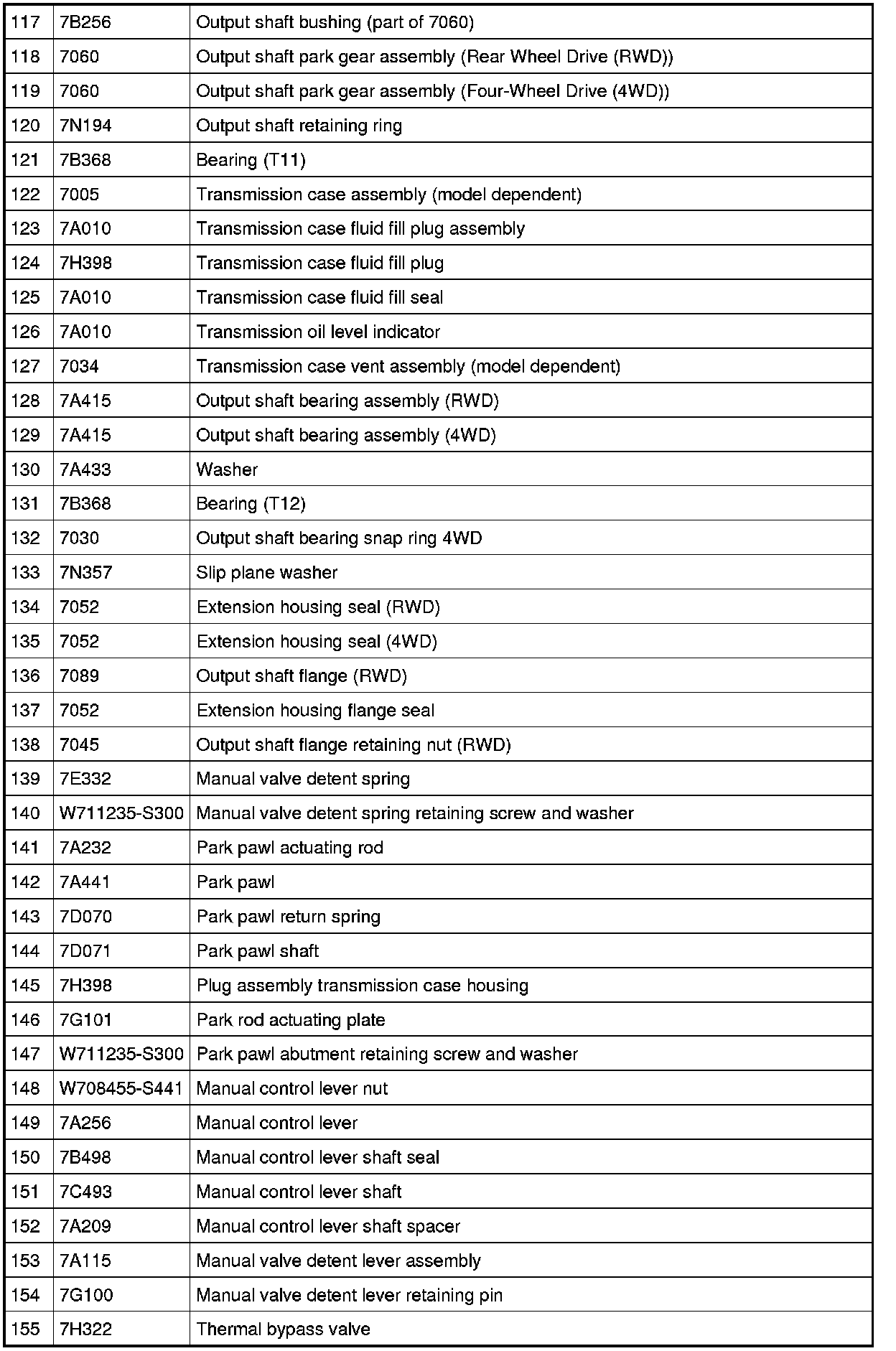

Transmission Disassembled View (Part 3):
