Smart Junction Box Connector End View - C2280C

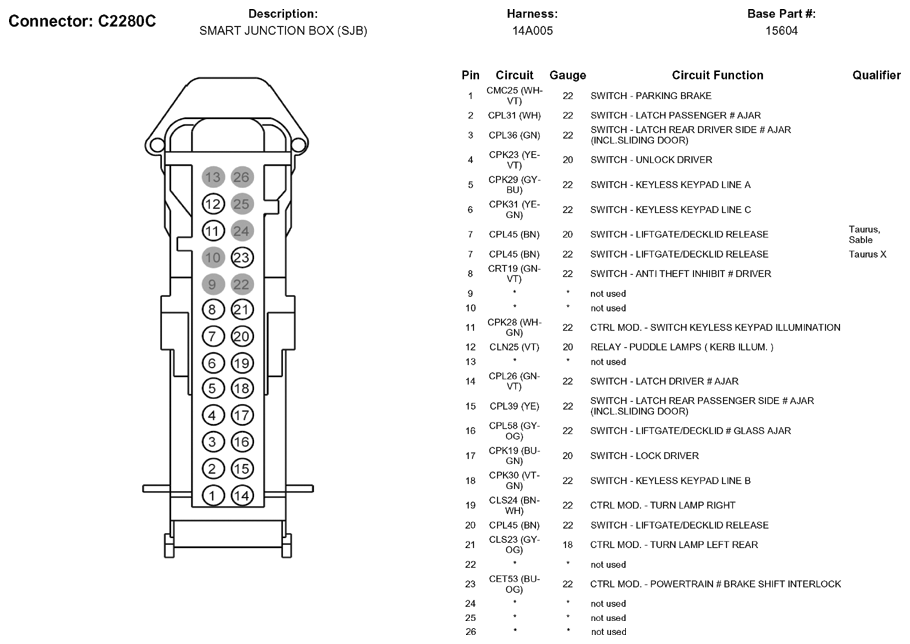

Fig 1: Smart Junction Box Connector End View (C2280C)
Courtesy of FORD MOTOR CO.
