Headlamp Assembly: Notes

WARNING: This page is about a different car, the 2008 Mercury Sable, 2008 Ford Taurus X, and 2008 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

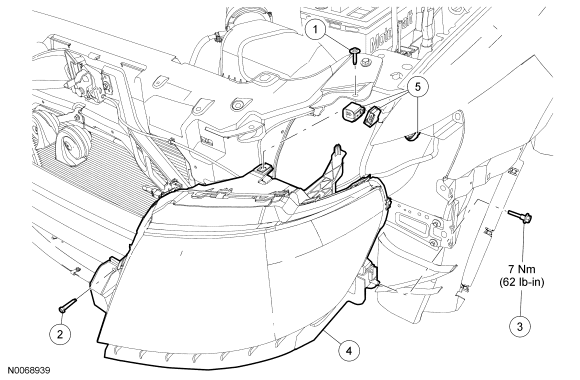

Fig 1: Headlamp Assembly - Taurus With Torque Specification

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W711158	Top headlamp assembly bolt
2	W711158	Front headlamp assembly bolt
3	W712414	Side headlamp assembly bolt
4	13005/13006	Headlamp assembly (RH/LH)
5	-	Headlamp assembly electrical connectors (part of 14290)

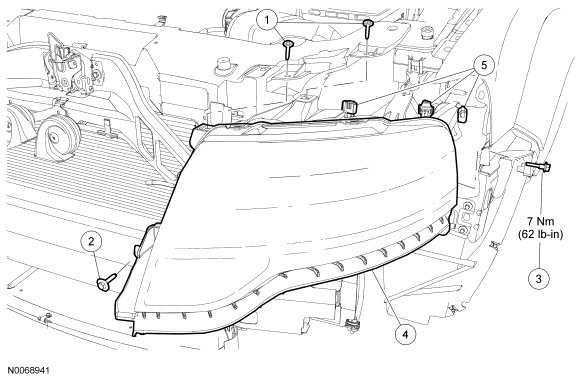

Fig 2: Headlamp Assembly - Sable With Torque Specification

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W711158	Top headlamp assembly bolts (2 required)
2	W711158	Front headlamp assembly bolt
3	W712414	Side headlamp assembly bolt
4	13005/13006	Headlamp assembly (RH/LH)
5	-	Headlamp assembly electrical connectors (part of 14290)

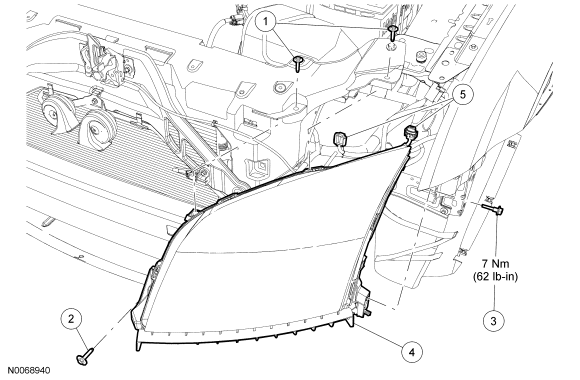

Fig 3: Headlamp Assembly - Taurus X With Torque Specification

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W711158	Top headlamp assembly bolts (2 required)
2	W711158	Front headlamp assembly bolt
3	W712414	Side headlamp assembly bolt
4	13005/13006	Headlamp assembly (RH/LH)
5	-	Headlamp assembly electrical connectors (part of 14290)
